| Categories | Cable Accessories |
|---|---|
| Brand Name: | SUNBOW |
| Model Number: | SB-WRSFM |
| Certification: | UL E360625 |
| Place of Origin: | Shenzhen, China |
| MOQ: | 100 pcs each size each color |
| Price: | USD0.07-13.4 per PCS |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000000000000PCS per month |
| Delivery Time: | 5~10 days upon order quantity |
| Packaging Details: | standard carton packing |

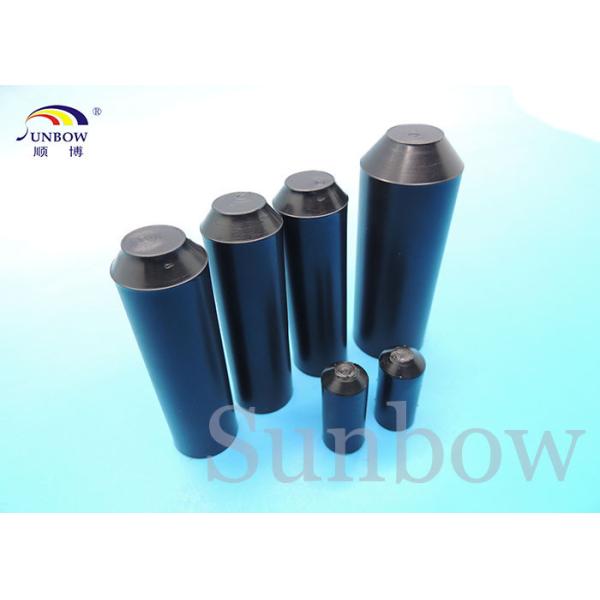

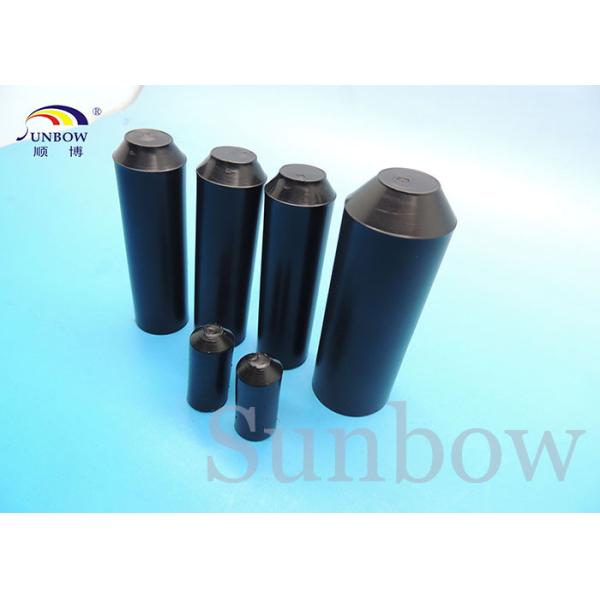

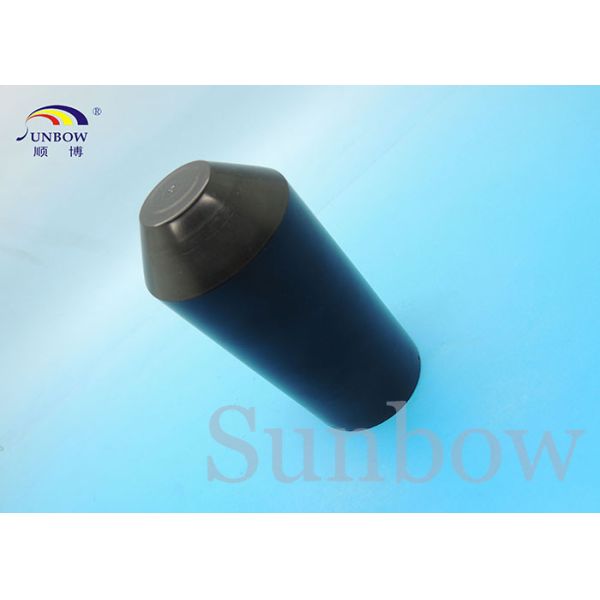

| Product name: | Polyolefin Adhesive lined Heat Shrink End Caps Cable Accessories |
| Color: | Black |
| Size: | 11mm - 250mm |
| Material: | Polyolefin , Hot Melt adhesive |
| Shrink Ratio: | 2:1 |
| Shrink Temp: | 110~130 C |
| Tensile Strength: | > 13MPa |
Efficient Cable Accessories electrical end caps for Heat Shrink Tubing
Specifically used with Heat Shrink Tubing at the end of Wires and
Cables.
These Heat Shrink End Caps provide an easy and efficient way of sealing, insulating and shielding cable or wire ends.
The ideal heat shrink temperature for the end caps is around 130 C. Applying the heat shrink end cap can be simple and hassle-free. Its always good to make sure the cable or wire is clean and free of debris before you place the heat shrink end cap over the exposed end.
When it comes to durability these end caps rank very high in quality. When looking for that extra protection against damage and moisture, Heat Shrink Cable End Caps is the ideal solution.
Dimension
Size | Size after recovery(mm) | Size as supplied (mm) | Cable sizes(mm) | |||
Size | Inner Diameter | Wall thickness | Inner Diameter | Wall thickness | length | Outer Diameter |
Φ 11 | ≤6.5 | 1.1±0.1 | ≥11 | 0.7±0.2 | ≥22 | Φ6-9 |
Φ 16 | ≤8.0 | 2.5±0.1 | ≥16 | 1.2±0.2 | ≥70 | Φ9-14 |
Φ 20 | ≤8.0 | 2.5±0.1 | ≥20 | 1.2±0.2 | ≥70 | Φ9-17 |
Φ 25 | ≤11 | 2.5±0.1 | ≥25 | 1.2±0.2 | ≥80 | Φ12-22 |
Φ 32 | ≤17 | 2.6±0.1 | ≥32 | 1.5±0.2 | ≥90 | Φ17-27 |
Φ 40 | ≤15 | 2.8±0.1 | ≥40 | 1.5±0.2 | ≥90 | Φ20-35 |
Φ 55 | ≤25 | 2.8±0.1 | ≥55 | 1.5±0.2 | ≥125 | Φ28-45 |
Φ 75 | ≤30 | 3.2±0.1 | ≥75 | 1.8±0.2 | ≥145 | Φ40-65 |
Φ 100 | ≤42 | 3.5±0.1 | ≥100 | 1.8±0.2 | ≥140 | Φ50-90 |
Φ 120 | ≤59 | 3.5±0.1 | ≥120 | 1.8±0.2 | ≥155 | Φ70-110 |
Φ 140 | ≤63 | 4.0±0.1 | ≥140 | 2.0±0.2 | ≥180 | Φ90-130 |
Φ 250 | ≤94 | 4.0±0.1 | ≥250 | 2.0±0.2 | ≥270 | Φ120-240 |
Technical data
Property | Test Method | Standard Value |
Operating temperature | IEC 216 | -45ºC to+105ºC |
Tensile strength | ASTM-D 2671 | ≥13MPa |
Elongation at break | ASTM-D 2671 | ≥300% |
Tensile strength after aging | ASTM-D-2671/120ºC,168hrs | ≥10MPa |
Elongation at break after aging | ASTM-D-2671/120ºC,168hrs | ≥240% |
Dielectric strength | IEC 243 | ≥15kV/mm |
Volume resistance | ASTM-D-2303 | ≥1×1013Ω.cm |
Dielectric constant | IEC 250 | 3.0 |
Radial shrinkage | - | ≥50% |
Eccentricity | ASTM-D-2671 | ≤35% |
Low Temperature Flexibility | ASTM-D-2671 | -40ºC, 4hrs, no cracking |
Minimum shrink temperature | - | 90ºC |
Minimum fully recovered temperature | - | 130ºC |
