| Categories | Cable Accessories |
|---|---|
| Brand Name: | SUNBOW |
| Model Number: | SB-WCST |
| Certification: | ISO9001:2008 |
| Place of Origin: | Shenzhen, China |
| MOQ: | 10 pcs each size each color |
| Price: | USD 1.0~100 per pcs |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000000PCS per month |
| Delivery Time: | 5~8 working days |
| Packaging Details: | standard SUNBOW packing |
| Product name: | Silicone Cold Shrink Tubing Shrinkable Cold Cable Accessories Tubes |
| Color: | Grey |
| Size: | 20mm-110mm |
| Brand: | SUNBOW |
| Raw material: | liquid silicone rubber |
| Certitificate: | TS16949, ISO9001:2008 |
| Length: | Selectable |

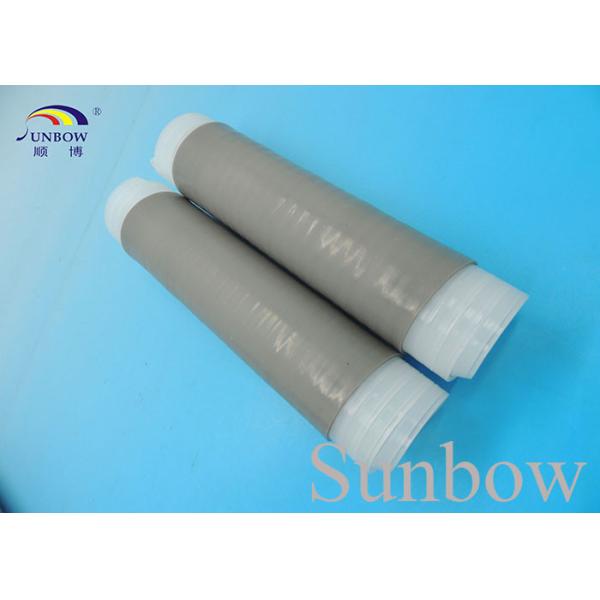

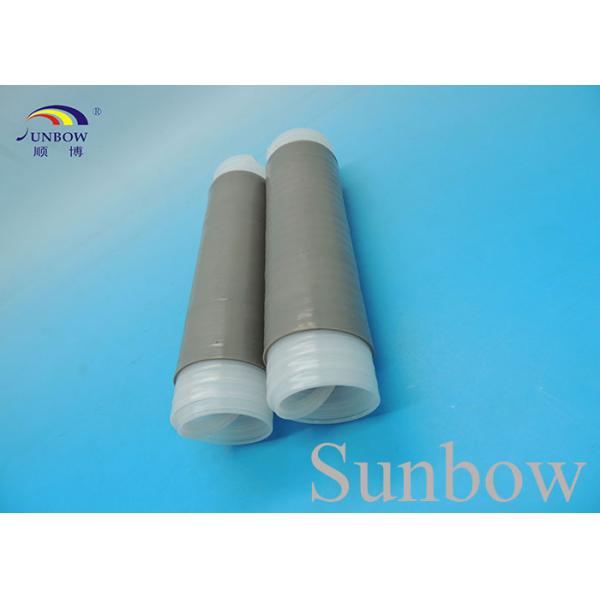

Silicone Cold Shrink Tubing shrinking cap , Cable Accessories Grey
Silicone Cold Shrink
Silicone is a semi-organic elastomer with outstanding resistance to
extreme temperatures with corresponding resistance to compression
set and retention of flexibility.
Silicone elastomers provide excellent resistance to ozone, oxygen and moisture. Low physical strength and abrasion resistance combined with high friction properties limit silicone to static seal applications.
Silicone utilizes a flexible sioxane backbone rather than a carbon backbone like many other elastomers and has a very low glass transition temperatures. Silicone cold shrink has extreme temperature properties and excellent compression set resistance. It is also is very clean, has low odor and high flexibility.
Sunbow Silicone Cold Shrink Tube Specification
| ID* as Supplied (Min) /mm | ID* after Recovered (Max) /mm | Lengtd after Recovered(Nom)/mm | Thickness after Recovered (±10%)/mm | Application Range/mm |
| 20 | 8 | 80 ~ 450 | 2±0.2 | Ø10 ~ Ø 16 |
| 28 | 10 | 80 ~500 | 2.5±0.2 | Ø12~ Ø 20 |
| 32 | 12 | 80 ~490 | 2.5±0.2 | Ø13.2 ~ Ø22.4 |
| 32 | 13 | 80 ~490 | 2±0.2 | Ø14 ~ Ø24 |
| 35 | 16 | 80 ~450 | 2±0.2 | Ø18 ~ Ø29 |
| 40 | 18 | 80 ~450 | 2±0.2 | Ø20 ~ Ø34 |
| 47 | 21 | 80 ~470 | 2±0.2 | Ø23 ~ Ø41 |
| 53 | 25 | 80 ~500 | 2±0.2 | Ø27~ Ø47 |
| 65 | 26 | 80 ~500 | 3±0.2 | Ø28~ Ø50 |
| 70 | 30 | 80 ~500 | 3±0.2 | Ø32 ~ Ø60 |
| 80 | 31 | 80 ~500 | 3±0.2 | Ø33 ~ Ø72 |
| 80 | 36 | 80 ~500 | 3±0.2 | Ø38 ~ Ø72 |
| 88 | 37 | 80 ~500 | 3±0.2 | Ø39 ~ Ø80 |
| 104 | 42 | 80 ~500 | 3±0.2 | Ø44 ~ Ø94 |
| 110 | 38 | 80 ~420 | 6±0.2 | Ø40 ~ Ø100 |
| 110 | 60 | 80~420 | 6±0.2 | Ø62 ~ Ø100 |
Silicone Cold Shrink Tubing Shrinkable Cold Cable Accessories Tubes


|
|
