| Categories | Silicone Fiberglass Sleeving |
|---|---|
| Brand Name: | SUNBOW |
| Model Number: | SB-SGS-40 |
| Certification: | UL, REACH, ROHS, ISO9001:2008 |
| Place of Origin: | Shenzhen China |
| MOQ: | 2000 meters |
| Price: | USD |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 9,000,000meters/month |
| Delivery Time: | 7~10 working days |
| Packaging Details: | Sunbow standard packing |

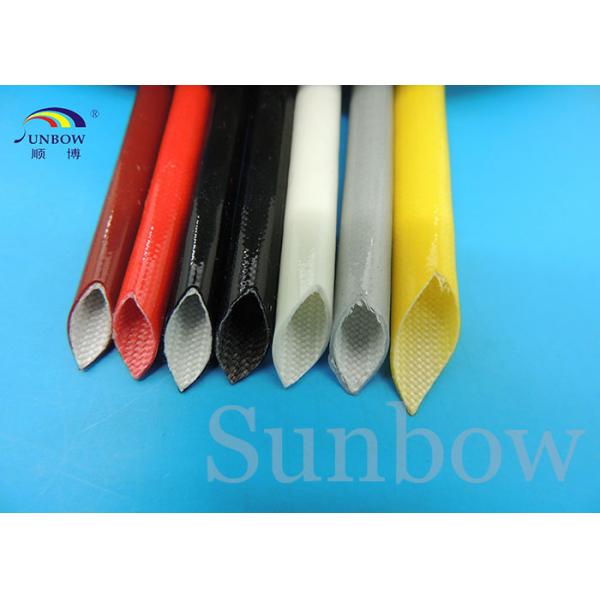

| Product Name: | Silicone Coated Fiberglass Electrical Insulation sleeving Silicone Rubber Fiberglass Sleeving |
| Material: | Silicone rubber , non-Alkali fiberglass |
| Color: | White, others could be customized |
| UL NO.: | E333178 |
| Certificates: | TS16949, UL, REACH, ROHS, ISO9001:2008 |
| Size Range: | 0.5~50 mm |
| Application: | wire harness, AC motor, heater, bus bar, component leads, assemblies of electric components etc. |
| Working Temperature: | 200 degrees |
There are two types of High temperature available from Sunbow Insulation:
Type A:Inner fiberglass braided outside silicone rubber---coating the outside tightly braided fiberglass sleeves all over with silicone resin to form a layer of film and solidify it in high temperature.(SB-SGS-40, SB-SGS-70)
Type B:Inner silicone rubber outside fiber glass braided---tightly braiding the inner silicone rubber tubing with fiber glass sleeves.(SB-SRS-70)
FAQ:
Are you a trade company or a manufacturer?
We are SGS,UL , ROHS, TS16949, ISO9001:2008 approved manufacturer specialized in Insulation materials.OEM & ODM service are available.
What is your MOQ?
Our minimum order quantity is 1000 Meters.
What is your delivery date?
The delivery date is about 10~15 days after receipt of payment(also depend on order quantity).
What is your payment terms?
T/T 100% in advance.
Can you send free samples?
Yes, free samples are available; you just need to pay the shipping cost.
Features:
a. Continuous working temperature: -10℃ +200℃ (Peak:250 ℃)
b. Dielectric strength level: 1.5KV, 2.5KV, 4KV, 7KV, 10KV
c. Good mechanical resistance
d. Smooth, very flexible, watertight
e. Color: White as the standard color, Red, yellow, green, blue, brown, gray, orange, purple are available.
Other Color could be custom made.
f. Dimension range: Φ0.5 ~Φ50 mm, different wall thickness are subject to inquiry.



|
|
