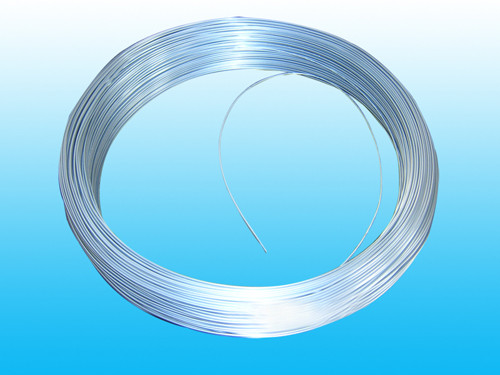

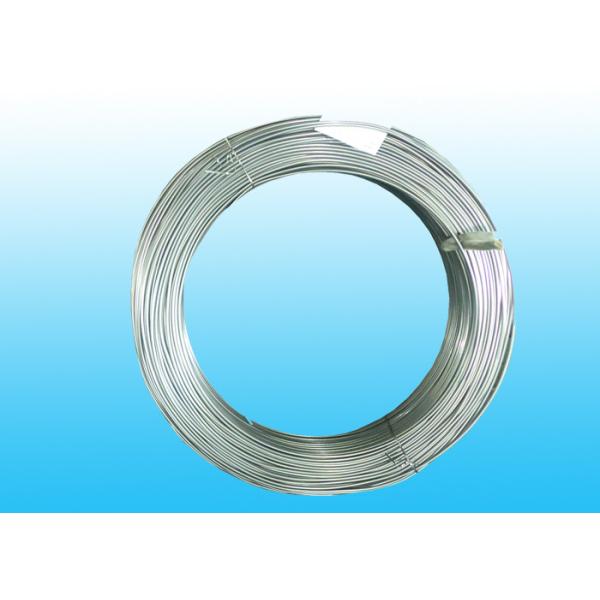

8*0.6mm Zn Coated steel with the standard of GB/T24187-2009

8*0.6mm Zn Coated steel with the standard of GB/T24187-2009

outer diameter:8mm
wall thickness: 0.6mm
low carbon steel strip

1.materials:low carbon steel strip

2.main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3.outer diameter:8mm

4.wall thickness: 0.6mm

5. standard: GB/T 24187-2009

6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment Management System

7.surface treatment: electric coating Zn and hot galvanized

8. features:soft and easy to bend

9.tensile strength: more than 290 Mpa

10.yield strength:more than 180 Mpa

11.elongation:more than 25%

12. place of origin: changzhou city, jiangsu province, China

13. port of loading:shanghai, China

14. package:plastic cloth with coils, wooden boxes, iron pallets etc

15. delivery:as contract

16.payment terms:T/T,L/C etc

17. supply ability:40000 ton per year

18. brand:WUSHUN

Applications:

Bundy tube is an important part of refrigeration system ,mainly used in refrigerator, freezer ,condenser, evaporator etc,it is made by material low carbon steel strip.

Competitive Advantage:

Normally used on condenser and evaporator in refrigerator etc ,main material is steel strip,than coating surface or plain .price is low ,quality is good and competitive price ,according to the national standard.

CHANGZHOU WUJIN SHUNDA PRECISE STEEL TUBE CO.,LTD.

Changzhou Wujin Shunda Precise Steel Tube Co., Ltd., is located in Lijia Town, Changzhou City. Since its foundation in 1996, over years of efforts, the company has become one of the dominant manufacturers in producing steel pipes, evaporators and condensers used in refrigerators in China. This company covers an area of 70000 square meters (construction area) and become one of the dominant manufacturers producing the most complete product category and specifications in China. The company can produce 50000 tons of steel pipe of various types, and 10 million sets of evaporators and condensers every year. Its Wu Shun brand including the precise single welded steel pipe (including single copper welded steel pipes, galvanized single pipes, bright annealed pipes), double-wall pipes, compressor pipes, evaporators and condensers. It supplies quality and reliable products to many well-known refrigerator/freezer and compressor brands in China and abroad. The company has received the certification of ISO9001 quality management system and ISO14001 environmental management system.

Our company leads the direction of industry development. It is one of the major participators in preparing the national standard "GB/T24187-2009" Cold drawing precise single welded steel pipe and "GB/T34020.1-2017" of double wall copper-brazed steel tubes - Part 1 and also participates in drafting the metallurgical industry association standard YB/T4164-2007 Double brazed steel pipe industry, complementing the national standards and industry standard for steel pipes used in refrigerators. In recent years, our company has made innovations independently and constantly, and successively won the honors of New and High Technology Enterprises in Jiangsu Province, Private Technology Enterprises in Jiangsu Province, and Private Technology Enterprises in Changzhou City.
