2 Convolutions Industrial Air Springs Firestone W01-M58-6183 YORK 506324/01 Replcement

Double Convoluted Industrial Air Springs Firestone W01-M58-6183 YORK 506324/01 Replcement

2B6183 Specifications and Technical Parameters

1. Mounting threads on Top plate Qty: 2pcs×M8×1.25

The screw center distance: 89mm
2. Bottom cover plate screw (nut) teeth Qty: 2pcs×M8×1.25
The screw center distance: 89mm
3. Top cover plate diameter: 160mm
4. Bottom cover plate diameter: 160mm
5. Min Height: 81mm

6. Air inlet: 1/4BSPG, Offset, 45mm
7. Bumper block: Without
8. Belt loop/belt loop with belt loop: with one belt loop

Cross Reference

Firestone Style 20F2

Air spring supplier/competitor: Firestone
Supplier//competitor: W01-M58-6183; W01 M58 6183; W01M586183; WO1-M58-6183; WO1 M58 6183; WO1M586183; w01-m58-6183; w01 m58 6183; w01m586183

Air spring supplier/competitor: YORK

Supplier/competitor number: 506324/01

Our standard two ply air spring bellows is actually made up of four layers

a. An inner liner of calendered rubber.
b. One ply of fabric reinforced rubber.
c. A second ply of fabric-reinforced rubber (with the cords at a specific bias angle to the first ply).
d. An outer cover of calendered rubber

The air spring does not need to be repaired or specially maintained in normal use. It is only necessary to regularly flush the metal parts (piston, cover plate) that are prone to sediment accumulation when cleaning the vehicle, without using any detergent. Damaged airbags cannot be repaired, do not repair any damaged airbags. During installation or maintenance, if the airbag comes into contact with solvent, hydraulic oil or grease, please wipe off these substances with a dry cloth to prevent the rubber material of the airbag from swelling due to soaking.

Convoluted Air Spring

1. AIR INLET
1/4 BSP parallel is standard. 3/4 BSP parallel is also available for most parts.
2. BLIND NUT
M8 x 1.25 — 6H x 15 (two or four per each plate depending on part size). Used for mounting the part.
3. UPPER BEAD PLATE
Permanently crimped to bellows to form an airtight assembly which allows for leak testing before the unit leaves the factory. Zinc/chromate plated for rust protection.
4. GIRDLE HOOP
Wire wound type shown, molded into the bellows.
5. BELLOWS
Wall gauge is approximately 6 mm.
6. LOWER BEAD PLATE
Usually the same as upper bead plate, except without air inlet

Application

ROBOTIC COUPLING

CONVEYOR END STOP

MOUNTAIN/TRAIL BIKE

SHOCK ABSORBER TEST SYSTEM

SCREENING MACHINE COVER CLAMP

PIPE CRAWLER

DELICATE ELECTRONIC EQUIPMENT

VIBRATING SCREEN

SHEET WELDING CLAMP

SWASH PLATE MOTOR

PERFECT BOUND MAGAZINE CUTTER

WAVE POWER MODULE

CHECK VALVE LAPPING

SELF ALIGNING DEVICE

AIR BLAST GENERATOR

SOLAR TRACKER

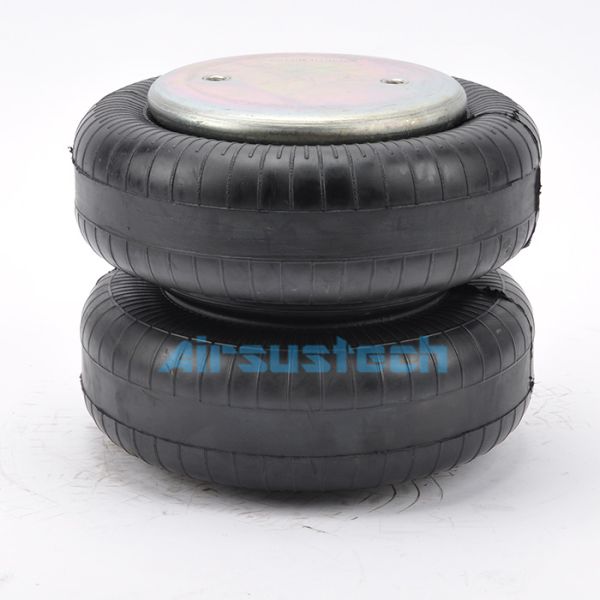

The picture of AIRSUSTECH Air Bag
