2.0mx3.5m Yokohama Rubber Fender Marine Pneumatic Berthing Jetty

Categories Yokohama Rubber Fender
Brand Name: DockFender
Model Number: DF-2.0Mx3.5M
Certification: ISO17357-1:2014
Place of Origin: CHINA
MOQ: 1 Piece
Price: USD200-1200
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 520 PCS Per Month
Delivery Time: 5 Work Days
Packaging Details: Pallet, Wooden Case
Product Name: 2.0Mx3.5M Marine Rubber Yokohama Pneumatic Fender Berthing Jetty
Material: High Performance Natural Rubber
Standard: ISO 17357-1:2014
Size: D0.5-4.5M, L1.0-12.0M
Color: Black or as required
Design: Custom Design
Logo: Print / Debossed / Embossed / Debossed With Coloring
Lead Time: 5-10 days
Packing: Wooden Pallet
Delivery: By Sea, Air, Express
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

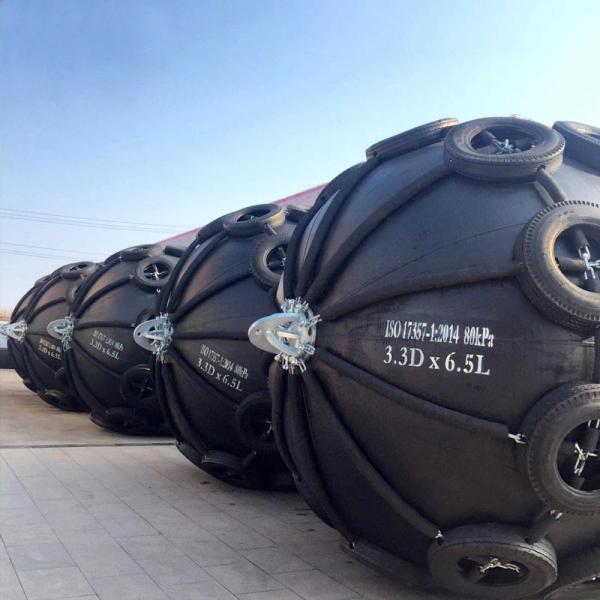

2.0mx3.5m Yokohama Rubber Fender Marine Pneumatic Berthing Jetty

2.0Mx3.5M Marine Rubber Yokohama Pneumatic Fender Berthing Jetty


Description


Yokohama marine fenders are ideal for permanent and semi-permanent port applications where there is a solid wharf structure or a suitable support frame. Because pneumatic marine fenders are easy to install, they can be quickly redeployed to wherever they are needed. Pneumatic marine fenders can also be used as an auxiliary protection. They can also be used for special ships when permanent fixed fenders are not suitable. They are also widely employed in ship-to-ship transfer operations.

Yokohama fenders provide the required energy at a given diameter and pressure level. The large diameter hull and structure maintain a safe gap, and its low reactivity and large contact area make them ideal for soft boats such as bulk carriers, oil tankers and aluminum speedboats.


Specifications


Product Name2.0Mx3.5M Marine Rubber Yokohama Pneumatic Fender Berthing Jetty
Brand NameDockFender
Model NumberDF-2.0Mx3.5M
MaterialHigh Quality Natural Rubber
ShapeCylindrical
StandardISO17357-1:2014, PIANC2002
Initial Pressure50kPa & 80kPa
Test Pressure250kPa
Energy Absorption64-6633 kNm
Reaction Force6-7551 kN
ColorBlack
LogoWelcome
ApplicationPort, Dock, Quay, etc

Fender SizeInitial Pressure 50kPa
Performance Data
Initial Pressure 80kPa
Performance Data

Diameter x

Length
[mm]

Reaction Force
/ kN
Energy Absorption
/ kNm
Hull Pressure
at GEA
/ kN / m2
Reaction Force
/ kN
Energy Absorption
/ kNm
Hull Pressure
at GEA
/ kN / m2
500 x 1,000664132885174
600 x 1,0008741261198166
700 x 1,5001713713524180177
1,000 x 1,5001823212223945160
1,000 x 2,0002574513233863174
1,200 x 2,0002976312639088166
1,350 x 2,500427102130561142170
1,500 x 3,000579153153761214174
1,700 x 3,000639191128840267168
2,000 x 3,5008753081281,150430168
2,500 x 4,0001,3816631371,815925180
2,500 x 5,5002,0199431482,6531,317195
3,300 x 4,5001,8841,1751302,4761,640171
3,300 x 6,5003,0151,8141463,9612,532191
3,300 x 10,6005,2573,0671586,9074,281208
4,500 x 9,0005,7474,7521467,5516,633192
* Other size can be produced follow client's requirements.

Features


1. Vast energy absorption with low unit surface pressure.

2. Easy to install and low maintenance requirement.

3. Good performance on inclined berthing.

4. Low hull pressures.

5. ISO17357 standard, high performance and quality.


Applications


● Ship-to-Ship (STS),

● Ship-to-Quay (STQ)

● Ship-to-Berthing (STB)

● Large tankers, vessels, docks, harbor wharfs

● Ocean platforms


Advantages


◆ Fully compliant with ISO 17357-1:2014.

◆ Economical, low maintenance.

◆ Proportional increase of energy and reaction.

◆ Original factory, best price.

◆ With excellent oil resistance, heat resistance, anti-aging properties.
