NK 35/30 TAF 354530 Needle Roller Bearings Without Innner Ring Small Clearance

NK 35/30 TAF 354530 Needle Roller Bearings without Innner Ring Small Clearance

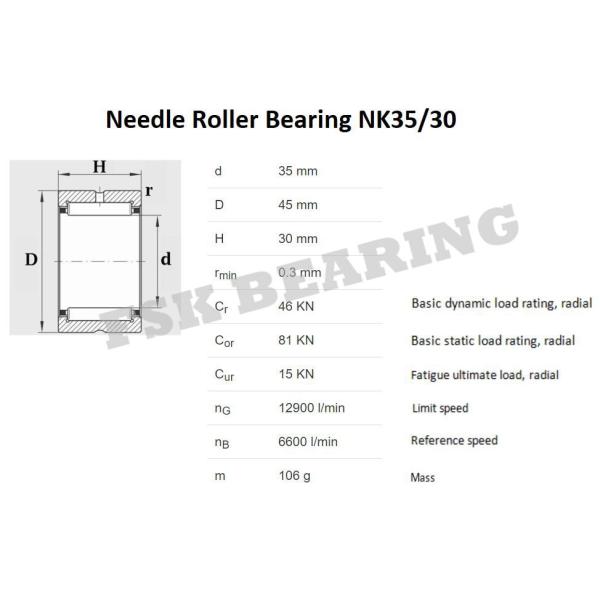

NK 3530 Bearing Specification :

FSK NK Series Bearing We Do:

Bearing Number	d	D	H	m
NK5/10-TV-XL	5 mm	10 mm	10 mm	3.1 g
NK5/12-TV-XL	5 mm	10 mm	12 mm	3.7 g
NK6/10-TV-XL	6 mm	12 mm	10 mm	4.7 g
NK6/12-TV-XL	6 mm	12 mm	12 mm	5.7 g
NK7/10-TV-XL	7 mm	14 mm	10 mm	6.9 g
NK7/12-TV-XL	7 mm	14 mm	12 mm	8.2 g
NK8/12-TV-XL	8 mm	15 mm	12 mm	8.7 g
NK8/16-TV-XL	8 mm	15 mm	16 mm	12 g
NK9/12-TV-XL	9 mm	16 mm	12 mm	10.3 g
NK9/16-TV-XL	9 mm	16 mm	16 mm	12.8 g
NK10/12-TV-XL	10 mm	17 mm	12 mm	10.1 g
NK10/16-TV-XL	10 mm	17 mm	16 mm	13.3 g
NK12/12-XL	12 mm	19 mm	12 mm	12.1 g
NK12/16-XL	12 mm	19 mm	16 mm	15.9 g
NK14/16-XL	14 mm	22 mm	16 mm	20.7 g
NK14/20-XL	14 mm	22 mm	20 mm	25.5 g
NK15/16-XL	15 mm	23 mm	16 mm	21.8 g
NK15/20-XL	15 mm	23 mm	20 mm	26.6 g
F-110601.1	16 mm	23 mm	16 mm	19 g
F-90525	16 mm	23 mm	22 mm	25.6 g
NK16/16-XL	16 mm	24 mm	16 mm	22.4 g
NK16/20-XL	16 mm	24 mm	20 mm	28.4 g
NK17/16-XL	17 mm	25 mm	16 mm	23.7 g
NK17/20-XL	17 mm	25 mm	20 mm	29.8 g
NK18/16-XL	18 mm	26 mm	16 mm	24.9 g
NK18/20-XL	18 mm	26 mm	20 mm	31.4 g
F-110252	19 mm	27 mm	20 mm	35 g
NK19/16-XL	19 mm	27 mm	16 mm	26.1 g
NK19/20-XL	19 mm	27 mm	20 mm	32.2 g
F-45778	19.05 mm	32.26 mm	19.5 mm	61.7 g
F-4650	20 mm	28 mm	16 mm	29.2 g
NK20/16-XL	20 mm	28 mm	16 mm	27 g
NK20/20-XL	20 mm	28 mm	20 mm	33.9 g
NK21/16-XL	21 mm	29 mm	16 mm	28.1 g
NK21/20-XL	21 mm	29 mm	20 mm	35.2 g
NK22/16-XL	22 mm	30 mm	16 mm	30 g
NK22/20-XL	22 mm	30 mm	20 mm	37 g
F-4644	22 mm	35 mm	20 mm	73.3 g
NK24/16-XL	24 mm	32 mm	16 mm	31.9 g
NK24/20-XL	24 mm	32 mm	20 mm	40 g
NK25/16-XL	25 mm	33 mm	16 mm	32.6 g
NK25/20-XL	25 mm	33 mm	20 mm	42 g
NK26/16-XL	26 mm	34 mm	16 mm	34 g
NK26/20-XL	26 mm	34 mm	20 mm	42 g
F-45397.2	27 mm	42.86 mm	25.4 mm	118.7 g
NK28/20-XL	28 mm	37 mm	20 mm	52.2 g
NK28/30-XL	28 mm	37 mm	30 mm	82 g
F-201379	28.58 mm	41.28 mm	25.4 mm	102 g
F-110036	28.58 mm	41.28 mm	25.4 mm	107.9 g
F-45779	28.59 mm	46.04 mm	31.75 mm	198.3 g
NK29/20-TV-XL	29 mm	38 mm	20 mm	50 g
NK29/30-XL	29 mm	38 mm	30 mm	84.3 g
NK30/20-TV-XL	30 mm	40 mm	20 mm	61 g
NK30/30-TV-XL	30 mm	40 mm	30 mm	92.4 g
NK32/20-TV-XL	32 mm	42 mm	20 mm	64 g
NK32/30-XL	32 mm	42 mm	30 mm	102 g
F-52521.2	32.77 mm	49.21 mm	28.58 mm	171.2 g
F-51201	33 mm	48 mm	15 mm	70.9 g
F-45898	33 mm	50.98 mm	20 mm	122.1 g
NK35/20-TV-XL	35 mm	45 mm	20 mm	69.4 g

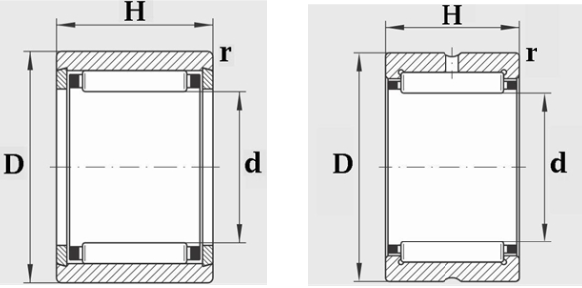

NK 3530 Bearings Drawing :

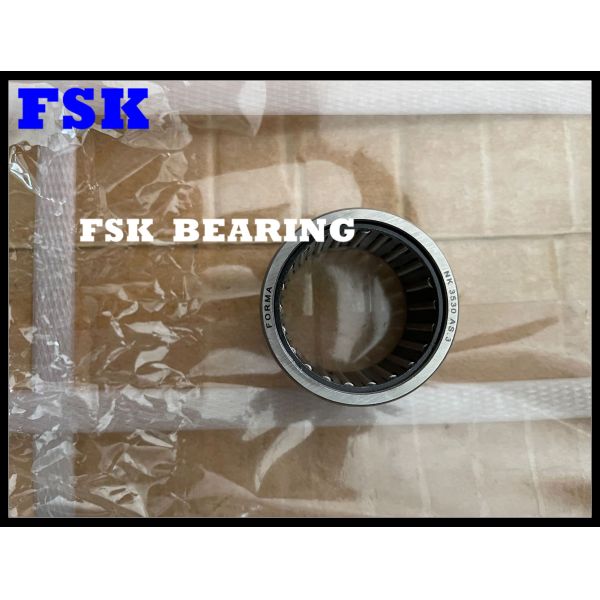

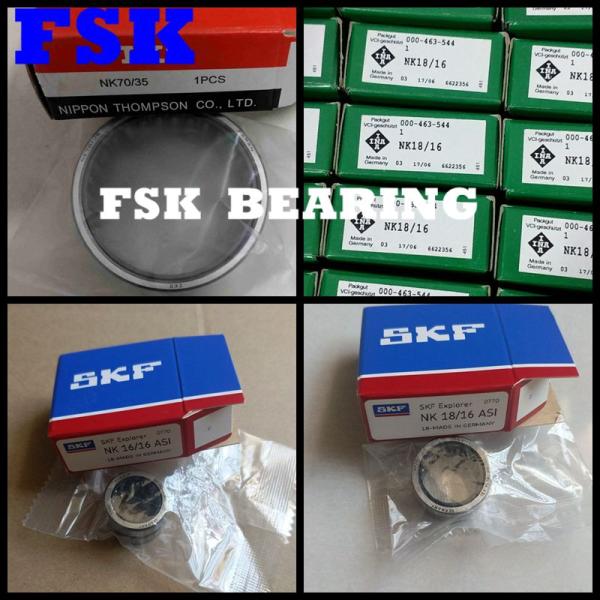

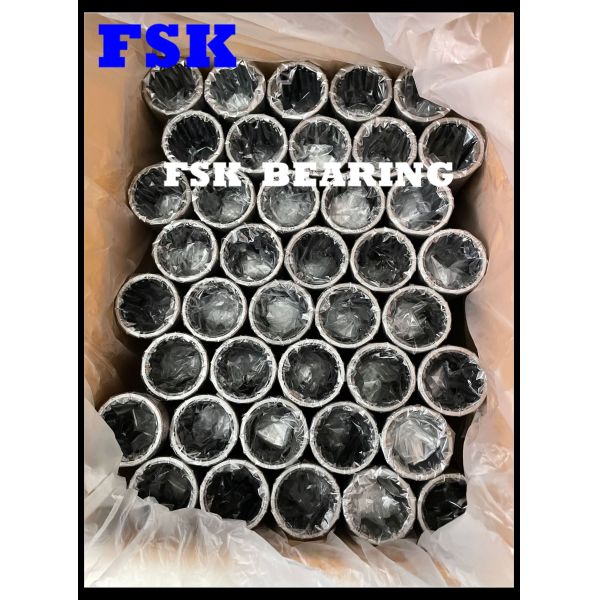

NK 3530 Bearings Detailed Pictures :

About FSK Bearing Company:

Advantage :
1. Low friction
2. Wear resistant
3. Easy replacement
4. Minimum lubrication
5. Requires little attention
6. Running in not required
7. Dimensions relatively small
8. No scraping required to fit shaft

Our Service :
1. Highest quality and most competitive price----we are the only one manufacture who adopts import raw materials. Low bad rates, is just 0.1%. It is amazing, and with cheap price and guaranteed quality.
2. Delivery fast -----Goods be sent out within 3 to 7 days based on order quantity.
3. Professional-----We are special in source and sells, as development, methods, conjugations, and handling.
4. Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.

NK 35/30 TAF 354530 Needle Roller Bearings without Innner Ring Small Clearance​, Get Cheap Price from China Roller Bearing Factory Now !
