| Categories | Pneumatic Solenoid Valves |
|---|---|
| Brand Name: | FESTO |

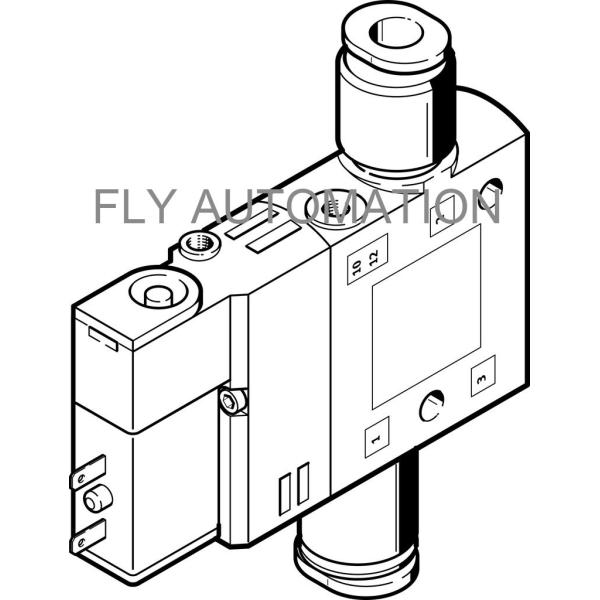

| Model Number: | CPE10-M1BH-3GL-QS-4 |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | EXW USD50-60 |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 20 pcs per week |
| Delivery Time: | 7-10 working days |
| Packaging Details: | Plastic bag, Carton |
| Valve function: | 3/2-way, closed, monostable |
| Brand: | FESTO |
| Model: | CPE10-M1BH-3GL-QS-4 |
| Order no: | 196846 |
| Operating voltage: | 24V DC |
| pneumatic working port: | QS-4 |
| Company Info. |
| Airwolf Automation |
| Verified Supplier |
| View Contact Details |
| Product List |
About product
1.The solenoid valves CPE, Compact Performance, are distinguished by their minimal width and low power consumption at high flow rates.
2.They can be mounted directly on site:on the cylinder,on moving system components,flexible installation through individual mounting.
Technical Data
| Valve function | 3/2-way, closed, monostable |
| Type of actuation | Electric |
| Construction width | 10 mm |
| Standard nominal flow rate | 190 l/min |
| pneumatic working port | QS-4 |
| Operating voltage | 24V DC |
| Design | Piston gate valve |
| Type of reset | Pneumatic spring |
| Approvalc | UL us - Recognized (OL) |
| Degree of protection | IP65 With plug socket To IEC 60529 |
| Nominal size | 4 mm |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting via accessory Non-detenting |
| Type of piloting | Pilot actuated |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Symbol | 00991655 |
| Valve position code | Inscription label holder |
| lap | Positive overlap |
| Switching time off | 14 ms |
| Switching time on | 14 ms |
| Duty cycle | 100% in conjunction with holding current reduction |
| Characteristic coil data | 24 V DC: 1.28 W |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5°C-50°C |
| Ambient temperature | -5°C-50°C |
| Electrical connection | 2-pin |
| Type of mounting | With through-hole |
| Pilot exhaust port 82 | M3 |
| Pilot air port 12 | M3 |
| Pneumatic connection, port 1 | QS-4 |
| Pneumatic connection, port 2 | QS-4 |
| Pneumatic connection, port 3 | M7 |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material housing | Die-cast aluminium |
Another Size as below,
| Type | Order no | Price |
| CPE10-M1BH-3GL-M5 | 196845 | USD50-60 |
| CPE10-M1BH-3GL-M7 | 196915 | USD50-60 |
| CPE10-M1BH-3GL-QS-4 | 196846 | USD50-60 |
| CPE10-M1BH-3GL-QS-6 | 196847 | USD50-60 |
| CPE10-M1CH-3GL-M7 | 550233 | USD50-60 |
| CPE10-M1BH-3OL-M5 | 196851 | USD50-60 |
| CPE10-M1BH-3OL-M7 | 196917 | USD50-60 |
| CPE10-M1BH-3OL-QS-4 | 196852 | USD50-60 |
| CPE10-M1BH-3OL-QS-6 | 196853 | USD50-60 |
| CPE10-M1CH-3OL-M7 | 550235 | USD50-60 |
| CPE10-M1BH-3GLS-M5 | 196848 | USD50-60 |
| CPE10-M1BH-3GLS-M7 | 196916 | USD50-60 |
| CPE10-M1BH-3GLS-QS-4 | 196849 | USD50-60 |
| CPE10-M1BH-3GLS-QS-6 | 196850 | USD50-60 |
| CPE10-M1CH-3GLS-M7 | 550234 | USD50-60 |
| CPE10-M1BH-3OLS-M5 | 196854 | USD50-60 |
| CPE10-M1BH-3OLS-M7 | 196918 | USD50-60 |
| CPE10-M1BH-3OLS-QS-4 | 196855 | USD50-60 |
| CPE10-M1BH-3OLS-QS-6 | 196856 | USD50-60 |
| CPE10-M1CH-3OLS-M7 | 550236 | USD50-60 |
Delivery
1. If the products we have in store, we will send it out ASAP after
payment.
2. If the products which were customized, we will complete the
production within a specified period of time, and send it out the
first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT
will be normal ways. If you require use of a courier, we can do it.
|
