| Categories | 3 Phase Vacuum Pump |
|---|---|
| Brand Name: | GOORUI VACUUM PUMP |
| Model Number: | GHBH 011 36 1R9 |
| Certification: | CE/TUV/ISO9001-2001/SGS/ROHS |
| Place of Origin: | MADE IN CHINA |
| MOQ: | 1 |
| Price: | $1520.00/set |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 500 set/day |
| Delivery Time: | 15 work days |
| Packaging Details: | 1. Packed in individual cartons. |
| Model No: | GHBH 011 36 1R9 |
| Phase: | 3 |
| Stage: | Double |
| Frequency: | 50/60HZ |
| Output: | 8.5/9.8kw |
| Voltage: | 345-415△600-690Y/380-480△660-720Y |
| Current: | 18.2△/10.5Y-18.2△/10.5Y |
| Max Airflow: | 1050m3/h/1250m3/h |
| Max Vacuum: | -190mbar/-150mbar |
| Max Pressure: | 190mbar/140mbar |
| Gloss Weight: | 110kgs |
| Speed of rotation: | 2850/3450r/min |
| Sound: | 58/62db |
| Level of protection: | IP55 |
| Insulation class: | F |
| Weight: | 93kg |
8.5 Kw Ring Blower Side Channel Air Blower For Air Drying And Dehumidification
Applications
Goorui blower has been widely used in more than 100 different applications. It can be used for vacuum propose, such as printing machine, dental suction machine,vacuum cleaner, central vacuum system,air knife system, drying machine,PCB drying machine, CNC router, vacuum lifting,etc;

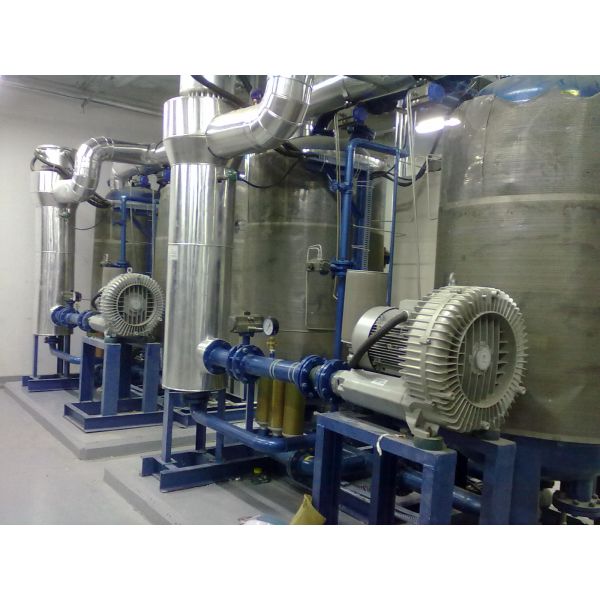

Or it can be used for pressure propose, such as water,waste water treatment, spa aeration, aquaculture, bio-gas conveying,oil treatment equipment,Gas analysis, Smoke extraction equipment,Milking equipment,Bottling equipment,Feeding machine,TEXTILE machine,etc;
| Goorui Model | Single | Frequency | Rated | Voltage | Rated | Max | Rated | Rated | Sound | Weight |
| Double | Output | Current | Airflow | Vacuum | Pressure | |||||
| Stage | Hz | KW | V | A | m3/h | mbar | mbar | dB(A) | Kg | |
| GHBH 011 36 1R9 | Single | 50 | 8.5 | 345-415△600-690Y | 18.2△/10.5Y | 1050 | -190 | 190 | 74 | 93 |
| 60 | 9.8 | 380-480△660-720Y | 18.2△/10.5Y | 1250 | -150 | 140 | 79 |


|
