IATF16949 Certified Battery Bonding Sealing Silicone Foam Gasket

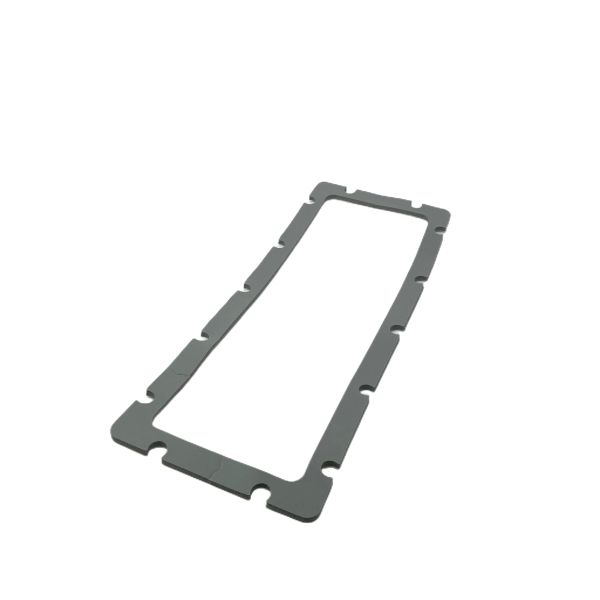

IATF16949 Certified Battery Bonding Sealing Silicone Foam Gasket

IATF16949 Certified Battery Bonding Sealing Silicone Foam Gasket
IATF16949 Certified Battery Bonding Sealing Silicone Foam Gasket
Categories Battery Bonding
Brand Name: FQ
Model Number: BPS-02
Certification: IATF16949
Place of Origin: China
MOQ: Customized
Price: USD 45/PC
Payment Terms: L/C, T/T, D/P
Supply Ability: 1000pcs/day
Delivery Time: 1000 pcs/ days
Packaging Details: pp bag+Cartons
Material: Customized
Sized: Customized
Tape: Double-sided adhesive
Requirements for flame retardant grade: Customized
Appearance requirements: smooth surface, no damage, scratches, lack of material, obvious defects and other defects
Contact Now
Company Info.
Fuzhou Fuqiang Precision Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

IATF16949 Certified Battery Bonding Sealing Silicone Foam Gasket

Products Description
  1. Grade: silicone foam material meets RoHS grade certifications.
  2. Sample cost: if be our stock size sample, be free;if be a new one, the sample cost depends on the product.
  3. Sample time: 1 day for stock sample;5-7 days for customized sample.
  4. Sample quantity: below 2 pcs.
  5. Surface: smooth surface.
  6. Extra service: cut and punch into the required shape and size.

F-TECH-FSR420 is a low-stress silicone foamed silicone material. It has a low density and excellent resistance to compression set. Compared with traditional carbon-based foam materials, the material has excellent high and low-temperature resistance (-55-200 °C), high flame retardant (V-0), extremely low smoke density and smoke toxicity. In addition, the material has excellent ageing and weather resistance, making it ideal for all types of shock absorption, cushioning, support, sound insulation, protection, insulation and fire protection.


Automotive –PORON® Urethanes and BISCO® Silicones are certified for use under several standards, including UL-508 (industrial control equipment), UL-1572 (HID lighting fixtures) and especially UL-50E (electrical enclosures), with testing done to the new periodic recompression standard. PORON cellular urethane products also meet environmental standards’ requirements for UL 50E electrical equipment, UL 508 industrial control equipment and UL JMST2 gasketing.



Main Features

  1. Wide operating temperature – silicone foam has a temperature range of -67°F to 392°F (-55°C to 200°C).
  2. Water sealing – closed cell products offer good water sealing with relatively low compressive forces.
  3. Dust sealing – open cell and closed-cell products can be used for sealing out dust with low compressive forces.
  4. Compression set resistance – silicone foam offers excellent compression set resistance (ability to rebound to original
  5. thickness).
  6. UV and ozone resistance – silicone products have excellent UV and ozone resistance due in part to their inorganic backbone. This provides long-term performance.
  7. UL gasket – most silicone foam products are UL 94 flame rated for the gasket.
Specification
SNTESTUNITESTesting standardsTechnical indicators
1Densityg.cm-3ASTM D 10560.42±0.04
2HardnesskPaASTM D 1056110 ± 20
3Compression set%ASTM D 1056 @100℃≤ 5.0
4Tensile strengthMPaASTM D412-16≥ 0.4
5Elongation%ASTM D412-16≥ 85
6Water absorption%ASTM D 570≤ 5.0
7Environmental testing/RoHS,REACH,ELVOK
8Flame retardant/UL94-2013V-0
9Low temperature bending/ASTM D 1056-55℃ OK
10Dielectric strengthkV/mmASTM D149-09≥ 3.5
11Volume resistivityΩ·cmASTM D257-14≥ 1.0*1014
12Thermal conductivityW/(m·K)ASTM C518-170.09±0.01

tem
ISO9001 IATF 16949:2016 CertifiedEPDM/NBR/CR/VMQ/FKM Oil resistance silicone rubber gasket for Automotive and industrial
Material
EPDM, NBR, SBR, NR, Silicone(VMQ), Neoprene(CR), HNBR, XNBR, FKM, FFKM, FVMQ, FLAS, PTFE, PU, ECO, IIR, ACR, etc...
Silicone: High Tensile Silicone, Food Grade Silicone, Medical Grade Silicone, High Clear Silicone, etc.
If there is any special requirements on material performance, such as temperature resistant, resists deformation, compression set,
tensile strength etc... Foam material is also available. If you do not know what kind of material to use, pls advise us what is
the usage of these parts? Then we can make some recommend for you.
Certificate
IATF 16949:2016 / ISO 9001:2015 / ISO 45001:2018 / ISO 14001:2015 /REACH/ROHS/MSDS/LFGB
Drawing Format
.stp / .step / .igs /.stl /.dwg / .pdf
Color
Almost all PMS colors available for Silicone (VMQ); Mostly black for other rubber materials, if other colors are required, please
indicate it on inquiry.
Parameters
Inch, centimeter, millimeter, etc.
Function
Industrial parts /daily supply / Automotive/ Medical device, etc...
Surface Treatment
Matte, Common polishing, Mirror polishing, Texture, Laser Engraving, Power Coating (Painting), Printing, Segmented colors, Mixed
colors, etc.
Mold Precision
If no special request, apply to ISO3302:2014 standards, class 2.
Mold Life-cycle
100,000-500,000 shots.
Packing
Pack in bulk / poly bag / bubble bag / color box.
Sample
Available. One cavity sample mold or 3D printing.
Price Tip
The price shown above is just for reference, final actual price depends on your design, material request, surface treatment, order
qty, package request, etc.

Compressive stress curve

Application

Common Industry Applications

  • Telecommunications outdoor enclosures (environmental gasket)
  • Portable data acquisition (gaskets and cushioning)
  • Indoor lighting (dust gasket, UL 94V-0)
  • Outdoor LED lighting (weather gasket, long life, UL listed)
  • Asset tracking (environmental gasket, low compression set)
  • Instrumentation (vibration dampening)
  • Electronics (touch screen gaskets, cushioning)
Package & Delivery
It is a non-dangerous good. Store it in a cool, dry place below 27°C.
