| Categories | Solar PV Panel |
|---|---|
| Brand Name: | NACYC ENERGY |
| Model Number: | DS-165P6-36 |
| Certification: | TUV, IEC, SGS |
| Place of Origin: | Fujian, China |
| MOQ: | 30 Pieces |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 10 Megawatts per month |
| Delivery Time: | Shipped in 15 days after payment |
| Packaging Details: | 30pcs / box, 780pcs / 40'HQ Container |
| Solar cells: | Poly 156*156mm |
| Weight: | 12kg |
| Backsheet(color): | White |

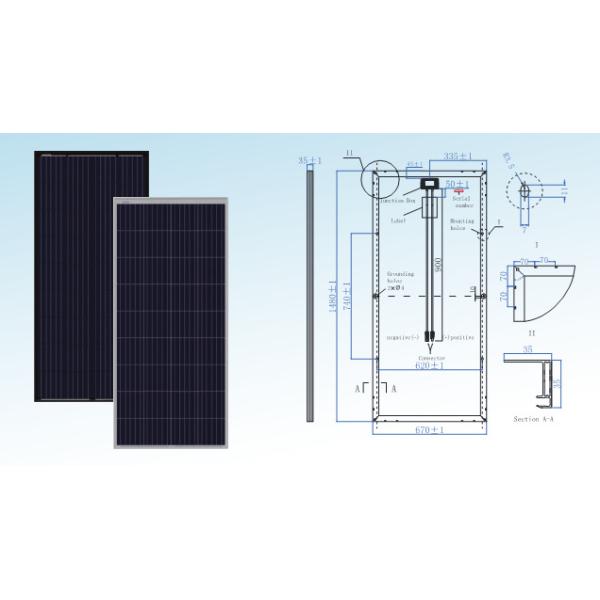

| Dimension: | 1480*670*35mm |
| Frame: | Anodized Aluminium Alloy/Silver |
| No. of Cells: | 36(4*9) |
| Junction box: | IP65 |
Advantage:
1. Unique cell design with 5 bus-bar for higher efficiency and
module stability.
2. PID free module; Anti-PID Material; Anti-PID technology.
3. High conversion efficiency,high module efficiency to guarantee power output.
4. Wind load of up to 2400Pa and heavy snow load of up to 5400Pa.
Technical Data:
| Application | Solar mounting systems |
| Solar cells | Mono 156*156mm |
| Front cover | Low iron tempered glass/3.2mm |
Connectors | MC4 / MC4 Compatible |
| Packaging | 80pcs / pallet, 1200pcs / 40'HQ Container |
FAQ:
Q1: Is your company a factory or trading company?
A:Our company are specialized in the designing and manfacturing the solar mounting system with 20 years professional experience.
Q2: What's the mini.order about your products?
A:For the first order,we don't restrict a certain mini.order,it depends on your project.
Q3: What's the price of your products?
A:It depends on the project,the price in the website can be for your reference,for the detailed price,we need more data to design the solar mounting system,and offer you the price.
|
