| Categories | Solar Ground Screws |
|---|---|
| Brand Name: | NACYC ENERGY |
| Model Number: | Ground Screw |
| Certification: | SGS, ISO, AS NZS1170, Patents |
| Place of Origin: | Fujian, China |
| MOQ: | 50 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500 Pieces per week |
| Delivery Time: | Shipped in 15 days after payment |
| Packaging Details: | 150pcs/pallet, 2100pcs/20'ft, 4200pcs/40'ft |
| Type: | Solar Ground Screws |
| Application: | Ground |
| Color: | Silver |
| Port: | Xiamen Port |
| Length: | 1400\1600\1800mm |
| Surface Treatment: | Hot Dip Galvanized |

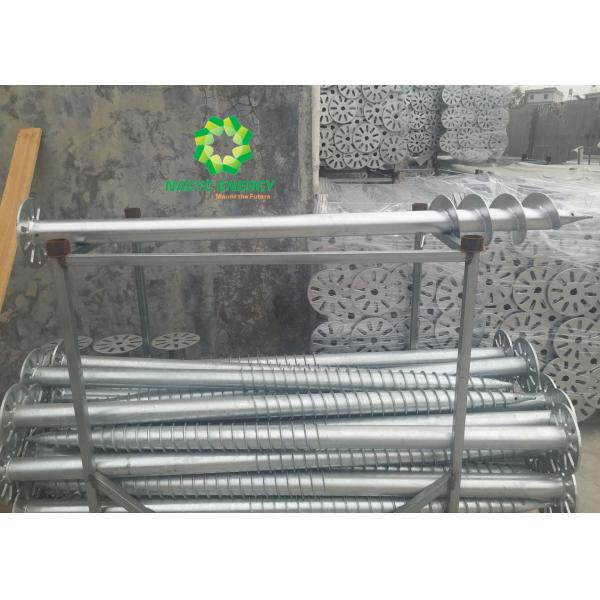

1600mm 1800mmSolar Ground Screws Pole Anchor Hot Dip Galvanized
Solar Ground Screws is a modern foundation system,using the drilling machine to install which makes it as the most efficient and cost-saving footing solution.It can be widely applied to different soil conditions. Ground screw can be used for many kinds of application, like solar system
Technical Data:
| Length | 1400mm 1600mm 1800mm |
| Out Pipe Diameter | 76 mm |
| Pipe Thickness | 3 mm |
| Weight | 8.1kg, 9.3 kg, 10.46kg |
| Material | ISO630 / Din EN10025 |
| Surface Finished | Hot Dipped Galv. As standard DIN EN ISO 1461-1999 |
| Connect Style | Round flange or square flange or 185mm regular triangle |
Application:
| 1. Timber Construction | 2. Solar Power Systems |
| 3. City and Parks | 4. Fencing Systems |
| 5. Road and Traffic | 6. Sheds and Containers |
| 7. Flag Poles and Marks | 8. Garden and Leisure |
| 9. Boards and Banners | 10. Event Structures |
Key Benefits:
1 .Compatibility with all type of structures.
Our technical department will adapt the head of our ground screw piles to whatever the need of the customer is.
2. High quality.
As a factory owned ISO 9001 certificate, we can provide high quality steel ground stakes with critically inspection.
3 . Foundation solution concrete free.
Easy installation by spiral pilling machine, no digging, no concrete, no waiting, much convenient, cost effective, time saving and environmentally than concrete foundation.
4 . Surround areas remains unspoiled.
The special configuration of our product allows the insertion without performing land preparation works, which allows a significant cost reduction.
|
