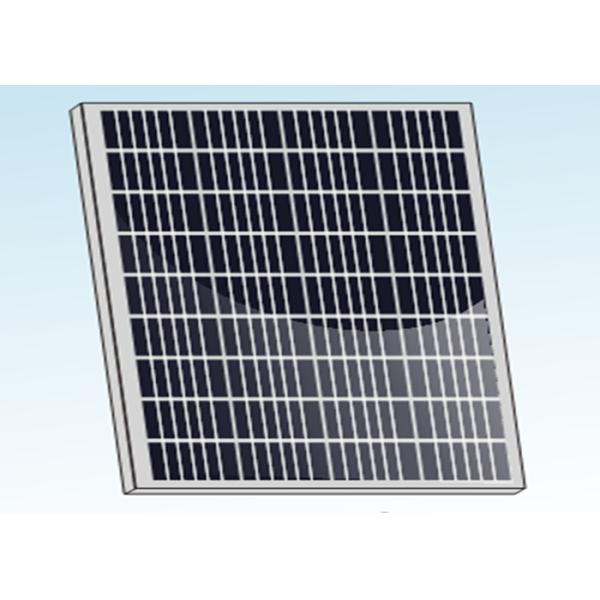

120W Anodized Aluminum Alloy Frame Polycrystalline Solar PV Panel

Categories	Solar PV Panel
Brand Name:	NACYC ENERGY
Model Number:	DS-120P6-36
Certification:	CE; TUV; SGS
Place of Origin:	Fujian, China
MOQ:	3 Kilowatts
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	300 kilowatts per month
Delivery Time:	Shipped in 15 days after payment
Packaging Details:	250KW/40ft, 100KW/20ft
Dimension:	1205mm676mm30mm
Application:	Home, Commercial, Industrial
Weight:	10.10KGs
Load power:	120 watt
Junction box:	IP65, 2 diodes
Frame:	Anodized aluminium alloy
Module efficiency:	14.73%
Warranty:	10 Years

Contact Now

Add to Cart

Company Info.

Xiamen Nacyc Energy Technology Co., Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

120W Anodized Aluminum Alloy Frame Polycrystalline Solar PV Panel

120w Polycrystalline Home Aplication Solar PV Panel Anodized Aluminum Alloy

Product usage

1. Application: Home&Residental; Commericial; Industrial; Large scale development

2. Solar system type: on grid solar system; off grid solar system; Hybrid solar system

Product parameters

Application	Home, Commercial, Industrial
Weight	10.10KGS
Dimension	1205mm676mm30mm
Load power (w)	120watt
Frame	Anodized aluminium alloy
Module efficiency	14.73%
Junction box	IP65, 2 diodes
Front cover	3.2mm tempered glass
Cell arrangement	36 cells in series
Cable	2.5mm2, 900mm (650mm is optional)
Warranty (years)	3/5

Product advantage

1. 10 years Products Warranty;25 years Warranty on power output;
PID Resistant; Positive tolerance 0/+5w guaranteed;
2. MBB The optimized umber and width of main gate lines,Maximize
the light receiving area of components and Reduce component power
consumption;
3. Designed for high voltage systems of up to 1500 VDC, increasing
the string length of solar systems and saving on BoS costs;
4. Microcrack resistant Double glass structure enhance reliability,
triple EL tested of high quality control;
5. Entire module certified to with stand extreme wind (2400 Pa) and
snow loads (5400 Pa);
6. All the modules are sorted and packaged by amperage, reducing
mismatch losses and maximizing system output.
7. High efficiency 5BB PV cell; quality diode ensures module
running safety.
