| Categories | Thermal Spray Wire |
|---|---|
| Brand Name: | WL |
| Model Number: | WL-Pure Zn |
| Place of Origin: | China |
| MOQ: | 5KG |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 tons per month |
| Delivery Time: | within 10 days |
| Packaging Details: | 20kg/spool |
| Price: | Negotiable |
| Diameter: | 1.6/2.0/3.17mm |
| Density: | 7.14 g/cm3 |
| Typical Hardness: | HRB 20 – 30 |
| Bond Strength: | 6.9 – 15.0 Mpa |
| Deposit Rate: | 24 lbs /hr/100A |
| Deposit Efficiency: | 0.7 |
| Machine Ability: | Good |
| Certificate: | ISO9001 |
| Surface: | Bright |
| Spool Type: | No Recycled Material |
| Spray Wire State: | Semi-hard State |
| Company Info. |
| Changzhou WL Allotech Material Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Metco Pure Zinc 99.995% TAFA02Z Thermal Spraying Wire 1.6mm 2.0mm 3.17mm Atmospheric Corrosion Protection
Product Description
Zinc is 99.99% pure, and is not contaminated in the arc spray process. Zinc alloy wire sprayed coatings are integral steps in the manufacture of various electronic, capacitor, automotive, heat exchange and tube & pipe products. Thermal spray Zinc based alloy wire coatings are also used in the Corrosion protection of bridges, locks & dams, above ground storage tanks, light poles, and other critical infrastructure.
Equivalent to: TAFA02Z, Sulzer Metco Zinc
Surface Preparation
Surface should be clean, white metal, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning.Recommended method of preparation is, to grit blast with 24 mesh aluminum oxide, rough grind, or rough machine in a lathe.
Chemical Composition(wt%)
| Type | Chemical composition | ||
Zn | Al | Others | |
Zn 99.9+ | Balance | 0.1 | |
SPECIFICATIONS
Grade | AWS |
Zn C2.25/C2.25M | W-Zn-1 |

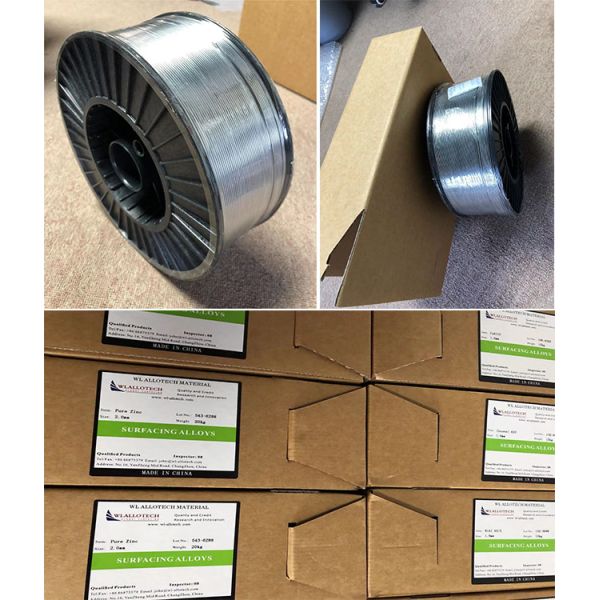

Packing Details
| Diameter | DimensionTolerance | Packing | Wire Weight |
| 1/16"(1.6mm) | +0/-0.05 | D 300 Spool | 15kgs(33 lbs)/spool |
| 2.0mm | +0/-0.05 | D 300 Spool | 15kgs(33 lbs)/spool |
| 1/8"(3.17mm) | +0/-0.05 | Coil Form | 20-400kgs/coil |
Applications
Atmospheric corrosion protection
Electrical conductance on components
Atmospheric and immersion corrosion protection
Barriers, posts and poles, offshore structures and marine structures
EMI and RF shielding on plastic components (electric arc spray only)
Type We Could Offer
Thermal spray wire-Nickel based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-NiAl95/5 | 75B | 885 | 8400 | 1.6/2.0/3.17mm |
| WL-NiAl80/20 | 79B | 884 | 405 | 2.0/3.17mm |
| WL-NiCr80/20 | 06C | 821 | 8450 | 1.6/2.0/3.17mm |
| WL-Monel400 | 70T | 877 | Monel | 1.6/2.0/3.17mm |
| WL-NiCrTi | 45CT | 889 | 8500 | 1.6/2.0/3.17mm |
| WL-Inconel718 | 78T | 818 | 8718 | 1.6/2.0/3.17mm |
| WL-Inconel625 | 71T | 860 | 8625 | 1.6/2.0/3.17mm |
| WL-Alloy-C276 | 77T | 876 | 8276 | 1.6/2.0/3.17mm |
| WL-NiCrAl(P) | 73MXC | 886 | 8443 | 1.6/2.0mm |
| WL-NiCrAlY(P) | 76MXC | 887 | 884 | 1.6/2.0mm |
| WL-NiMoAl(P) | 74MXC | 888 | 8447 | 1.6/2.0mm |
Thermal spray wire-Iron based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-SS420 | 60T | 720 | Metcoloy 2 | 1.6/2.0/3.17mm |
| WL-SS304/304L | 80T | 710 | Metcoloy 1 | 1.6/2.0/3.17mm |
| WL-SS316/316L | 85T | 730 | Metcoloy 4 | 1.6/2.0/3.17mm |
| WL-FeCrAl | Alcro | 731 | 1.6/2.0mm | |
| WL-FeCrBSi(P) | 95MXC | 273 | 1.6/2.0mm | |
| WL-FeCrNiB(P) | 96MXC | 1.6/2.0mm | ||
| WL-Tungsten Carbide(P) | 97MXC | 297 | Duocor | 1.6/2.0mm |
| WL-LCr Carbide(P) | 98MXC | 223 | 1.6/2.0mm | |
| WL-FeAl(P) | 35MXC | 50 | 1.6/2.0mm | |
| WL-HCr Carbide(P) | 226 | Sm8222 | 1.6/2.0mm |
Thermal spray wire-Copper based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Copper | 1.6/2.0/3.17mm | |||
| WL-CuSn1 | 05T | 1.6/2.0/3.17mm | ||
| WL-CuAl8 | Sprabronze AB | 1.6/2.0/3.17mm | ||
| WL-CuAl10 | 10T | 590 | Sprabronze AA | 1.6/2.0/3.17mm |
Thermal spray wire-Zinc & Aluminium based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Al | 01T | 699 | Aluminum | 1.6/2.0/3.17mm |
| WL-Pure Al Grade 1100 | 1.6/2.0/3.17mm | |||
| WL-Pure Zn | 02Z | 540 | Zinc | 1.6/2.0/3.17mm |
| WL-AlMg5 | Metco AlMg | 1.6/2.0/3.17mm | ||
| WL-ZnAl85/15 | 02A | Zn/Al | 1.6/2.0/3.17mm |
Thermal spray wire-Other based alloy
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Molybdenum wire | 13T | 899 | Sprabond | 1.6/2.0/3.17mm |
| WL-Babbitt wire | 04T | 542 | Sprababbitt | 1.6/2.0/3.17mm |
| WL-Tin wire | 02W | 549 | Metco Tin | 1.6/2.0mm |
| WL-Ti wire | 14T | 1.6/2.0mm |
|
