FeAl Cored TAFA 35MXC Heating Resistance Wire Metal Wire Alloy Wire

Categories	Thermal Spray Wire
Brand Name:	WL-ALLOTECH
Model Number:	35MXC wires
Place of Origin:	China
MOQ:	5kg
Payment Terms:	L/C, T/T
Supply Ability:	300 tons per month
Delivery Time:	within 10 days
Packaging Details:	15kg/spool
Price:	Negotiable
Hardness:	HRC 35
Bond Strength:	8000 psi
Deposit Rate:	10lbs /hr/100A
Deposit Efficiency:	70%
Wire Coverage:	0.6 oz / ft2 / mil
Machine Ability:	Good
Raw material:	Al C Mn Fe
Surface:	Bright
Spool Type:	No recycled material
certificate:	ISO 9001
Test Report:	Mill-certificate
Spray Wire State:	Semi-hard State
Diameter:	1.6/2.0mm
Equivalent:	TAFA 35MXC, Armacore M, PMET50

Contact Now

Add to Cart

Company Info.

Changzhou WL Allotech Material Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

FeAl Cored TAFA 35MXC Heating Resistance Wire Metal Wire Alloy Wire

FeAl Cored Wire TAFA 35MXC Heating Resistance Wire Thermal Spray Wire Metal Wire Alloy Wire

Product Description

FeAl (P) is a cored wire specifically designed for arc spray systems. It produces a well bonded coating with high hardness. It has the unique ability to produce either smooth or very rough profile coatings for non-slip applications. FeAl (P) coatings have excellent machinability. Typical applications include non-slip coatings for walkways and stairs, gripping rolls and bond coats.

Equivalent to TAFA 35MXC, Armacore M, PMET50.

Surface Preparation

Surface should be clean, white metal, with no oxides (rust), dirt, grease, or oil on the

surface to be coated. Note: It is best not to handle surfaces after cleaning.

Recommended method of preparation is, to grit blast with 24 mesh aluminum oxide,

rough grind, or rough machine in a lathe.

Chemical Composition(%)

Grade	Al%	C%	Mn%	Fe%
FeAl	5.5	2.0	1.0	Bal

Typical Deposit Characteristics

Typical

Hardness

Bond

Strength

Deposit

Rate

Deposit

Efficiency

Wire Coverage

Machine

Ability

HRC 35

8000 psi

10lbs /hr/100A

70%

0.6 oz / ft2 / mil

Good

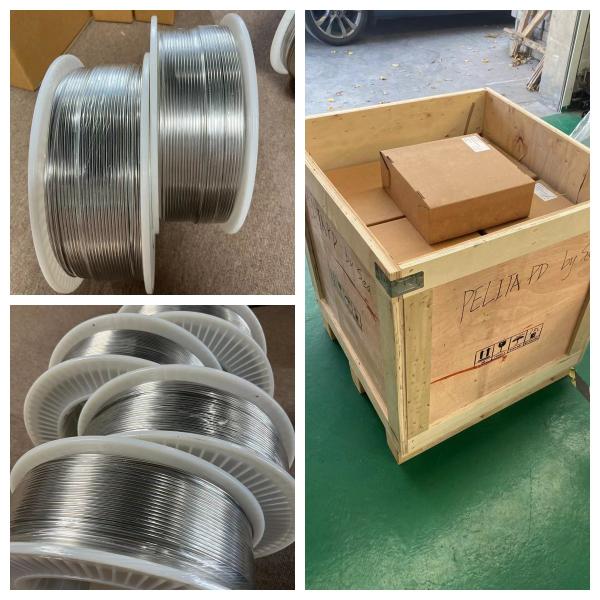

Packing Details

Diameter	DimensionTolerance	Packing	Wire Weight
1/16"(1.6mm)	+0/-0.05	D 300 Spool	15kgs(33 lbs)/spool
2.0mm	+0/-0.05	D 300 Spool	15kgs(33 lbs)/spool
1/8"(3.17mm)	+0/-0.05	Coil Form	20-400kgs/coil

Other sizes (diameter and wire weight) can be produced by customers’ requirement.

Applications

• Traction and Anti-Skid Coatings

• Wear Resistance

• Bond Coats

• Anti-Skid

• Traction Rolls

• Part Restoration

Type We Could Offer

Thermal spray wire-Nickel based

WL TYPE	Tafa	PMET	Metco	Size
WL-NiAl95/5	75B	885	8400	1.6/2.0/3.17mm
WL-NiAl80/20	79B	884	405	2.0/3.17mm
WL-NiCr80/20	06C	821	8450	1.6/2.0/3.17mm
WL-Monel400	70T	877	Monel	1.6/2.0/3.17mm
WL-NiCrTi	45CT	889	8500	1.6/2.0/3.17mm
WL-Inconel718	78T	818	8718	1.6/2.0/3.17mm
WL-Inconel625	71T	860	8625	1.6/2.0/3.17mm
WL-Alloy-C276	77T	876	8276	1.6/2.0/3.17mm
WL-NiCrAl(P)	73MXC	886	8443	1.6/2.0mm
WL-NiCrAlY(P)	76MXC	887	884	1.6/2.0mm
WL-NiMoAl(P)	74MXC	888	8447	1.6/2.0mm

Thermal spray wire-Iron based

WL TYPE	Tafa	PMET	Metco	Size
WL-SS420	60T	720	Metcoloy 2	1.6/2.0/3.17mm
WL-SS304/304L	80T	710	Metcoloy 1	1.6/2.0/3.17mm
WL-SS316/316L	85T	730	Metcoloy 4	1.6/2.0/3.17mm
WL-FeCrAl	Alcro	731		1.6/2.0mm
WL-FeCrBSi(P)	95MXC	273		1.6/2.0mm
WL-FeCrNiB(P)	96MXC			1.6/2.0mm
WL-Tungsten Carbide(P)	97MXC	297	Duocor	1.6/2.0mm
WL-LCr Carbide(P)	98MXC	223		1.6/2.0mm
WL-FeAl(P)	35MXC	50		1.6/2.0mm
WL-HCr Carbide(P)		226	Sm8222	1.6/2.0mm

Thermal spray wire-Copper based

WL TYPE	Tafa	PMET	Metco	Size
WL-Pure Copper				1.6/2.0/3.17mm
WL-CuSn1	05T			1.6/2.0/3.17mm
WL-CuAl8			Sprabronze AB	1.6/2.0/3.17mm
WL-CuAl10	10T	590	Sprabronze AA	1.6/2.0/3.17mm

Thermal spray wire-Zinc & Aluminium based

WL TYPE	Tafa	PMET	Metco	Size
WL-Pure Al	01T	699	Aluminum	1.6/2.0/3.17mm
WL-Pure Al Grade 1100				1.6/2.0/3.17mm
WL-Pure Zn	02Z	540	Zinc	1.6/2.0/3.17mm
WL-AlMg5			Metco AlMg	1.6/2.0/3.17mm
WL-ZnAl85/15	02A		Zn/Al	1.6/2.0/3.17mm

Thermal spray wire-Other based alloy

WL TYPE	Tafa	PMET	Metco	Size
WL-Molybdenum wire	13T	899	Sprabond	1.6/2.0/3.17mm
WL-Babbitt wire	04T	542	Sprababbitt	1.6/2.0/3.17mm
WL-Tin wire	02W	549	Metco Tin	1.6/2.0mm
WL-Ti wire	14T			1.6/2.0mm
