Galvanized Steel IP55 20U Outdoor Electrical Cabinet 720x720x1300mm

1. Outdoor Electrical Cabinet Description

Outdoor Telecom cabinets (with air-conditioner design) are ideal for applications where your expensive and sensitive network equipment is exposed environmental factors such as dust and water. This series cabinet is 1300mm High and 720mm Wide and 720mm Deep. It independently equipped with a standard 19-inch power environment monitoring module, remote real-time monitoring and monitoring and monitoring intervention sits on equipment in the base station, and remote maintenance and detection capabilities can be designed to significantly reduce late-stage operational maintenance costs.

2. Outdoor Electrical Cabinet Structure

Dimension:720×720×1300mm

The cabinet includes 19” mounting rack from top to down, without battery tray

The cabinet is made of galvanized steel, single wall, thickness: 1.5mm, without thermal insulation

3. Outdoor Electrical Cabinet Features

• Galvanized steel
• Anti-theft three point lock
• The cabinet includes 19” standard installation rack.
• The cabinet cooling uses 220AC air conditioner cooling system
• Including -48VDC illumination lamp.
• The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
• At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
• IP55 protection level.

4. Cabinet Parameters

5. Technical Specs

(1) Applicable environment conditions:

Operating temperature: -40°C ~ + 55°C

Storage temperature: -50°C ~ + 70°C

Transport temperature: -50°C ~ + 70°C

Relative humidity (RH): 5%~99%

Air pressure: 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude)

(2) Material: good quality galvanized steel

(3) Surface treatment: powder-coat paint, outdoor polyester light gray RAL 7035 coating

(4) Ingress protection: IP55

(5) Flame retardance: comply with GB5169.7 test A

(6) Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).

(7) Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.

6. Power system connections

AC input cable connections The connectors for AC input cable are two-core AC input sockets on the front panel of system. The AC cable can be directly inserted to the connector.

Connection of DC load cables The terminals for load connection of the system are LOAD1-, LOAD2-, totally 2PIN, locating on the front panel of the system. The cable can be directly inserted into the terminal.

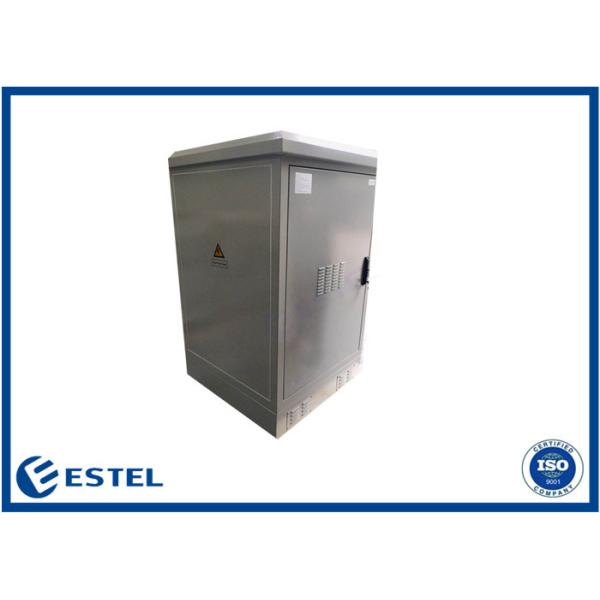

7. Cabinet Picture

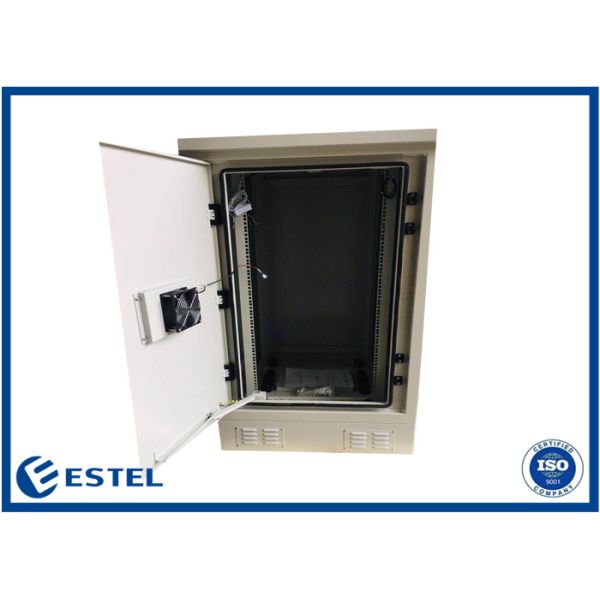

8. Cabinet inside Rack
