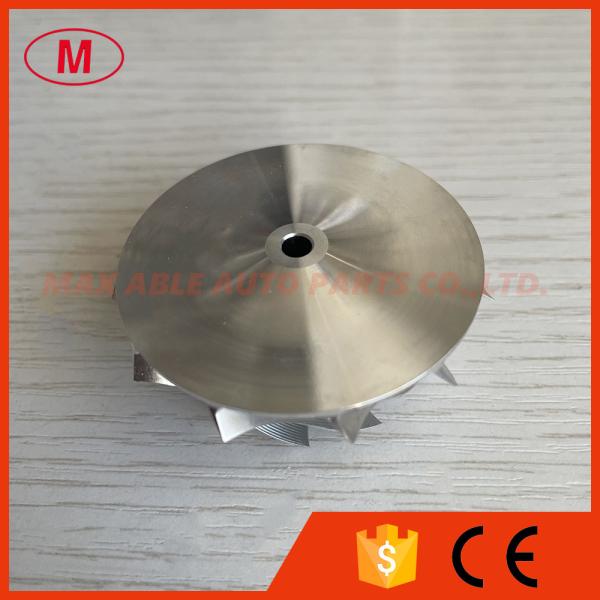

TD03 forward 37.50/48.00mm 11+0blades Point Milling Snake Curve,Twisted Blade Performance Turbo billet compressor wheel

1. MODEL:TD03 forward

2.TD03 forward 37.50/48.00mm 11+0blades Point Milling_Snake Curve,Twisted Blade design, Performance Design Turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:9.53mm

Inducer:37.50mm

exducer:48.00mm

Tapered tip exducer:51.98mm

Tip height:4.80mm

Superback:1.80mm

bore size :4.00mm

bore type:through

Overall height:22.70mm

Cutback:5.5mm

Trailing Angle:60 degree

SP height angle:0.00

Splitter height:0.00mm

Blades height:18.00mm

11+0 blades forward

It is custom size ,please check carefully before buying.

Tapered tip Angle:27.6 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement ,the minimun order is 5pcs

All the compressor wheels have been balanced.
