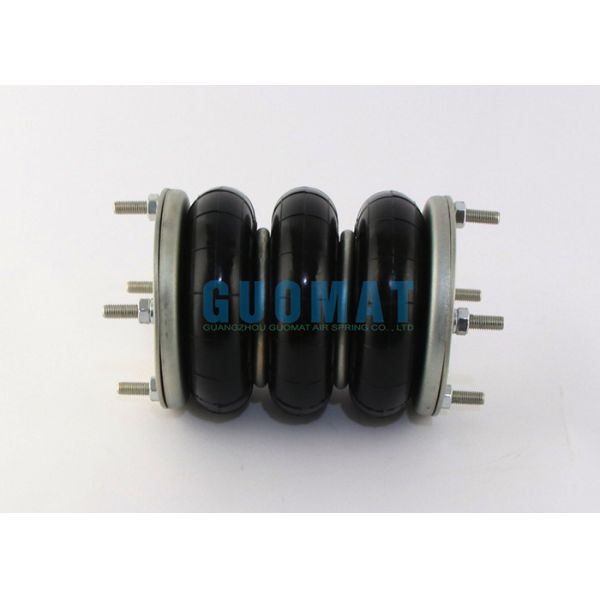

Triple Convoluted Industrial Air Suspension Spring W01-R58-4095 Firestone SP2861 Dunlop 6X3

Triple Convoluted Industrial Air Suspension Spring W01-R58-4095 Firestone SP2861 Dunlop 6X3

Product Description

Air Spring Cross Reference Number

Firestone Number: W01-R58-4095

Firestone Number: W01R584095

Firestone Number: W01 R58 4095

Firestone Number: WO1-R58-4095

Firestone Number: WO1R584095

Firestone Number: WO1 R58 4095

Dunlop Pneuride Number: 6''X3 (Steel)

Dunlop Pneuride Number: 6''x3 (Steel)

Dunlop Springride Number: SP2861

Dunlop Springride Number: SP 2861

Contitech Number: FT76-20DS

Contitech Number: FT 76-20DS

Contitech Number: FT 76-20 DS

Norgren Number: M/31063

Norgren Number: M 31063

Norgren Number: M31063

Parker Number: 9109007

GUOMAT 6X3 Air Spring Technical Data

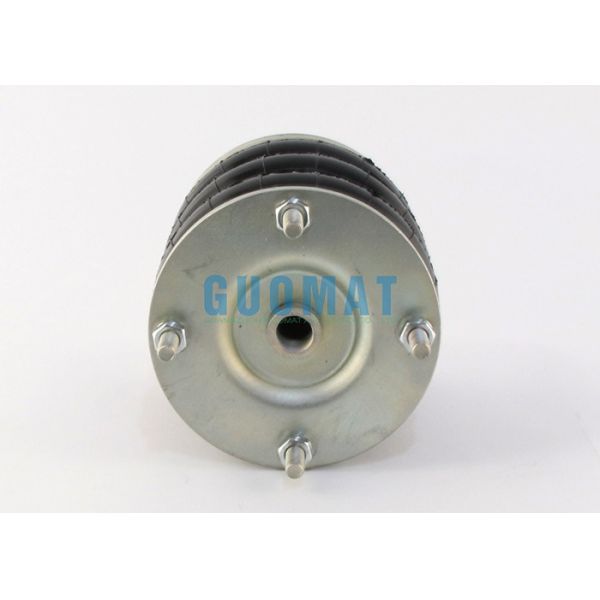

The Top Cover Plate Diameter: 154mm

Air Inlet: 1/2

The Top Cover Plate Stud: 4XM10X1.5

The Distance Between the Top Cover Stud: 127mm

The Bottom Cover Plate Diameter: 154mm

The Bottom Cover Plate Stud: 4XM10X1.5

The Distance Between the Bottom Cover Stud: 127mm

Rubber Bellow Diameter: 143mm

The Stroke: 105mm-255mm

—————————————————

Minimum Pressure: 0 bar
Resilience to Minimum Height: ≤250N
Weight: 2.8KG

Other Related Products

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
