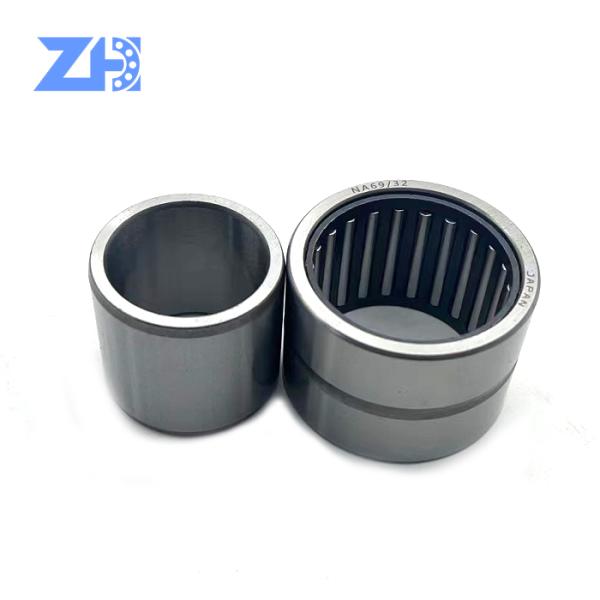

Heavy Duty Needle Roller Engineer Bearings RNA 69/32 NA69-32 40X52X36mm

NA69-32 Size 40X52X36mm Heavy Duty Needle Roller Engineer Bearings RNA 69/32

Product Description

RNA49 Series:

RNA4900,RNA4901,RNA4902,RNA4903,RNA4904,RNA4905,RNA4906,RNA4907,RNA4908,RNA4909,RNA4910,RNA4911,RNA4912,RNA4913,RNA4914,RNA4915,RNA4916,RNA4917,RNA4918,RNA4919,RNA4920

NA69 Series:

NA6900,NA6901,NA6902,NA6903,NA6904,NA6905,NA6906,NA6907,NA6908,NA6909,NA6910,NA6911,NA6912,NA6913,NA6914,NA6915,NA6916,NA6917,NA6918,NA6919,NA6920

NA59 Series:

NA5901,NA5902,NA5903,NA5904,NA5905,NA5906,NA5907,NA5908,NA5909,NA5910

NA48 Series:

NA4801,NA4802,NA4803,NA4804,NA4805,NA4806,NA4807,NA4808,NA4809,NA4810

Description

NA NK NKI NKIS Needle roller bearings are consisted of outer ring, inner ring, needle and cages, are one of the most widely used needle bearings. It mainly used on automobiles, machinery tool, printing machinery, textile machinery etc.

Technical Parameter

His shaft.	Model No.	D	C	rsmin	da max	Your. C	Sta. C	Rotation Speed rpm	Weight
5	RNA493	11	10	0.15	9.8	2420	1950	80 000	4.6
6	RNA494	12	10	0.15	10.8	2700	2320	70 000	5.3
7	RNA495	13	10	0.15	11.8	2960	2690	60 000	5.9
8	RNA496	15	10	0.15	13.8	3960	3420	50 000	7.4
9	RNA497	17	10	0.15	15.8	4530	3650	45 000	9.3
10	RNA498	19	11	0.2	17.4	6180	5030	40 000	12.6
12	RNA499	20	11	0.3	18	6600	6310	35 000	13.6
14	RNA4900	twenty two	13	0.3	20	9230	10100	30 000	16.5
16	RNA4901	twenty four	13	0.3	twenty two	9660	11100	25 000	18.1
16	RNA6901	twenty four	twenty two	0.3	twenty two	17100	23000	25 000	30
18	RNA49/14	26	13	0.3	twenty four	10600	12800	20 000	19.9
20	RNA4902	28	13	0.3	26	10900	13800	20 000	21.5
20	RNA6902	28	twenty three	0.3	26	19300	28800	20 000	37
twenty two	RNA4903	30	13	0.3	28	11700	15600	18 000	23.5
twenty two	RNA6903	30	twenty three	0.3	28	20800	32500	18 000	40.5
25	RNA4904	37	17	0.3	35	21000	25000	16 000	55.5
25	RNA6904	37	30	0.3	35	35400	48900	16 000	95.5
28	RNA49/22	39	17	0.3	37	21400	28900	14 000	56.5
28	RNA69/22	39	30	0.3	37	36300	56900	14 000	97.5
30	RNA4905	42	17	0.3	40	23700	30700	13 000	64
30	RNA6905	42	30	0.3	40	42100	64300	13 000	111
32	RNA 49/28	45	17	0.3	43	24500	32700	12 000	76.5
32	RNA 69/28	45	30	0.3	43	41800	64800	12 000	133
35	RNA 4906	47	17	0.3	45	25200	34700	11 000	72.5
35	RNA 6906	47	30	0.3	45	43000	69000	11 000	125
40	RNA 49/32	52	20	0.6	48	31200	47800	10 000	96
40	RNA 69/32	52	36	0.6	48	53500	95700	10 000	172
42	RNA 4907	55	20	0.6	51	32000	50100	9 500	113
42	RNA 6907	55	36	0.6	51	54900	100000	9 500	200
45	RNA 49/38	58	20	0.6	54	33600	54600	9 000	120
48	RNA4908	62	twenty two	0.6	58	41600	67400	8 500	152
48	RNA6908	62	40	0.6	58	71300	135000	8 500	275
50	RNA49/42	65	twenty two	0.6	61	42500	70300	8 000	174
52	RNA4909	68	twenty two	0.6	64	43500	73300	7 500	197
52	RNA6909	68	40	0.6	64	74600	147000	7 500	355
55	RNA49/48	70	twenty two	0.6	66	44300	76300	7 500	188
58	RNA4910	72	twenty two	0.6	68	46200	82100	7 000	179
58	RNA6910	72	40	0.6	68	79200	164000	7 000	320
60	RNA49/52	75	twenty two	0.6	71	47100	85100	6 500	205
63	RNA4911	80	25	1	75	57600	97200	6 500	265
63	RNA6911	80	45	1	75	98700	194000	6 500	475
65	RNA49/58	82	25	1	77	58900	101000	6 000	275
68	RNA4912	85	25	1	80	60200	105000	6 000	285
68	RNA6912	85	45	1	80	103000	211000	6 000	510

Packing & Delivery

FAQ

Q:Are you a factory or a trading company?
A: We have our own factory. The type of our company is factory + trade.

Q: Why choose us?
A: 1. We have the experience of bearing manufacturing more than 10 years.
2.The quality of our products can be ensure.
3. We can provide first hand price and OEM service.
4. The lead time is short.

Q: What are your main products?
A:Our main products are various bearing series,linear guide rail series, , linear shaft series and ball screw series. We focus on bearing and linear motion series.

Q:Your product certifiexcavatorions?
A: ISO 9001:2008, RoHS,CE,SGS etc.

Q: Can I have a sample order?
A: Yes, it is available to check quality first. Mixed samples are also acceptable.

Q: What about the lead time?
A: 3-7 days for samples, 3-4 weeks for mass production.

Q:What is your payment method?
A: We accept T/T, PAYPAL or Western Union, credit card or via ALIBABA Assurance order.

Product Tags:


*From:	Your email address is incorrect!
*To:	ZhongHong bearing Co., LTD.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Needle Roller Bearing
Brand Name:	QIEAL ZH
Model Number:	NA69/32
Certifiexcavatorion:	ISO-9001
Place of Origin:	CHINA
MOQ:	1pc
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1600 per day
Delivery Time:	5-8 work days
Packaging Details:	According to customer requirements
Bore Size:	5 - 68 mm
Type:	Needle
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Printing
Precision Rating:	P6
Seals Type:	Open
Material:	Chrome Steel
Outer him.:	11-85 mm
Package:	Roller pack + Carton Box
Appliexcavatorion:	agriculture machine, etc
Width:	10-45 mm
Inner him:	5-68 mm
