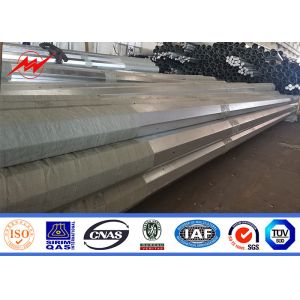

Milky Way Electrical Steel Tubular Pole Self Supporting Metal Utility Poles

Categories Steel Tubular Pole
Brand Name: milky way
Model Number: 69KV
Certification: ISO9001:2015
Place of Origin: JIANGSU,CHINA
MOQ: ONE CONTAINER
Price: USD 130-180POLE
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000POLES/MOUTH
Delivery Time: ALWAYS 20DAYS
Packaging Details: The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
MATERIAL: S355JR
APPLICATION: ELECTRICITY DISTRIBUTION
THICKNESS: 2.5-10MM
SHAPE: POLYGON
GALVANIZATION: ASTM A123,average coationg not less than 85um
WELDING: AWS D1.1,penetration 100%
LIFETIME: 50 YEARS
WIND SPEED: 160KM/H
ULTIMATE TENSILE STRENGTH: 490-620MPA
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Milky Way Electrical Steel Tubular Pole Self Supporting Metal Utility Poles

MilkyWay Electrical Steel Tubular Pole Self Supporting / Metal Utility Poles


TypeStraight Pole ,Tensile Pole ,Turn Pole
Suit forElectricity distribution
ShapeConoid ,Multi-pyramidal,Columniform,polygonal or conical
Material

Usually Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,

SS400, SS490, to ST52-

Lamp power

20 W- 400 W (HPS/MH)

220V (+-10%) /50Hz

Torlance of the dimenstion+- 2%
Power10 KV ~550 KV
Safety Factor

Safety factor for conducting wine : 8

Safety factor for grounding wine : 8

Design Load in Kg300~ 1000 Kg appliced to 50cm from the to pole
Marks

Nane palte through rivert or glue ,engrave ,emboss as per

customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,color polyester

power or any other standard by client required.

Joint of PolesInsert mode,innerflange mode,face to face joint mode .
Design of poleAgainst earthquake of 8 grade
Wind Speed160 Km/Hour
Minimum yield strength355 mpa
Minimum ultimate tensile strength490 mpa
Max ultimate tensile strength620 mpa
StandardISO 9001
Length of per sectionWithin 14m once forming without slip joint
Welding

We has past flaw testing.Internal and external double welding makes

the welding beautiful in shape Welding Standard :AWS ( American

Welding Society ) D 1.1

Thickness1 mm to 30 mm
Production Process

Rew material test → Cuttingj →Molding or bending →Welidng

(longitudinal )→Dimension verify →Flange welding →Hole drilling

→Calibration → Deburr→Galvanization or powder coating ,painting

→Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,

anyway also can following by client required , each 40HC

or OT can loading how many pcs will calculation base on the client

actually specification and data.


Inspection:


Milky Way Transmission Electrical Steel Tubular Pole Self Supporting / Metal Utility Poles 0


Description:


Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.


We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on.


Milky Way Transmission Electrical Steel Tubular Pole Self Supporting / Metal Utility Poles 1


Our Servises:


1 Reply your inquiry in 24 working hours.


2 Experienced staffs answer all your questions in fluent English.


3 Customized design is available. UEM&UBM are welcomed.


4 Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.


5 Special discount and protection of sales are provided to our distributor.


6 Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.


7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.


8 As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.


if you have any question or need additional information ,pls feel free to contact me !
