| Categories | Industrial Transfer Trolley |
|---|---|
| Brand Name: | Perfte |
| Model Number: | Rail Ladle Transfer Car |
| Certification: | CE ISO SGS |
| Place of Origin: | Henan China |
| MOQ: | 1 |
| Price: | USD8000-5000/set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30sets/week |
| Delivery Time: | 30 days after receiving deposite |
| Packaging Details: | Trap and wooden case |
| Product name: | 20ton Transfer Car-Industrial Ladle Transfer Car on Rail with High Temperature and Heat Insulation Material |
| Wheel base(mm): | 1200-7000 |
| Capacity: | 2-150 |
| Wheel quantity: | 4-8 |
| Motor power(Kw): | 1-15 |
| Running speed(m/min): | 0-25 |
| Running distance(m): | 3.2-6.5 |
| Rated Load(t): | 2-150 |

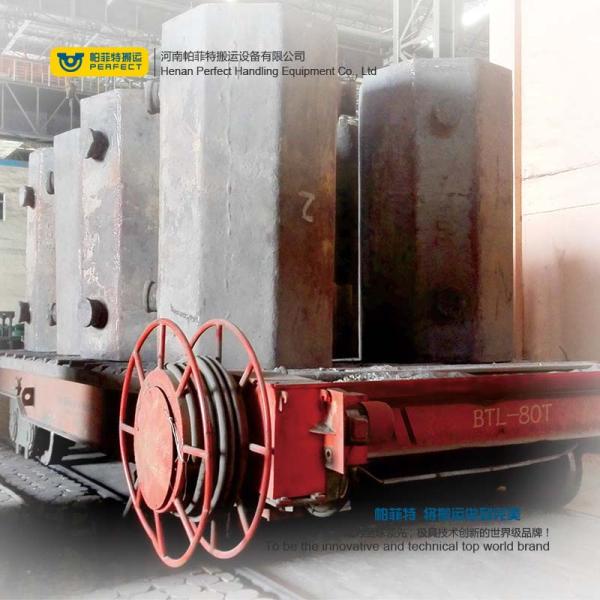

20ton Transfer Car-Industrial Ladle Transfer Car on Rail with High Temperature and Heat Insulation Material
This series 20ton Transfer Car-Industrial Ladle Transfer Car on Rail with High Temperature and Heat Insulation Material is powered by battery, traveling cable, rail, generator or other way.. This series Rail Electric Vehicle is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track. Also, Rail Electric Vehicle On Rail is specially designed to cooperate with crane, which has been applied in many factory to transfer conductor or materails from one workshop to another. The Rail Electric Vehicle has a feature of low height, heavy duty, safe security and other advantages.
Advantages of 20ton Transfer Car-Industrial Ladle Transfer Car on Rail with High Temperature and Heat Insulation Material
1.Rail Electric Vehicle is Anti-high temperature
2.Rail Electric Vehicle is powered by battery
3.With lifting holes, Rail Electric Vehicle is convenient to
shipment
4.The Rail Electric Vehicle has a feature of stable start, big
starting power, long lifetime
5.The Rail Electric Vehicle can run on the L-form track or S-form
track or curved track
6.Running distance of Rail Electric Vehicle is unlimited
7.Safe and convenient operation is available for Rail Electric
Vehicle
8.High using frequency for Rail Electric Vehicle
9.Electric Flat Cart is suitable for bad environment and explosion environment
10.The Rail Electric Vehicle is convenient for operation and
maintaince
Main Components in 20ton Transfer Car-Industrial Ladle Transfer Car on Rail with High Temperature and Heat Insulation Material
Technical parameters of 20ton Transfer Car-Industrial Ladle Transfer Car on Rail with High Temperature and Heat Insulation Material
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Application and usage of the 20ton Transfer Car-Industrial Ladle Transfer Car on Rail with High Temperature and Heat Insulation Material
The 20ton Transfer Car-Industrial Ladle Transfer Car on Rail with High Temperature and Heat Insulation Material is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
|
