| Categories | Temperature Cycling Chamber |
|---|---|
| Brand Name: | ASLI |
| Model Number: | HL-150-C |
| Certification: | CE , ISO , SGS |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
| Delivery Time: | 20workdays |
| Packaging Details: | standard export plywood case |
| Internal Dimension: | W500*H600*D500mm |
| Volume: | 150 Liters |
| Temperature Range: | -20~150C |
| Cooling Method: | Air Cooled |
| Compressor: | Bizer |
| Function: | Climate Test |
| Controller: | TT5166 |
| Application: | automobile, plastic, metal industries |
Air Cooled Programmable Climate High Low Thermal Cycling Chambers
Air Cooled Programmable Climate High Low Thermal Cycling Chambers Technical Parameters:
| Model | HL-80 (A~F) | HL -150 (A~F) | HL -225 (A~F) | HL -408 (A~F) | HL -800 (A~F) | HL -1000 (A~F) | |||||
| Internal DimensionsWxHxD (mm) | 400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000 x800 | 1000x1000 x1000 | |||||
External Dimensions WxHxD (mm) | 950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000 x1450 | 1600x2100 x1450 | |||||
| Temperature Range | Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 150℃ | ||||||||||
| Analytic Accuracy/Distribution Uniformity of Temperature | 0.1℃ /±2.0℃ | ||||||||||
| Control Accuracy of Temperature | ±0.5℃ | ||||||||||
| Temperature Rising/Falling Velocity | Temperature rising approx. 0.1~3.0℃/min ; temperature falling approx. 0.3~1.0℃/min; ( The Falling Speed Rate Min.1.5℃ per minute is a special optional condition) | ||||||||||
| Internal and External Material | Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. | ||||||||||
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | ||||||||||
| Cooling System | Wind cooled or water cooled,single segment compressor for -40℃, double segment compressor for -70℃ | ||||||||||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, Over-humidity and over-temperature protection switch, fuses, fault warning system | ||||||||||
| Optional Accessories | Inner door with operation hole(Optional), Recorder(optional),Dehumidifier | ||||||||||
| Compressor | French Tecumseh Brand,Germany Bizer Brand | ||||||||||
| Power | AC 220V, 1ph 3 Lines,50/60HZ ; AC 380V ,3 ph 5 Lines,50/60HZ | ||||||||||
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 | |||||
Air Cooled Programmable Climate High Low Thermal Cycling Chambers
is used to test various types of materials for their tolerances of
heat, cold, dry, humidity. It is applied for quality inspection for
all types of electronic products, electric appliance, and products
from communication, instrument, automobile, plastic, metal, food,
chemical, building materials, medical and aerospace industries.
Inner door with operation hole (optional)
Entrance hole for test wire, Dia.50mm or 100mm
Sample Shelves, two layers
RS-232 or RS-485 communication Interface
Air Cooled Programmable Climate High Low Thermal Cycling Chambers Features:
1. Graceful appearance, circularly shaped body, surface treated
with mist strips, and plane handle with no reaction. Easy to
operate, safe and reliable.
2. Rectangular double-paned viewing window for observation of
sample under test,with interior lights
3. Double-layer-insulated airtight doors, able to insulate the
internal temperature effectively.
4. Water supply system that is externally connectable, convenient
for refilling water into the humidifying pot and automatically
recyclable.
5. French Tecumseh brand is used as compressor, with environment
friendly refrigeration R23 or R404A

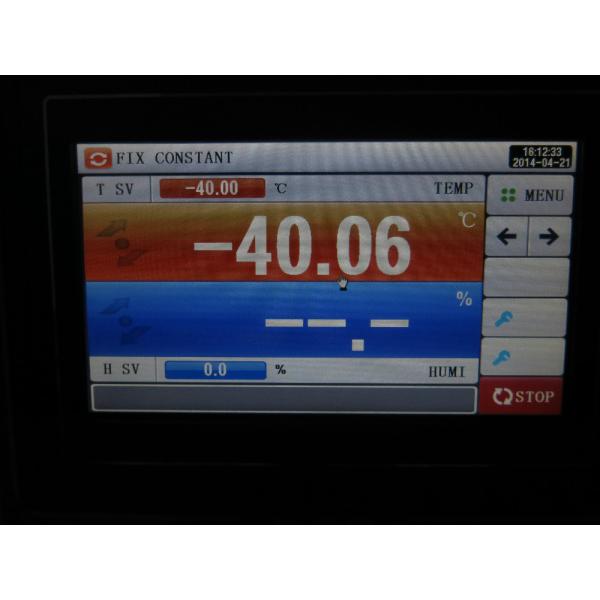

6. LCD display screen is used for the control unit, capable of
displaying set point and actual value at the same time
7. The control unit has the functions of multiples segment program
editing function
8. Quick or ramp rates control of temperature and humidity.
9. Casters are provided for ease of mobility, with strong
positioning screws.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past
28 years, we devoted to simulation environmental testing equipment
and Mechannical vibration and shock testing machine.Air Cooled
Programmable Climate High Low Thermal Cycling Chambers is our star
products , and we had obtained the CE certification for this
machine .
ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
