| Categories | Corrosion Test Chamber |
|---|---|
| Brand Name: | ASLI |
| Model Number: | SH-120 |
| Certification: | CE, ISO , SGS |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Delivery Time: | 20 workdays |
| Packaging Details: | wooden case |
| internal dimension: | W1200*H500*D800mm |
| volume: | 480L |
| Compressed Air Pressure: | 1.0~6.0 Kgf |
| spraying form: | Continuous Spraying |
| Application: | auto spare parts |
| material: | PVC panel |
=click for details>>>>>>> salt spray test chamber SH-120.pdf
Corrosion test equipment adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.
Model | SH-90 | SH-120 | SH-160 |
Internal Dimension WxHxD (mm) | 900x500x600 | 1200x500x800 | 1600x500x800 |
External Dimension WxHxD (mm) | 1400x1200x900 | 2100x1400x1300 | 2300x1400x1300 |
Lab Temperature | Saline test (NSS ACSS) 35±1 ℃ ;Corrosion Test (CASS)50±1 ℃ | ||
Pressure Bucket Temperature | Saline test method (NSS ACSS) 47±1 ℃ / Corrosion Test (CASS)63±1 ℃ | ||
Lab Capacity(L) | 270 | 480 | 640 |
Saline Capacity(L) | 25 | 40 | 40 |
Saline Concentration | 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O | ||
Compressed Air Pressure(Kgf) | 1.0~6.0 | ||
CNS: 3627, 3385, 4159, 7669, 8886.
JIS: D0201, H8502, H8610, K5400, Z2371.
ISO: 3768, 3769, 3770.
ASTM: 8117, B268.
Salt Spray Test Cabinet Specifications
1. Adopt automatically or manually adding water system, can watered
by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping
naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short
storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of
±0.1℃
5. Laboratory direct steam-heated, even heating speed, reducing the
standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and
humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2 (Liquid)

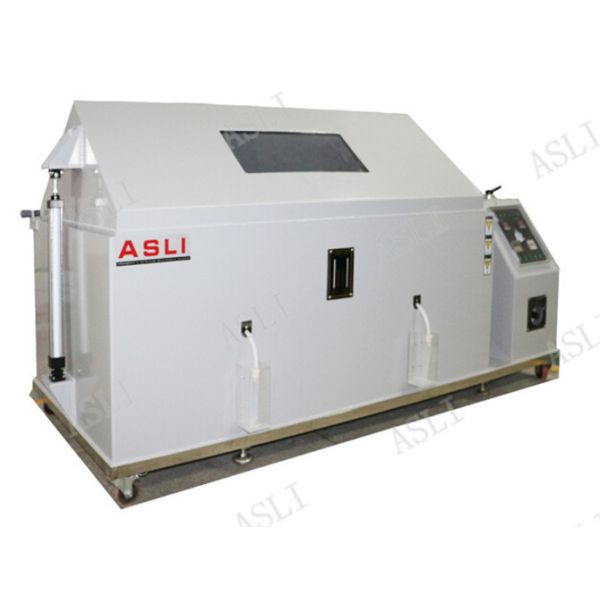

Aerospace Salt Spray Testing Equipment/Salt Spray Test Cabinet
