4.5m3/H Air Conditioner Heat Exchanger Stainless Steel Tube 304L Coil Evaporator

Categories	Air Conditioner Heat Exchanger
Brand Name:	OEM/ODM
Model Number:	Customized
Certification:	CE,ROHS,ISO9001
Place of Origin:	Jiangsu ,China
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	10000 pcs per month
Delivery Time:	10-15 days ,depends on the quantity
Packaging Details:	Wooden case or customized
Medium:	Steam - Air
connection Material::	Copper
Structure:	Tube Heat Exchanger
Liquid flow rate:	customized
Maximum working pressure:	Variable
Condition:	New
Weight:	5-500KG Customized
Dimension(lwh):	Custimized Made

Contact Now

Add to Cart

Company Info.

Changzhou Aidear Refrigeration Technology Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

4.5m3/H Air Conditioner Heat Exchanger Stainless Steel Tube 304L Coil Evaporator

Stainless steel tube 304L coil evaporator for water tank cooling or heating systems 10HP

Overview

Liquid Flow Rate:4.5m3/h

Maximum Working Pressure:2.0Mpa

Weight:18kg, 18kg

Warranty:1 year

Applicable Industries:Hotels, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, chemical industry

Condition:New

Place of Origin:Jiangsu, China

Brand Name:Aidear /OEM

Structure:Tube Heat Exchanger

Voltage:220V/380V

Dimension(L*W*H):300mm*300mm*480mm

Certification:CE, ROHS,ISO9001

After-sales Service Provided:Video technical support, Online support

Working Temperature Range:-10°C to 50°C

Product Name:Tube coil Heat Exchanger

Application:Refrigeration Parts

Tube material:SS304/SS316/SS316L/Carbon Steel/Cast Iron

Medium:Steam - Air

Feature:High Heat Transfer

Usage:Evaporative Air Cooling System

connection Material:Copper

Heat exchanger type:Tube Heater Exchanger

Detail parameters

Model	HE-CT-010CA	HE-CT-015CA	HE-CT-020CA
Heat exchanger power	10HP	15HP	20HP
Cooling capacity	35kw	52.5KW	70KW
Heating capacity	50kw	75KW	100
Media inlet diameter(mm)	25 copper	25	25
Media outlet diameter(mm)	32 copper	32	38
Tube material	Stainless steel 304	Stainless steel 304	Stainless steel 304
Tubediameterthicknesslength(mm)	190.740000	190.760000	190.780000

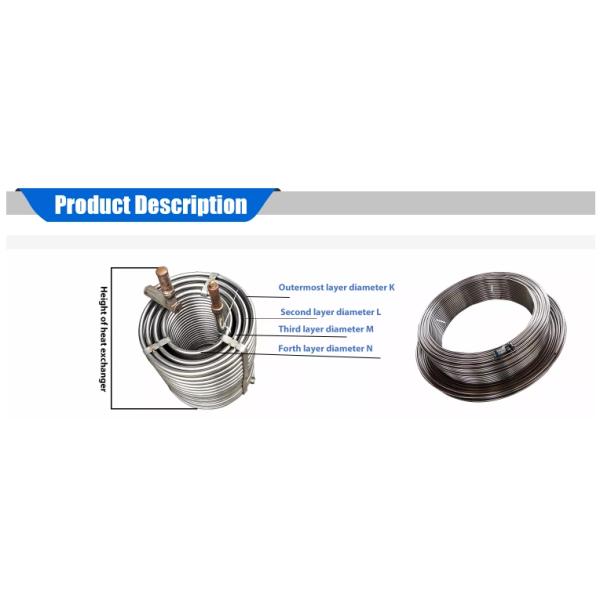

Diameter K(mm)	300	350	400
Dimension L(mm)	250	300	350
Diameter M(mm)	200	250	300
Diameter N(mm)	150	200	250
Weight (kg)	18kg	22kg	28kg
Note:The above parameters are based on our regular products. Aidear can design heat exchangers that fully meet customer needs according to the size of the water tank, heating power, refrigeration power, connection specifications of water chillers, etc.

Supply Ability

Supply Ability:10000 Set/Sets per Month

Packaging & Delivery

Selling Units:Single item

Single package size: 15X43X43 cm

Single gross weight:0.621 kg

Package Type:Wooden package.

Shipping:: Support Sea freight

Lead Time:

Quantity(Units)	1 - 3000	>3000
Est. Time(days)	14	Negotiable
