24V 310W High Head 18m Brushless DC Water Pump For LongHaul Trucks Cooling Systems

Categories Brushless DC Water Pump
Brand Name: junqi
Model Number: JP-BL43-250K
Certification: IS9001, TS16949,CE
Place of Origin: China
MOQ: 1 set
Price: USD230.78/PC - USD200
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 1000set/month
Delivery Time: base on order,
Packaging Details: suitable for export
Model: JP-BL43-250K
Material: PPS+GF, stainless
Voltage: 24VDC ( 18V-32VDC)
Power: 310W
Rated Flow Rate: 3000L/H
Head: 18M
Application: Hybrid bus, electric vehicles, Electric Trucks
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

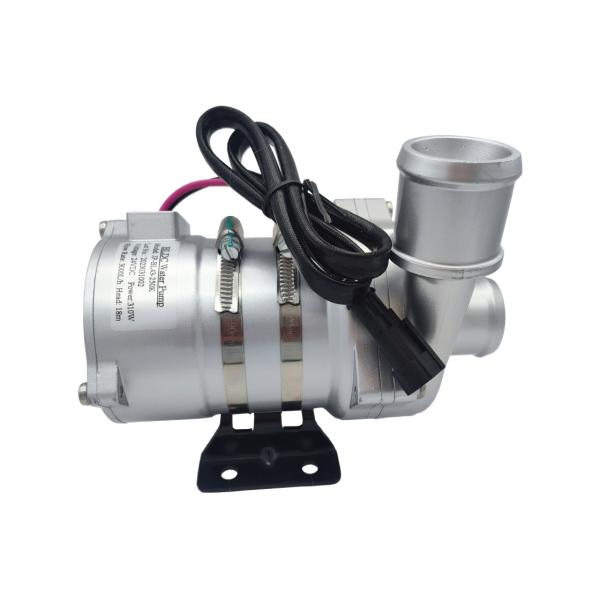

24V 310W High Head 18m Brushless DC Water Pump For LongHaul Trucks Cooling Systems

Junqi 24V 310W high head 18m Brushless DC Water Pump For LongHaul Trucks cooling Systems



■ Applications
Widely used in hybrid bus, hybrid passenger car, electric vehicles, LongHaul Trucks, Electric Drayage Truck, Logistics and Freightliner Electric Trucks, and other heating and cooling circulation system.

■ Features
◆ Centrifugal pump
◆ Magnetic force transmission
◆ High efficiency brushless DC motor, low power consumption, high efficiency, long service life.
◆ With wide range operating temperature
◆ PWM signal speed controlling
◆ Diagnostic signal output
◆ With constant flow controlling
◆ Reverse polarity protection
◆ Dry running protection
◆ Over Voltage, over current protection
◆ Overload, over temperature protection


Technical parameter

ModelJP-BL43-250K
Rated Voltage (VDC)24VDC
Working Voltage Range18V~32VDC
Flow Rate/HeadWhen Flow=3000L/h, H=18m
Rated Power310W
Service Lifemore than 20000h
Protection LevelIP68
Noise≤60dB(A)
Weight1950g (wihout bracket)




Connector model and the corresponding electrical properties (see figure 3):


AMP282104-112
24v (Red)GND(Black)

Figure 3

Attentions
1. Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.
2. The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.
4. Please use the pump far from the dusty environment, the dust is harmful to reduce the service life
5. Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump

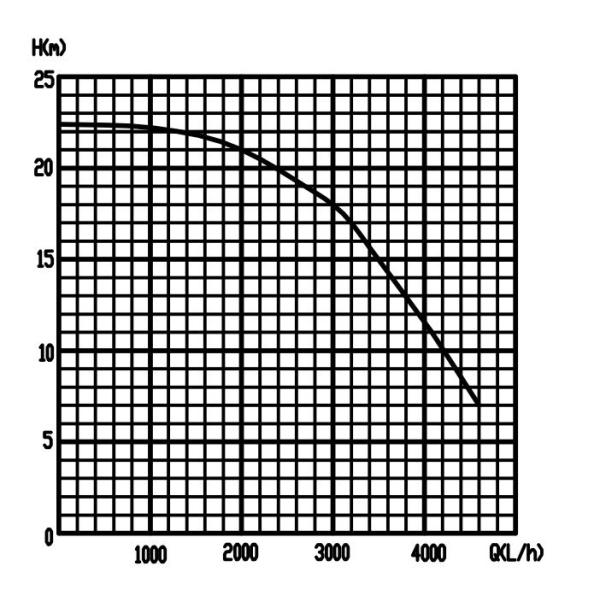

Performance parameter

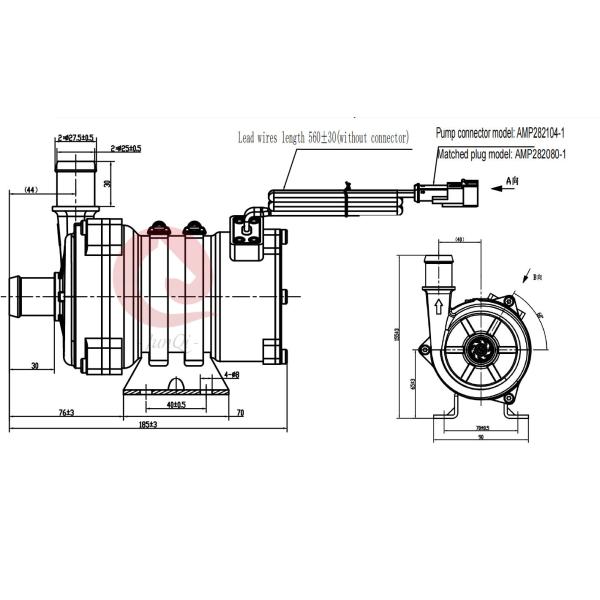

External dimension
