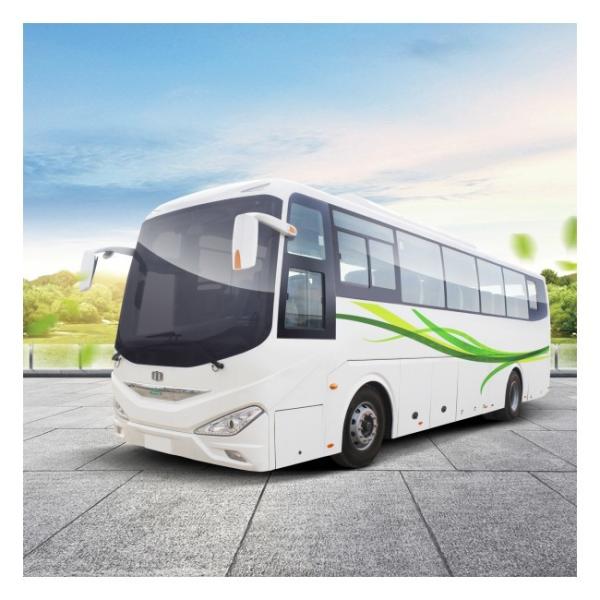

Luxury Tourist Coach Euro 4 Diesel Coach Body Design / Bus Body CKD
Comfortable driving, stylish appearance, large passenger capacity and high fuel efficiency.
It's suitable for carrying tourists, workers and students.
Specification:
| Overall specs | Passenger capacity | 45+1 seats | Engine specs | Manufacturer | Yuchai | |
| Vehicle size (mm) | 10990*2500*3600 | Model | YC6L280-40 | |||
| Wheel base (mm) | 5700 | Position | Rear | |||
| Front/Rear overhang | 2290/3000 | Engine type | 6 cylinders in line, turbocharged, water cooling, inter-cooling | |||
| Front/Rear tread | 2060/1865 | Max.power(kw/rpm) | 206 | |||
| Approach/Departure(º) | 10/9 | Max. torque (N.m/rpm) | 1100 | |||
| Max. Grade-ability(%) | ≥20% | Displacement(L) | 8.424 | |||
| Top speed (km/h) | 110km/h | Fuel | Diesel | |||
| Curb weight (kg) | 11000 | Emission | Euro 4 | |||
| Gross weight (kg) | 17700 | |||||
| Item | Specs | Remarks | ||||
| Chassis | Front axle | DANA | ||||
| Rear axle | DANA | |||||
| Transmission | Manual transmission | |||||
| Suspension | Leaf spring | |||||
| Steering | Integral power steering | |||||
| Braking | Front disc and rear drum ; dual circuit air brake, WABCO ABS,slack adjuster | |||||
| Tyre | 11R22.5 steel rim Tubeless radial tire | |||||
| Battery | Maintenance-free type | |||||
| electronics | AC | 30000kcal/h | ||||
| Defroster | yes | |||||
| Instrument | Bus instrument, English system | |||||
| Audio-system | MP5 TV | |||||
| Lights | Front and rear combination light. Fog light. | |||||
| Monitoring system | CCTV system with 5 cameras | |||||
| Bus facilities | Body | Semi-loaded | ||||
| Passenger door | Front aluminum swing door | |||||
| Window | Sliding side window, laminated front windscreen and tempered rear-shield | |||||
| Passenger seat | 45 artificial leather passenger seats | |||||
| Interior | PVC duct, PVC composite side plate. | |||||
| Floor and floor cover | PVC floor, anti-slippery, flame retardant leather | |||||
| Paint | Solid paint | |||||
| Others | Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in engine cabin,USB connector at driver area,travel record with GPS | |||||
Interiors picture
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A: 1. As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
2. Buses and Coaches CBU, KD kiy,Chassis and Body frames.
3. Spare parts including various charger for EV.
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your
requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
|
