| Categories | Steel Fitting |
|---|---|
| Brand Name: | YUHONG |
| Model Number: | JIS B2312 SUS304 CONCENTRIC REDUCER |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Place of Origin: | CHINA |
| MOQ: | 1PC |
| Payment Terms: | L/C,T/T |
| Delivery Time: | 7 DAYS |
| Packaging Details: | PLYWOOD CASE,PALLET |
| Product Name: | Buttweld Reducer |
| Standard: | JIS B2312 |
| Material: | Stainless Steel SUS304 |
| OD: | 3/4" to 24" |
| WT: | Sch10S To XXS |
| Connection: | Butt Welding |
| Application: | Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc |
| High Light: | JIS B2312 SUS304 Butt Welded Pipe Fitting, Stainless Steel Concentric Reducer |
| Surface: | Black paint, Galvanized |
| Type: | Concentric Reducer, Eccentric Reducer |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

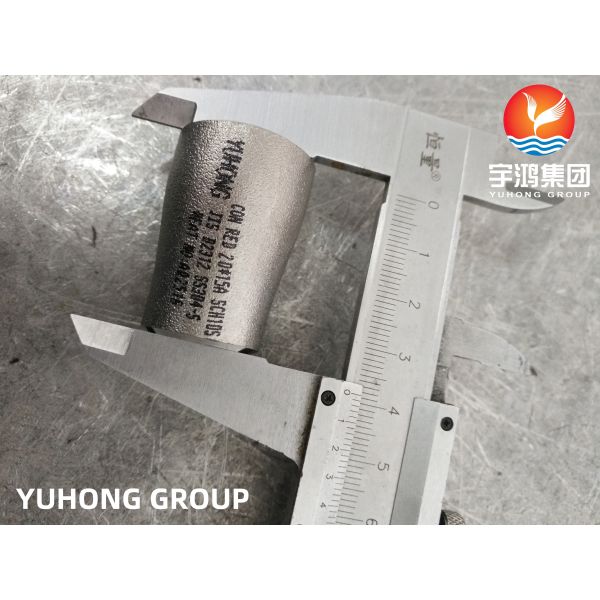

JIS B2312 SUS304 Buttweld Pipe Fitting Stainless Steel Concentric Reducer
YUHONG GROUP is engaged in buttweld pipe fitting manufacturing, including elbow, tee, caps, reducer, stub end. We supply various material grades: stainless steel / duplex steel / nickel alloy. These find application for industry fields use,such as petroleum, power, papermaking, chemical, aviation, boiler heat, exchanger fields ; electric, shipbuilding, construction fileds; foodstuff,medical equipment, and other fields.
The function of both types of reducer is to reduce the line from a larger to a smaller pipe size, this obviously results in an increased flow pressure.
The concentric reducer is manufactured so that both inlet and outlet ends are on a common centre line. The concentric reducer is easier and less expensive to produce but does not allow quite the same versatility as the eccentric reducer. The lengths of both types are fixed by manufacturing standards.
Specification
| Specifications | JIS B2312 SUS304 |
| Pipe Fittings size | Seamless Stainless Steel Butt Weld Fittings: 1/2" - 10" Welded Stainless Steel Butt Weld Fittings: 1/2" - 48" |
| Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560,
BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Pipe Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Pipe fittings Types | Seamless / ERW / Welded / Fabricated |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Connection | Welding |
| Pipe Fittings Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D,
2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Pipe Fittings Size Range | 1/2" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Pipe Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Fittings Test Certificates |
|
| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
Sizes of JIS B2312 Buttweld Reducer
| Size D1 | Size D2 | ||
| DN | NPS | OD (mm) | |
| 20 | 3/4″ | 27.2 | DN15 |
| 25 | 1″ | 34.0 | DN20,DN15 |
| 32 | 1-1/4″ | 42.7 | DN25,DN20,DN15 |
| 40 | 1-1/2″ | 48.6 | DN32,DN25,DN20,DN15 |
| 50 | 2″ | 60.5 | DN40,DN32,DN25,DN20 |
| 65 | 2-1/2″ | 76.3 | DN50,DN40,DN32,DN25 |
| 80 | 3″ | 89.1 | DN65,DN50,DN40,DN32 |
| 90 | 3-1/2″ | 101.6 | DN80,DN65,DN50,DN40,DN32 |
| 100 | 4″ | 114.3 | DN90,DN80,DN65,DN50,DN40 |
| 125 | 5″ | 139.8 | DN100,DN90,DN80,DN65,DN50 |
| 150 | 6″ | 165.2 | DN125,DN100,DN90,DN80,DN65 |
| 200 | 8″ | 216.3 | DN150,DN125,DN100,DN90 |
| 250 | 10″ | 267.4 | DN200,DN150,DN125,DN100 |
| 300 | 12″ | 318.5 | DN250,DN200,DN150,DN125 |
| 350 | 14″ | 355.6 | DN300,DN250,DN200,DN150 |
| 400 | 16″ | 406.4 | DN350,DN300,DN250,DN200 |
| 450 | 18″ | 457.2 | DN400,DN350,DN300,DN250 |
| 500 | 20″ | 508.0 | DN450,DN400,DN350,DN300 |
|
