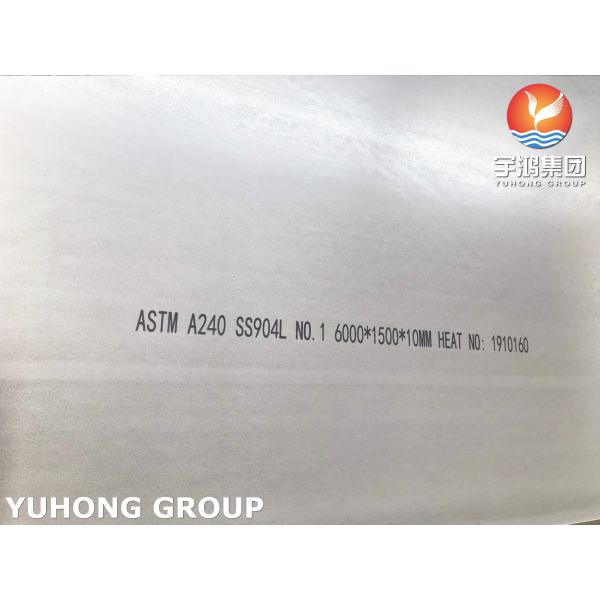

COLD ROLLED PLATE A240/SA240 SS904L NO8904 STAINLESS STEEL SHEET

Overview

Because the carbon content of 904L is very low (maximum 0.020%), there will be no carbide precipitation under general heat treatment and welding conditions. This eliminates the risk of intergranular corrosion after general heat treatment and welding. Due to the high content of chromium, nickel and molybdenum and the addition of copper, 904L can be passivated even in reducing environment, such as sulfuric acid and formic acid. The high nickel content makes it have a lower corrosion rate in the active state. The corrosion resistance of 904L is better than that of conventional stainless steel.
904L steel has high resistance to pitting corrosion. In chloride solution, its crack corrosion resistance is also very good. The high nickel content of 904L reduces the corrosion rate at pits and crevices. When the temperature of ordinary austenitic stainless steel is higher than 60 ℃, it may be sensitive to stress corrosion in a chloride-rich environment. This sensitivity can be reduced by increasing the nickel content of stainless steel. Due to the high nickel content, 904L has high resistance to stress corrosion cracking in chloride solution, concentrated hydroxide solution and hydrogen sulfide rich environment.

SS904L Chemical Composition

SS904L Mechanical Properties

A240 SS904L Stainless Steel Plate Applications:

• Air Pollution Control — scrubbers for coal-fired power plants
• Chemical Processing — process equipment for the production of sulfuric, phosphoric, inorganic and organic acids and the production of phosphate-based fertilizers
• Metallurgical Processing — pickling equipment using sulfuric acid
• Oil and Gas Production — offshore process equipment
• Pharmaceutical Industry — process equipment
• Pulp and Paper — processing equipment
• Seawater and Brackish Water — condensers, heat exchangers and piping systems

A240 SS904L Stainless Steel Plate Test Certificates:

• EN 10204/3.1B,
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc

Material Tests:

• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test
