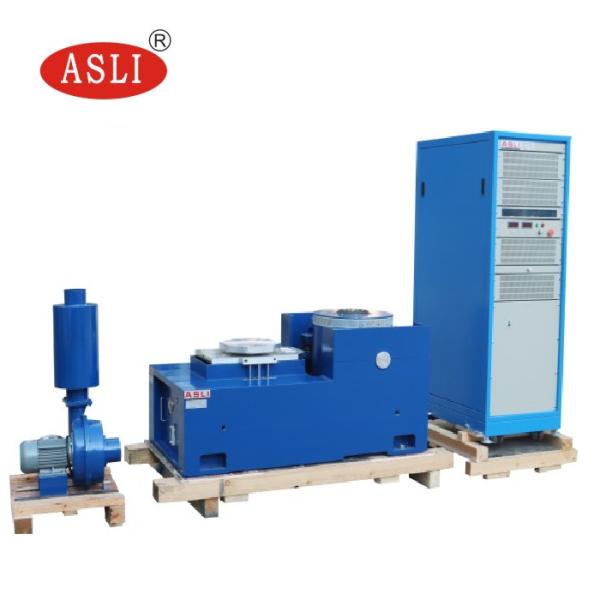

| Categories | Vibration Shaker System |
|---|---|
| Brand Name: | ASLI |
| Model Number: | ES-10 |
| Certification: | CE, ISO, SGS |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | T/T, L/C, Western UnionD/A, D/P |
| Supply Ability: | 100 sets per quarter |
| Delivery Time: | 30~45 days |
| Packaging Details: | PP film + Poly wooden box |
| vibration method: | Sine &Random Vibration |
| application: | Electrical Parts |
| sine force: | 10000N |
| frequency: | 3~3500HZ |
| max. speed: | 1.8m/s |
| vibration direction: | Vertical +horizontal Vibration |
| Company Info. |
| ASLi (China) Test Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
technical parameters:
| Model | Rated Sine  | Random Force (N)  | Frequency (Hz)  | Acceleration (m/s2) | (m/s) | (p-p)mm  | Max. Load (Kg) | moving coil(Kg) | DiA coi l(mm)  |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |



                             |
