Single Convoluted Suspension Air Springs Airsustech Air Ride Springs 1B7070 Cross Goodyear 1B6-530 1B6530

Airsustech Air Ride Springs 1B7070 Cross Goodyear 1B6-530 1B6530 Single Convoluted Supsension Air Springs

Basic Information

Product no.: 1B7070

Convolution: Single

Applications: Industrial Machines Or others

HS Code: 8708809000

Sample: Available

Packing: Strong Carton

Cross Reference

Goodyear: 1B6-530; 1B6 530; 1B6530

Contitech: FS 70-7; FS70-7; FS 70 7

Contitech2681015000
Phoenix: SP 1 B 05; SP1B05; SP 1B 05
Bosch: 822419002
Festo: EB-165-65; EB 165 65; EB16565
Weforma: WBE 200-E1; WBE 200 E1; WBE200E1
Firestone : W01-358-7731; W01 358 7731; W013587731; WO1-358-7731; WO1 358 7731; WO13587731

Specifications and Detailed Technical Parameters:AIRSUSTECH 1B7070

• Nut/blind nut

Top plate screw (nut) teeth: 2×M8×1.25

The screw center distance of the top cover plate: 44.5mm

Screw (nut) teeth of the bottom cover plate:2×M8×1.25

The screw center distance of the bottom cover plate: 44.5 mm

• Air hole/air inlet/air fittings

Air hole/air inlet: G1/4, Centered

• Cover plate

Top plate diameter: 105mm

Diameter of the bottom cover: 105mm

• Bell rubber bellows

Natural Rubber Bellow Diameter: 150mm

Max. OD: 165mm

Stroke: from 50mm to 115mm

• Bumper block/bumper block

No bumper block

• Belt loop/Belt loop

Without belt loop

Other model

Characteristics of low frequency air springs

The low-frequency air spring has a fixed low-hertz frequency, and its stability will not be changed regardless of the change of the load. The shock absorption effect is good, and the effect of imported high-end products will be more significant. Using air as the medium to withstand external resistance, no deformation or strain, excellent sound insulation effect.

Application advantages of low frequency air spring

During long-term industrial production, a large amount of noise will have a huge impact on the surrounding environment and residents, and serious safety accidents may occur. The application of low-frequency air springs can not only effectively control vibration, reduce and eliminate noise pollution, reduce wear between equipment components, increase equipment service life, reduce production safety hazards, thereby improving production efficiency and reducing production costs for enterprises. The low-frequency air spring type has various styles and high cost performance, and can be used in various production environments.

Application

Filling machine
Granulator in solid dosage form
Pulping machine
Filling machine
Packing Machine
Printing machine
Pneumatic Instrument Components
Automatic gas control

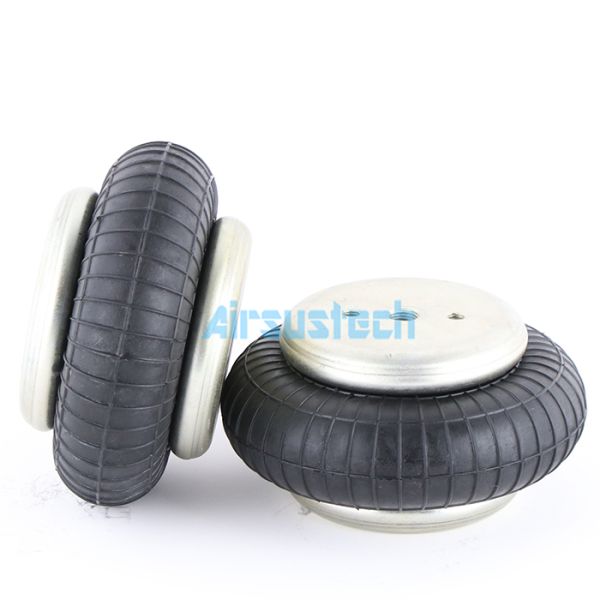

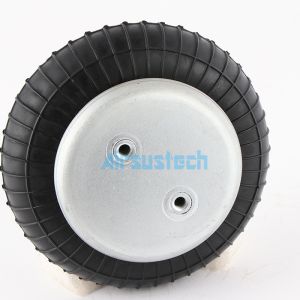

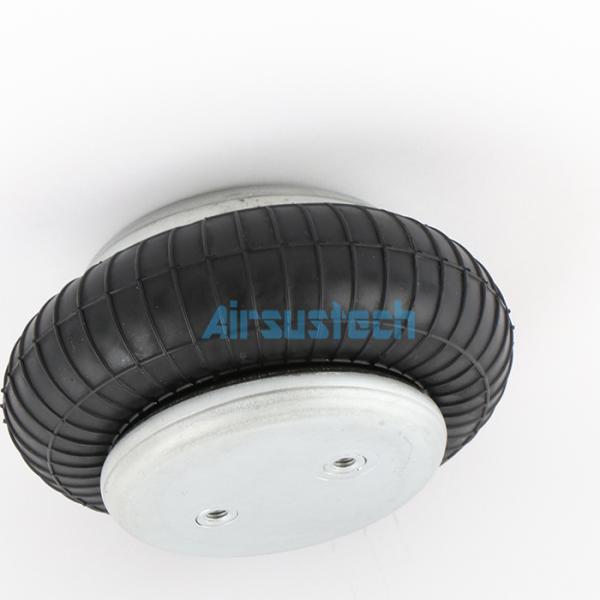

The related picture of 1B7070
