| Categories | Pneumatic Solenoid Valves |
|---|---|

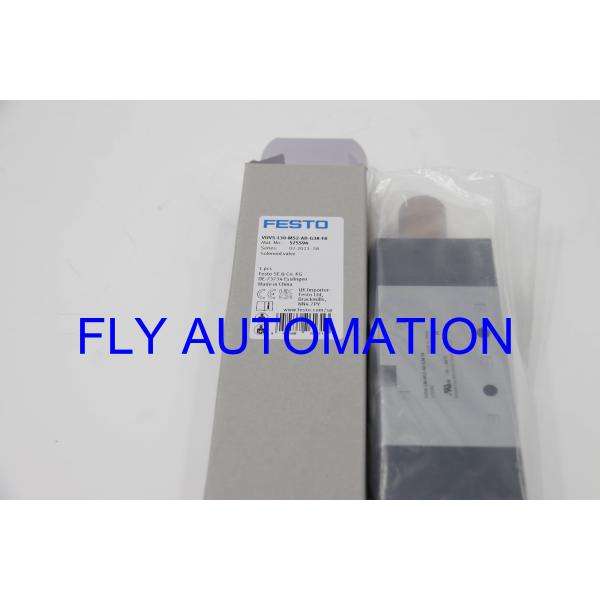

| Brand Name: | FESTO |
| Model Number: | VUVS-L30-M52-AD-G38-F8 |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | EXW USD80-100 |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Delivery Time: | 5-7working days |
| Packaging Details: | Plastic bag, Carton |
| Type: | VUVS-L30-M52-AD-G38-F8 |
| Part no: | 575594 |
| Brand: | FESTO |
| Weight: | 450 g |
| Ambient temperature: | -10°C-60°C |
| Material housing: | Die-cast aluminium Painted |
| Company Info. |
| Airwolf Automation |
| Verified Supplier |
| View Contact Details |
| Product List |
About product
1.A reliable, robust valve with a long service life.
2.Operating voltage can be easily altered by changing the solenoid coil (VUVS-L and VUVS-LT).
3.In-line valves can be used as individual valves or manifold valves.
4.Variable pressure zones.
5.Wide range of mounting options.
6.Reliable servicing thanks to valves that can be replaced quickly and easily.
7.Universal valve, sturdy and durable.
8.Low cost with no performance limitations.
9.Can be used as individual valves or manifold valves VTUS.
Technical Data
| Valve function | 5/2-way, monostable |
| Type of actuation | Electric |
| Valve size | 31 mm |
| Standard nominal flow rate | 2300 l/min |
| pneumatic working port | G3/8 |
| Operating pressure | 0.25 MPa ... 1 MPa |
| Operating pressure | 2.5 bar ... 10 bar |
| Design | Piston gate valve |
| Type of reset | Pneumatic spring |
| Approval | c UL us - Recognized (OL) |
| Certificate issuing authority | DNVGL-TAA000011J |
| Nominal size | 9.4 mm |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting Non-detenting |
| Type of piloting | Pilot actuated |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Symbol | 00991023 |
| lap | Positive overlap |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10°C-60°C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C-60°C |
| Product weight | 450 g |
| Type of mounting | Either: On manifold rail With through-hole |
| Breather connection | Not ducted |
| Pilot exhaust port 84 | M5 |
| Pneumatic connection, port 1 | G3/8 |
| Pneumatic connection, port 2 | G3/8 |
| Pneumatic connection, port 3 | G3/8 |
| Pneumatic connection, port 4 | G3/8 |
| Pneumatic connection, port 5 | G3/8 |
| Note on materials | RoHS-compliant |
| Material seals | HNBR NBR |
| Material housing | Die-cast aluminium Painted |
| Material piston slide | Wrought aluminium alloy |
| Material screws | Nickel-plated steel |
Duct separation
There are many models. Please hurry to me!
|
