| Brand Name: | Linsheng Auto II MaxM |
| Model Number: | LS-PAT-29 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | negotiable |
| Price: | 29-299 USD/PCS |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 10000 PCS per month |
| Delivery Time: | 14 Days |
| Packaging Details: | Paper gift box, 8 PCS/Carton |
| Product name: | Electric Linear Actuators |
| Voltage Related: | 24V DC; 24V DC (PTC); 24V DC (3-brush motor) |
| Max load: | 8,000N (push); 3,000N (pull) |
| Max. speed at max. load: | 3.5mm/s |
| Limit switch: | Built-in |
| Ip grade: | IP66W |
| Company Info. |
| LINSHENG INTERNATIONAL ENTERPRISE CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
The LS-PAT-29 is one of our great medical grade linear actuators. It can lift up to 8000N and its IP rating is up to IP66W. The LS-PAT-29 is a high quality solution for medical applications such as medical beds, medical chairs, or home care options.
| Linear Actuator | LS-PAT-29 |
| Voltage of motor | 24V DC; 24V DC (PTC); 24V DC (3-brush motor) |
| Maximum load | 8,000N (push); 3,000N (pull) |
| Max. speed at max. load | 3.5mm/s |
| Limit switch | Build in |
Ip grade | IP66W |
Applications:
Medical applications such as medical beds, medical chairs, or home care options.

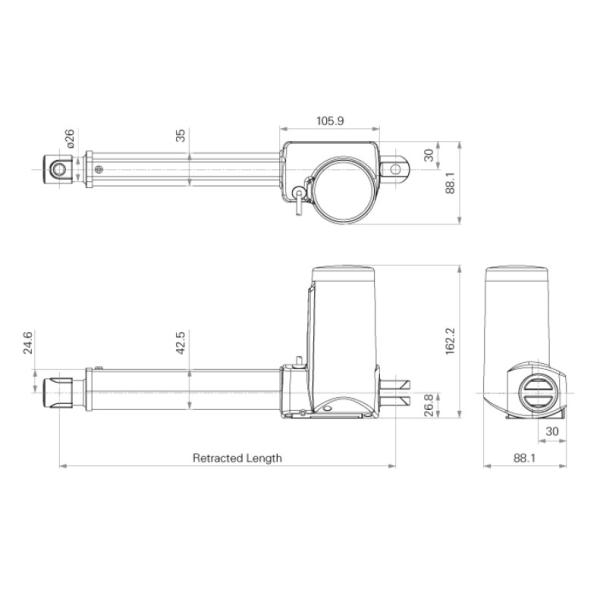

Drawing Of Electric Linear Actuator
Standard Dimensions (mm)

|
