GB/T 33364-2016 Single Lay Strand Offshore Mooring Steel Wire Rope(Dia96~160mm)

GB/T 33364-2016 Single Lay Strand Offshore Mooring Steel Wire Rope

Description:

GB/T 33364-2016 Single Lay Strand Offshore Mooring Steel Wire Rope steel core mainly used for long tern mooring,such as positioning and anchoring of mobile drilling platform, floating production unit and offshore loading system which longer than 5 years. It shall be an independent wire rope(IWRC) and has large metal cross-sectional areas, providing high tensile strength-to-diameter ratios and torque balance at high axial stiffness and tension.All wires in a strand constructed in the same direction of lay.Because of its structure, the seawater into the center of the wire rope is much more difficult than the ordinary wire rope, more suitable for plastic coating to improve corrosion resistance.

Main Technical Specifications:

1.Standard: GB/T 33364-2016

2.Material: Galvanized high tesile steel wire

3.Diameter: 96mm to 160mm

4.Grade:1x271~1x547

5.Type: IWRC

6.Surface treatment:bright,Zinc-coated,Plastic coated, Rust-proof greasing

7.Test: Destructive and Tension test

8.Classification Certificates: RINA ,BV ,CCS ,CR ,NK ,ABS ,DNV ,LR and Mill Certificate

9.Packing:On reels or in coil,as you need.

10.Application: long tern mooring of positioning and anchoring of mobile drilling platform, floating production unit and offshore loading system

11.Advantages: Light weight, high strength, can withstand impact load, high corrosion resistance

Main Technical Parameters:

GB/T 33364-2016 Single Lay Strand Grade 1x271~1x547 Offshore Mooring Steel Wire Rop

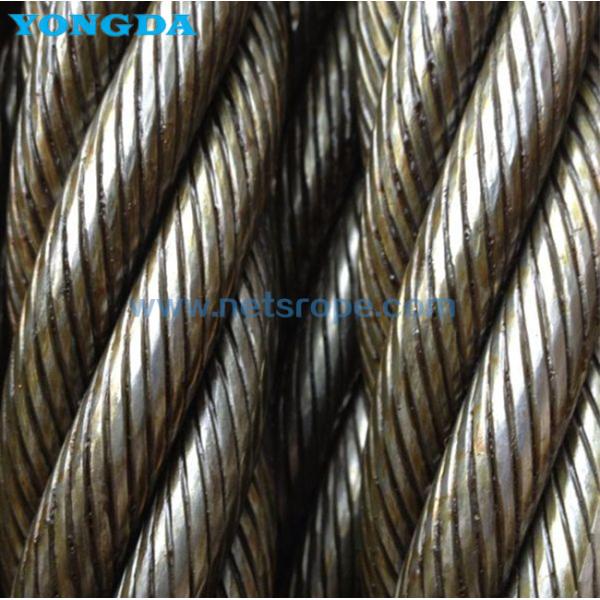

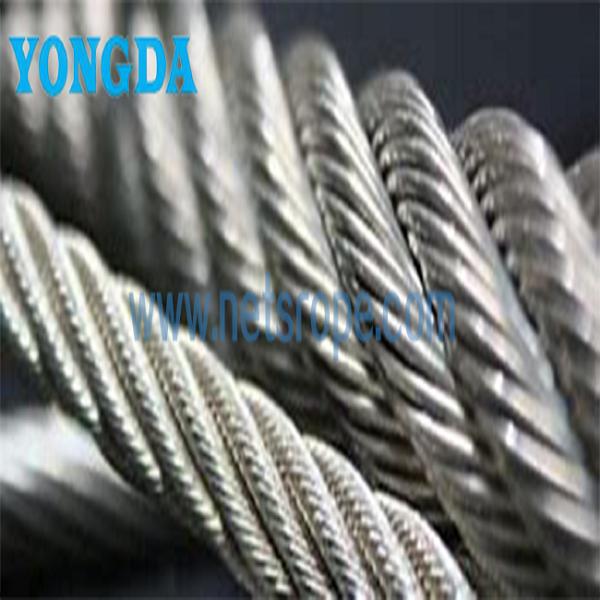

Product of GB/T 33364-2016 Single Lay Strand Offshore Mooring Steel Wire Rope:

Yongda Cord Net Co. Ltd. was founded in 1984 and is located in Jiangyin City, Jiangsu Province, China, approximately 150 kilometers from Shanghai. We have a complete range of production equipment, including spinning machines, twisting machines, strand making machines, strand piecing machines, three-strand rope machines, six-strand rope machines, eight-strand cable machines, and multi-strand rope. Our product range includes three-strand ropes, six-strand ropes, Atlas cables, polymer polyethylene fiber ropes, eight-strand polypropylene filament ropes, nylon ropes, nylon compound silk ropes, multi-strand braided cables, boarding rope ladders, pilot soft ladders, cabin canvas, cabin nets, cargo nets, safety nets, gangway nets, flame retardant nets, climbing nets, gangway handrail ropes, tiger spot ropes, manila ropes, and more.

Since 2020, we have expanded our offerings to include entertainment and leisure equipment, leveraging our expertise in rope and net manufacturing. This includes amusement products such as rope courses, climbing nets, and comprehensive amusement facilities.

Our company occupies approximately 8000 square meters of workshop space and includes a testing laboratory, six departments, and 50 employees, including 10 management and technical staff. Our annual sales reach 40 million RMB.

We are recognized by the National Trademark Office and hold ISO9001-2008 Quality Assurance Certificate. Additionally, we have obtained factory approvals from DNV, CCS, BV, and NKK classification societies and can acquire product inspection certificates from all IACS members such as LR, ABS, DNV, BV, NK, CCS, KR, IRS, RMRS, PRS, CRS, as well as third-party certifications like EC and TUV.

Our enterprise spirit is founded on "Self-Confidence, Hard work, Honesty, and Trustworthiness." Over the past four decades, our major clients have included shipyards, shipping companies, offshore entities, port terminals, fishing, aquaculture, entertainment and leisure, agriculture, mining, electric, yacht, and sports industries. Customers trust our product quality and service, leading to a solid global reputation.

We are customer-oriented, providing reliable quality and competitive prices.
