| Categories | Corner Radius End Mill |
|---|---|
| Brand Name: | RLD Tools |
| Model Number: | HRC50-12R1 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | EXW 13USD/negotiable |
| Payment Terms: | T/T/PayPal/Credit Card |
| Supply Ability: | 100000pcs/month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | 1pcs end mill in a plastic tube, ten pieces a bundle, then put in carton. |
| Product: | HRC50 4 Flutes 12R1 Corner Radius End Mill |
| Flute Diameter: | 12R1 |
| Flute Length: | 30mm |
| Overall Length: | 75mm |
| Shank Dia: | 12mm |
| Material: | ZY10EF |
| Coating: | AlTiN |
| Suitable for: | General steel |

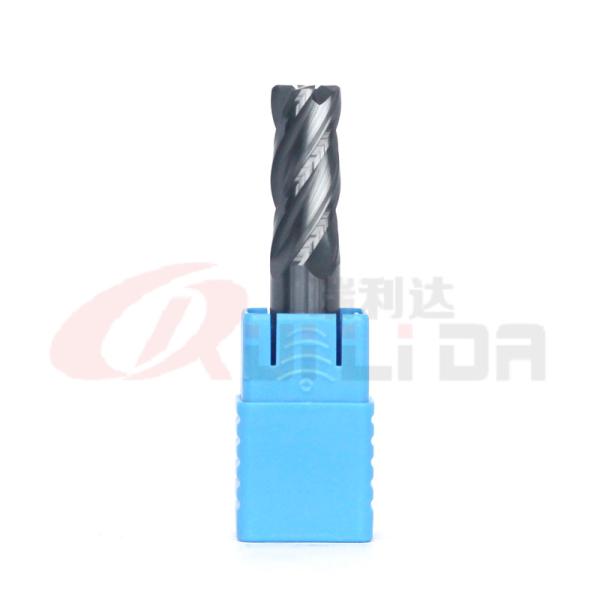

HRC50 4 Flutes 12R1 Tungsten Solid Carbide Corner Radius
Coated End Mill for Steel with AlTiN Coating
Big Core design
1. Increase rigidity
2. Good stability and concentricity
Sharp Cutting edge
1. Durable and wear-resistant
2. Reduce product burrs during processing
3. High precision and good surface finishing
AlTiN coating
1. Increase tool life for milling
Wide application
Suitable for cutting iron, cast iron, stainless steel, low alloy
steel, general steel under hardness HRC45
Tail Chamfer Design
1. Easy to install
2. Clamp safely
3. Stability for milling
| Product name | RLD HRC50 corner radius end mill 12R1 |
| Size | 12R1*30*75*12D*4F |
| Suitable for | Pre-hardened steel, stainless steel, iron, cast iron, etc. |
| Machine type | CNC milling machine |
| Flutes | 4 |
| Coating | AlTiN |
| Helix angle | 35 degree |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to your requirement. |
| RLD Corner Radius End Mill Standard Size HRC50 | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 2 (R0.2, 0.5) | 50 | 5 | 4 | 4 |
| 3 (R0.2, 0.5) | 50 | 8 | 4 | 4 |
| 4 (R0.2, 0.5) | 50 | 10 | 4 | 4 |
| 4 (R0.2, 0.5) | 75 | 12 | 4 | 4 |
| 4 (R0.2, 0.5) | 100 | 16 | 4 | 4 |
| 5 (R0.5,1) | 50 | 13 | 6 | 4 |
| 6 (R0.5,1) | 50 | 15 | 6 | 4 |
| 6 (R0.5,1) | 75 | 18 | 6 | 4 |
| 6 (R0.5,1) | 100 | 24 | 6 | 4 |
| 8 (R0.5,1) | 60 | 20 | 8 | 4 |
| 8 (R0.5,1) | 75 | 24 | 8 | 4 |
| 8(R0.5,1) | 100 | 32 | 8 | 4 |
| 10 (R0.5,1) | 75 | 25 | 10 | 4 |
| 10 (R0.5,1) | 100 | 30 | 10 | 4 |
| 12 (R0.5,1) | 75 | 30 | 12 | 4 |
| 12 (R0.5,1) | 100 | 36 | 12 | 4 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
ANCA is imported from Australia, is imported from Germany.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For large amount, we can send by air or by sea.
We also can send products to your shipping agent in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Do you attend international exhibitions?
Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam, etc.
7. Can you produce special carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
8. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make
customized stickers.
11. How many grinding machines do you have now?
Our company has 13 sets of CNC grinding machines.
12. Do you have any discounts?
Yes, more quantity will enjoy more discount.
12. Where is your factory.
Our factory is in Changzhou City, Jiangsu Province, China.
It’s around 1 hour from Shanghai by High-Speed Train.
|
