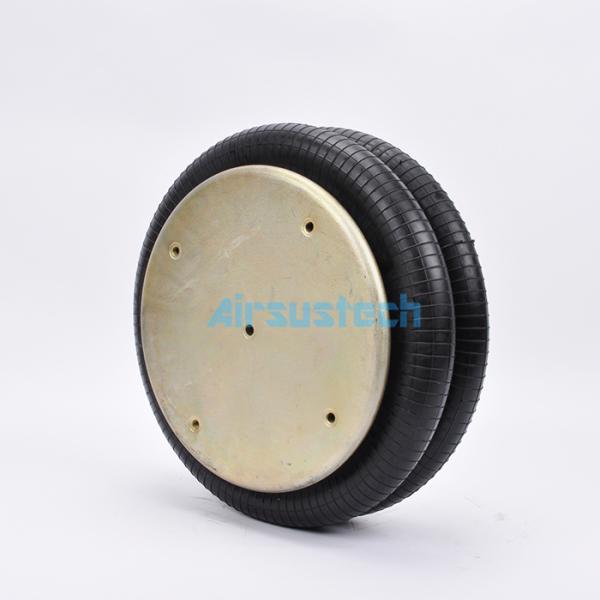

W01-358-6800 W013586800 Suspension Air Springs Goodyear 2B14-362 Double Convoluted Air Springs

W01-358-6800 W013586800 Suspension Air Springs Goodyear 2B14-362 Double Convoluted Air Springs

Basic Information

Product model: 2B6800

Product name: Air spring, air bag, air springs, air bags, air shocks, air suspension, air suspension springs

Sample: Available

Condition: 100% New

HS Code: 8708809000

Cross Reference

Firestone Style 21-2

Firestone : W01-358-6800; W01 358 6800; W013586800; WO1-358-6800; WO1 358 6800; WO13586800

Gododyear: 2B14-362; 2B14 362; 2B14362

Contitech / Continental : FD 530-30 518, FD 530-30 CI 1/4 NPT OS, FD530-30CI1/4NPTOS

2B14-362, 354-6800, AB6800, AS-0034, AS0034, AS6800

Specifications and Technical Parameters

21D2 Style AirSpring, Type 2 Bead Plate, (4) 3/8-16 Blind Nuts On 6.25" Centers, 1/4" NPT Offset Port

Top plate blind nuts: 4pcs× 3/8-16UNC

Bottom plate blind nuts:4pcs× 3/8-16UNC

Screw center distance: 6.25''

Cover plate diameter: 11.31''

Rubber bellow diameter at 100PSIG: 16.0''

Air Fittiings； 1/4NPT, Offset

Girdle hoop/Belt loop: 1pcs

Bumper: NO/ Without

Other models

Rubber Bellow Only 268 (25) W01-358-0319 FD 70-13 S VP 60513

Crimped, 1/4 BSP, Blind nuts 268 (25) W01-M58-6160 FD 70-13 CI G 1/4 2682015000

Crimped, 1/4 NPT, Blind nuts 268 (25) W01-358-7025 FD 70-13 CI 1/4 NPT 65532

Crimped, 3/4 NPT Blind nuts 268 (25) W01-358-7047

Socket Head Bead Rings 268 (25) W01-358-0030

Threaded Bead Rings 268 (25) W01-358-0030 FD 70-13 RI T23 B 202665

Rubber Bellow Only 267-1.5 (255-1.5) W01-358-0048

Crimped, 1/4 BSP, Blind nuts 267-1.5 (255-1.5) W01-M58-6105

Crimped, 1/4 NPT, Blind nuts 267-1.5 (255-1.5) W01-358-6955

Crimped, 3/4 NPT, Blind nuts 267-1.5 (255-1.5) W01-358-6956

Socket Head Bead Rings 267-1.5 (255-1.5) W01-358-6833

Crimped, 1/4 BSP, Blind nuts 224C W21-760-0335

Rubber Bellow Only 26 W01-358-0142 FD 120-17 S VP 60221
