| Categories | Cold Shrink Tube |
|---|---|
| Brand Name: | ZKCS |
| Model Number: | Customized |
| Certification: | ROHS |
| Place of Origin: | CHINA |
| MOQ: | 1000pcs |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100000pcs/month |
| Delivery Time: | 20-30days after receiving 40% deposit |
| Packaging Details: | 50pcs or 100pcs/carton |
| Material: | Silicone |
| Color: | Black or grey |
| Length: | Customized |
| Name: | Cold Shrink Tube |
| Application: | Insulation Protection |
| Product name: | Grey Cold Shrink Sleeve For Antenna |
| Packing: | Carton |
| Free samples: | yes |
| Company Info. |
| HENGYANG ZK INDUSTRIAL CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Product name:
Good Product UV Ageing Easy To Apply Grey Cold Shrink Sleeve For Antenna
Description:
inCold shrink tubing is tubing that shrinks in normal temperatures, so there is no need to heat the tubing to shrink it. It’s supplied on a removable core in a pre-stretched shape. The inner core is removed during installation, allowing the tubing to narrow down around the cables, allowing a tight and compact installation. by an inn
s
Applications
Primary electrical insulation for all solid dielectric (rubber and
plastic) insulated wire and cable splices rated to 1000volts

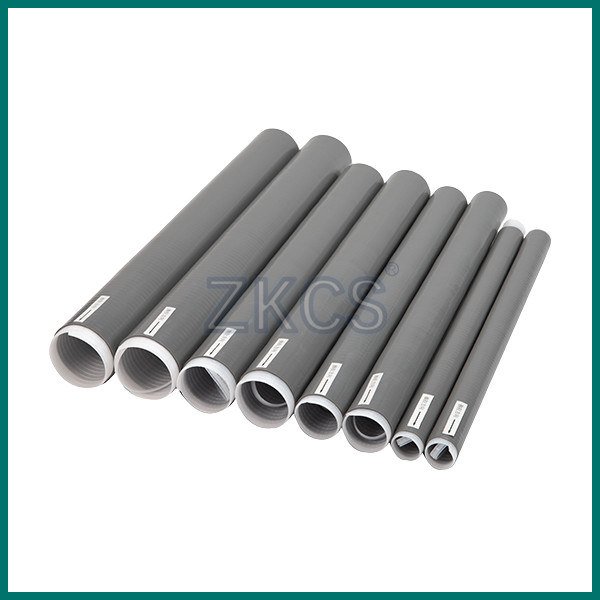

Picture for your reference.





Introduction:
EPDM Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
|
|
