Aluminum decorative panel

Quick Details

Type: Curtain Walls

Place of Origin: Hunan, China

Brand Name: HUABOND

Model Number: H-S123

Series: curtain wall

Color: any color

Shape: square

Brand: HUABOND®

Thickness: 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm and 4.0mm

Certificate: ISO9001, CE

Fired proof: BS476

Usage: Building wall

Material: Aluminum Alloy

Supply Ability: 25000 Square Meter/Per Month

Packaging Details: Standard cartons packing

Port: Guangzhou

Lead Time: About 25-28 days

Aluminum curtain walls:

Normal thickness: 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm and 4.0mm
The biggest size for single tiles about 1600x6000mm.

Merit of curtain wall:

1light but high rigidity and consistency, strong corrupt proof, weather proof and chemical
2 good plasticity
3 surface smoothness and easy cleaning
4 easy fix and install
5 surface color guarantee 20 years

6 recycle material, it in favor of protect environment
7flexible size and shape

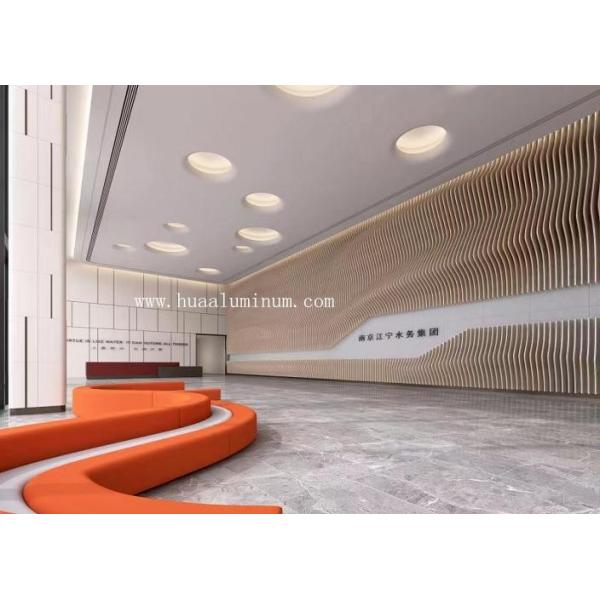

This curtain wall is recommend applying in these places below:
• build exterior, pillar and terrace
• airport / bus station
• auditorium, music hall
• sport center
• reception hall

Specifications:
1) Material: aluminum alloy sheet, AA3003 with H24
2) Thickness: 1.5mm, 2mm, 2.5mm, 3mm,3.5mm,4mm.6mm. other
3) The best size: 1600*4500mm.
4) Surface coating: Akzo Nobel/PVDF/ Powder coating/ other coating technical process
5) Style: plane, curved .perforated or as per your request
6) Quality guarantee: 20 years
7)Color: RAL color (can be customized to clients)

FAQ

1. How can I get some samples?

We are honored to offer you samples. New clients are expected to pay for the courier cost. The samples are free for you, this charge will be deducted from the payment for formal order.

2.Do you have any certificates?

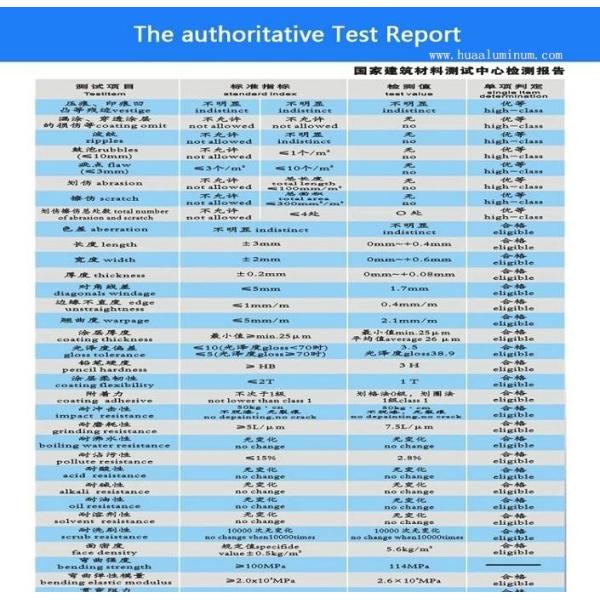

Our products passed inspection of SGS, ISO9001, CTC.
Quality is our culture! Every worker keeps the QC from beginning to end, Quality control department especially responsible for quality checking in each process.

3.What information should I let you know?
1) The size of products (Alloy, width, thickness, color, application);
2) The specification of the products you want;
3) It will be better if you can show us the pictures or design sketch. Samples will be best for clarifying. If not, we will recommend relevant products with details for reference.

4. Can you do the design for us?
We usually produce goods based on customers' samples or based on customers' picture, logo, sizes etc.

Hunan Huabond Technologies Co., Ltd. was established in 1994. It is a high-tech enterprise specializing in R&D, manufacturing and sales of metal materials. It is located in the Economic and Technological Development Zone of Changsha City, Hunan Province. Huabond is committed to innovation and strives to achieve full coverage with aluminum, copper, stainless steel and other metal materials to meet customers' one-stop procurement needs. The company's own brand HUABOND®, the company's main products are color coated metal coils, fluorocarbon sprayed aluminum solid panel, industrial metal composite panels, stainless steel tubes, ultra-wide and ultra-thick aluminum composite panels and honeycomb panels. Products are widely used in curtain wall interior and exterior decorative panels, roof maintenance system materials, elevator car panels, car panels, advertising panels, home appliances, solar energy and other fields.

HUABOND® is one of the drafters for National Standard of Aluminum Composite Panel & Solid Aluminum Sheet, an establishment member of National Aluminum Composite Panel Association, the executive vice chairman of the Standing Committee ever since, and the first CTC certificated company qualified through the National Building Materials Center.

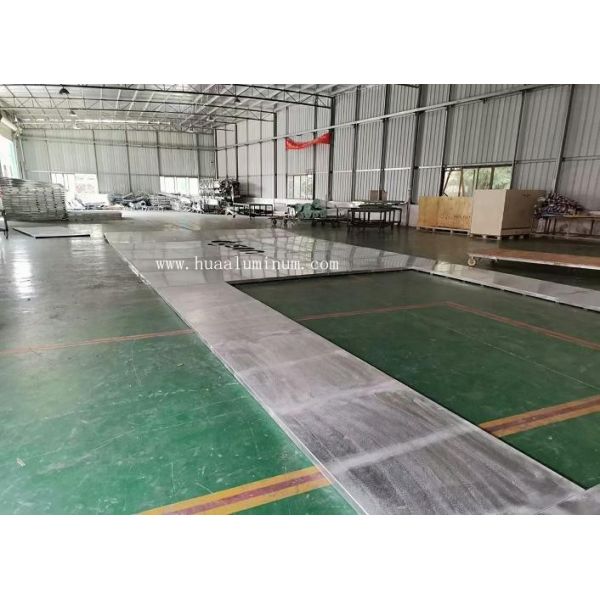

With up-to-date equipment of 4 Coating Lines, 2 Film Lamination Lines, 4 Slitting Lines, 5 Cutting Lines and Advanced Solid Aluminum Sheet Production Line, and annual capacity of 300,000 tons coated aluminum coils/sheets, 120,000 tons coated steel coils/sheets, 60,000 tons of film laminated metal coils/sheets, 1,000,000 m² solid aluminum sheets, 600,000 m² aluminum honeycomb sheets, and 4,000,000 m² Aluminum composite panels, HUABOND® always takes a leading position on Scale, Variety, Technology & Comprehensive Strength during the industry in China and even in Asia.

Hunan Huabond Technologies Co., Ltd. is committed to creating high-quality modern architectural art space for domestic and foreign customers with the corporate goal of "excellent quality, perfect service, and striving to be the industry leader", upholding professionalism, pursuing excellent quality. The company adheres to the business philosophy of "credibility-based, quality first, hard work and prosperity", combined with the implementation of the national "Made in China 2025" plan and the "Belt and Road" strategy, adheres to a high starting point, high quality, and walks with all partners all the way , Actively improve, seek change in stability, and achieve global consultation, co-connection, co-creation, and win-win.
