ASTM A358 Stainless Steel Plate S31254 254SMO EN 1.4547 612196000MM

ASTM A358 S31254 254SMO EN 1.4547 6*1219*6000MM Stainless Steel Plate

Alloys 254 SMO is an austenitic stainless steel with a high molybdenum content. Coupled with Nickel and Copper this gives the alloy a good resistance to pitting and crevice corrosion, Alloy 254 Plate is a titanium stabilized austenitic stainless steel with good general corrosion resistance.

Alloy 254SMO Stainless Steel Plate Specification

254 SMO Plate Specification	ASTM A240 / ASME SA240 / NACE MR-0175
Tolerances of width and thickness of 254 SMO Plate	EN 10258 (formerly DIN 59381) EN 10151 254 SMO En 1.4547 strips for springs EN 10088 6mo 254 SMO strip (general)
Standard 254 SMO Plate sizes	Cold rolled 254 SMO Plate 0.5-6.4 mm Hot rolled 254 SMO Plate 3.0–10.0 mm
Grade 1.4547 254 SMO AISI Plate & Sheet Thickness	0.1 to 100 mm Thk
Width	10-2500mm
254 SMO Super Duplex Plate & Sheet Length	2m, 2.44m, 3m, or as required

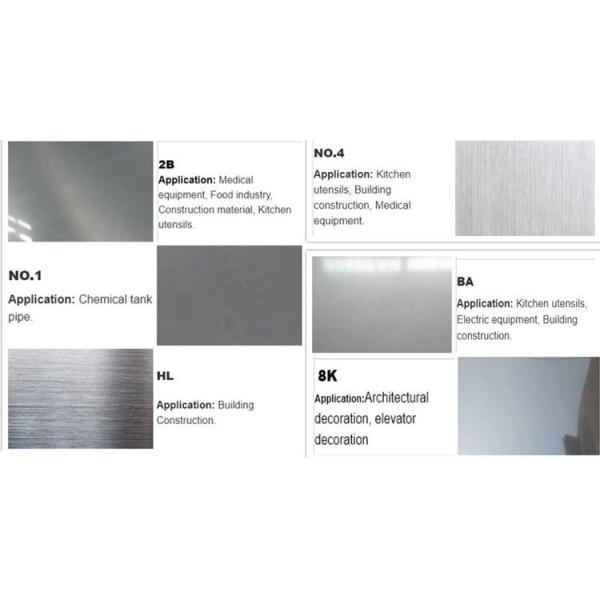

254 SMO Plate Finish	2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR),SATIN (Met with Plastic Coated), No.1 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
ASTM A240 S31254 Aisi 254 SMO Plate & Sheet Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard

Alloy 254SMO Stainless Steel Plate

Alloy 254SMO Stainless Steel Plate Standard Size

(mm)	Length x width (mm)	Length x width (mm)	Length x width (mm)	Length x width (mm)	Length x width (mm)
5	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
6	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
8	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
10	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
12	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
15	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
16	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
20	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
25	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
30	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
35	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
40	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
45	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
50	4000 x 2000	6000 x 2000	6000 x 2500	6000 x 3000	8000 x 2000
60	4000 x 2000
70	4000 x 2000
80	4000 x 2000
90	4000 x 2000
100	4000 x 2000

Alloy 254SMO Stainless Steel Plate Thickness

254 SMO Plate Thickness (mm)	254 SMO Plate Dimensions
1.5	3m x 1.5m
2.0	3m x 1.5m
3.0	3m x 1.5m
5.0	3m x 1.5m / 4m x 2m
6.0	3m x 1.5m / 4m x 2m / 6m x 2m
8.0	3m x 1.5m / 4m x 2m / 6m x 2m
10.0	3m x 1.5m / 4m x 2m / 6m x 2m
12.0	3m x 1.5m / 4m x 2m / 6m x 2m
15.0	4m x 2m / 6m x 2m
20.0	4m x 2m / 6m x 2m

Alloy 254SMO Stainless Steel Plate

Alloy 254SMO Stainless Steel Plate Chemical Composition

Grade	Ni	Cr	Mo	Cu	N	C	Mn	Si	P	S
SMO 254	17.5-18.5	19.5-20.5	6-6.5	0.5-1.0	0.18-0.22	0.02	1.0	0.08	0.03	0.01

Alloy 254SMO Stainless Steel Plate Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1320-1390 ℃	650	300	35 %
