ZX135US-3 Travel Motor Final Drive Assy For ZAX130UR-3 Excavator Travel Devicer

Categories Excavator Final Drive
Brand Name: TGFQ
Model Number: ZX130US-3 ZAX130UR-3 ZAX130-5A
Place of Origin: Guangdong, China
MOQ: 1
Price: 1000.00-5000.00USD
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100 Pcs / Month
Delivery Time: 1-3days
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Model: ZX135US-3 ZAX130UR-3 ZAX130-5A
Product Name: Excavator Final Device Assy
Part Number: 9289616 / 9289617
Outer Packing: wooden case
Brand: TGFQ
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ZX135US-3 Travel Motor Final Drive Assy For ZAX130UR-3 Excavator Travel Devicer

ZX135US-3 Travel Motor Final Drive Assy for ZAX130UR-3 Excavator Travel Devicer Final Drive


PRODUCT DESCRIPTION
Model: ZX135US-3 ZAX130UR-3 ZAX130-5A
egory: Excavator Final Device Assy
Brand: TGFQ
Place of Origin: China
Frame/Sprocket: 14/16
Payment Term: L/C, T/T, D/P, D/A
Part Number: 9289616 / 9289617
Means of Transport: By Sea, By Air or By Express
Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping.

What is final drive in mechanical engineering?
“The final drive is the final point of contact between the engine and the transmission. It is a mechanical device, which converts torque from the engine to mechanical power.” “Power take-off (PTO) is a type of electrical system that transfers electrical energy from a source to an output.

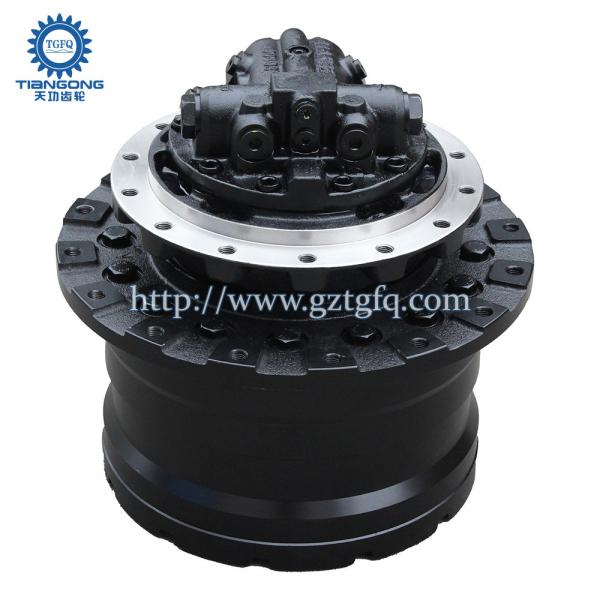

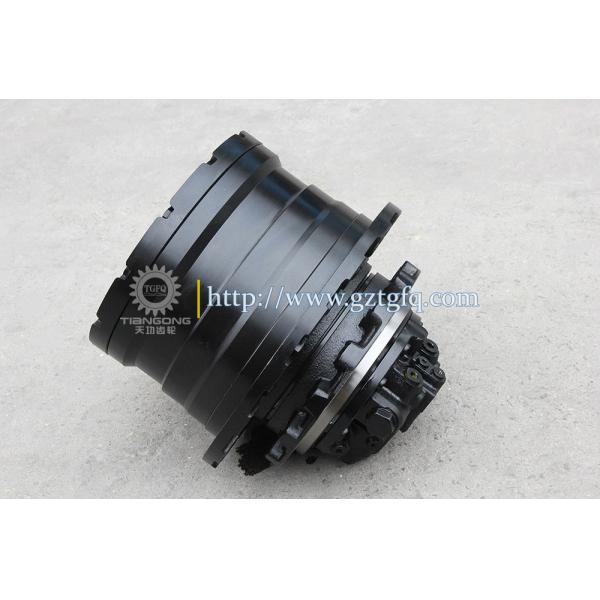

Picture of Final Drive Assembly:
Travel Hydraulic Motor Assy Drawing:

Parts on group TRAVEL DEVICE:


Pos.Part NoQtyParts nameComments
 9289616[2]TRAVEL DEVICE ASSYI 9289617 (for assembly of machine)
 9289617[2]TRAVEL DEVICE ASSY(for transportation)
09289613[1]MOTOR;OILI 9289614 (for assembly of machine)
09289614[1]MOTOR;OIL(for transportation)
24110369[1]SEAL;GROUP
34321887[2]BRG.;ROL.
41028028[1]DRUM
51028027[1]SPROCKET
6J931640[16]BOLT
71028042[1]GEAR;RING
8J931660[16]BOLT
103085728[1]NUT
114436242[1]PIN;KNOCK
131028041[1]CARRIER
143088341[3]GEAR;PLANETARY
154354289[6]BRG.;NEEDLE
164192982[12]PLATE;THRUST
174245966[3]PIN
184144020[3]PIN;SPRING
193085569[1]GEAR;SUN
212044805[1]CARRIER
224418771[1]SPACER
233087676[3]GEAR;PLANETARY
244354278[3]BRG.;NEEDLE
254178203[3]PIN
264192020[3]PIN;SPRING
272043769[1]SHAFT;PROP.
292044809[1]COVER
304631350[1]PIN;STOPPER
314609016[12]BOLT;SEMSI 4699148
314699148[12]BOLT;SEMS
324245797[3]PLUG
34+++++++[1]NAME-PLATE
35M492564[2]SCREW;DRIVE




OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
