| Categories | Rubber Discharge Hose |
|---|---|
| Brand Name: | JiuBei |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1unit |
| Price: | usd50-500/unit |
| Supply Ability: | 300units/month |
| Delivery Time: | 7working days |
| Packaging Details: | Standard sea worthy packaging |
| Name: | Rubber discharge hose |
| Material: | NBR with coil cloth reinforced |
| Length: | 1m~10m |
| Connection: | Steel flange |
| Working pressure: | 1~2.5Mpa |
| Bursting pressure: | 3~7.5Mpa |
| Company Info. |
| Shandong Jiubei Trading Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

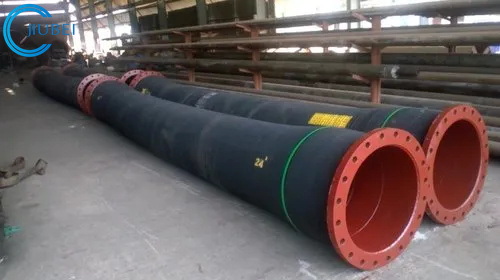

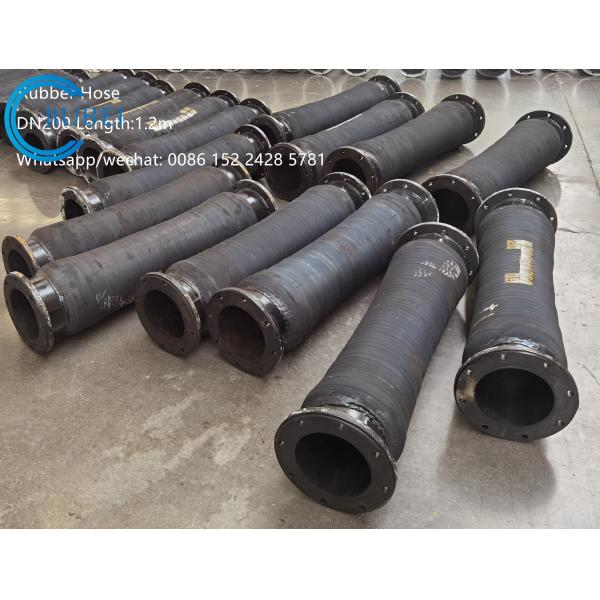

Discharge and Suction Dredging Hose/Discharge Rubber Hose
Suction Dredger Hose Purpose: used for suction and discharging sea water, manure, gravel, sand and other dredging material. It can be connected with other pipeline and reduce sway for shaft.
Inner tube: wear resistant, aging resistant synthetic rubber.
Reinforcement: Cord thread and steel spiral wire for high tensile strength and kinking resistance.
Cover: Weather and aging resistant, wear resistant synthetic rubber
Temperature range: -20 to +85℃
Construction:
| Inner layer | Black,wear and corrosion resistant rubber |
| Reinforcement | High tensile spiral fabric reinforcements, steel wire spiral layer |
| Cover | Black,wear and corrosion resistant rubber |
Dimension:
| I.D | W.P. | B.P. | Length | Reference Thickness | |
| mm | Tolerance(mm) | bar | bar | m | mm |
| 300 | ±2 | 4~12 | 36 | 1~3 | 34~37 |
| 450 | ±2 | 4~12 | 36 | 1~3 | 34~37 |
| 560 | ±3 | 4~12 | 36 | 2~3 | 40~45 |
| 600 | ±3 | 4~12 | 36 | 2~3 | 40~45 |
| 700 | ±3 | 8~15 | 45 | 2~3 | 40~45 |
| 800 | ±4 | 12~25 | 55 | 2~3 | 50~52 |
| 900 | ±4 | 15~25 | 75 | 2~3 | 55~58 |
| 1000 | ±5 | 20~25 | 75 | 3~5 | 75 |
| 1100 | ±5 | 25~30 | 80 | 3~5 | 90 |
| Customer made acceptable. | |||||


|
