Working principle

The working principle of this series of products: the main motor drive pulley and belt, through the reducer drive pinion, pinion and big gear which fixed at the end teeth meshing, work to the big gear through a special reasonable design, installation on the spindle which fixed on adjust plate ,to support the work of the entire disc (the machine used with the spray machine) material feeding into the disc, with disk rotating and spraying device, materials will evenly stick together to form ball shape granules. In the upper part of the design is automatic cleaning device to prevent the material sticky on disc, thus greatly improving machine service life. With the continuous rotation of the motor, the material constantly Enter, in order to achieve mass production, reach the needs of continuous work.

The Structure of Disk Granulator Machine can be divided into five parts:

1. Frame part: As the whole body part of the transmission and the rotating part of the work supporting by rack, with strength force, so the machine frame parts are welding with excellent carbon channel, and adopted a rigorous quality certification and specific Of the technical requirements, has reached the purpose of the machine used.
2. Adjustment part: the most important part of whole machine is granulation disk, and the gravity center of granulation disk is installed on adjust part, our company specializes in the use of excellent welding carbon steel plate and channel steel, and adopted a strict quality standards Certification, have reached the requirements of the machine used.
3. Transmission parts: the entire machine drive part is important, the overall work depend on it. The motor installed on transmission rack and reducer are with ISO / 9001 quality products, with reliable quality. The motor drive Pulley, V-belt, Reducer and pinion, the small gear transmission large gear and drive the granulation plate work. The gears are used high-frequency fire, with twice service life than old type. The granulation plate is fixed on the driving shaft , the connecting part of the stigma adopts the taper fitting, the design is more reasonable;

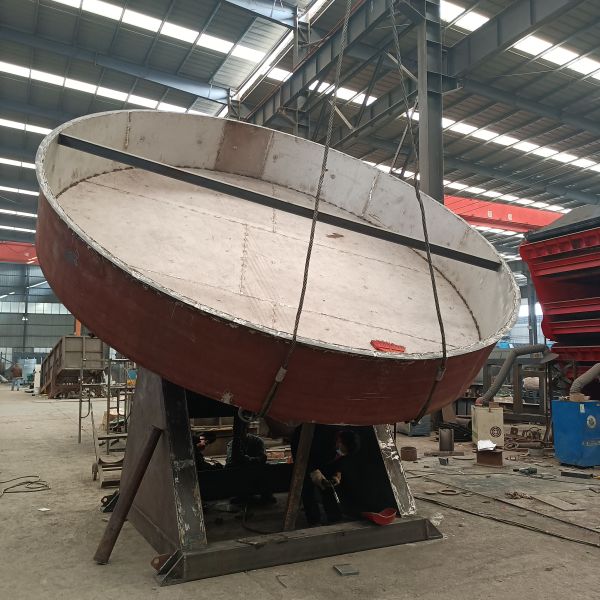

4. Granulation part: This machine granulator disk angle with the overall arc design, granulation rate can reach more than 90%, granulation disk bottom also uses a number of radiation steel to strengthen, durable, never deformation;
5. Automatic cleaning part: This part is installed on the top of the granulator, into frame shape, with automatic clear plate, in order to clear the material attached to the machine when production, highly improving the service life of the machine, Saving the labor force.
The series of disc granulator has a variety of models, according to the user’s different capacity, also accept custom.

Technical Details:

Hengyang Industry is an Chinese Company based in Zhengzhou city that manufactures, on proprietary technology, plants and equipment for waste recycling and recovery with energy production, material recovery or production of finished goods.

Innovation, R&D, passionate and skilled team along with the customer satisfaction have always been the success of Hengyang and they still are the peculiarities of our Company. Besides the historical Hengyang equipment, like single and double shafts shredders, Crushing machine, briquetting machines, separators, squeezers and centrifuges, the Company offers a wide range of turn-key plants, among which:

• briquetting and pelletizing plants
• shredding plants
• Waste Sorting Plants
• Bio-fuel Plants
• Waste to Power Recycling Plants
• Mining Plants
• OEM Equipments
……..
Hengyang is able to develop customized solutions too.
