3000kg Steel Molten Aluminum Transfer Ladles For 200KM Distance

Categories Molten Aluminum Transfer Ladles
Brand Name: Hyded
Model Number: HBQ-223
Certification: CE ISO9001
Place of Origin: Jinan, China
MOQ: 1 set
Price: 1000USD
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100sets per year
Delivery Time: 45 workdays
Packaging Details: Standard exporting package
Material: Natural Gas Burner, Steel
Color: According to your requirment
Ladle Cover: Customized
Usage: Ladle preheating
Heating Temperature: 900℃
Moving method: Air cylinder
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

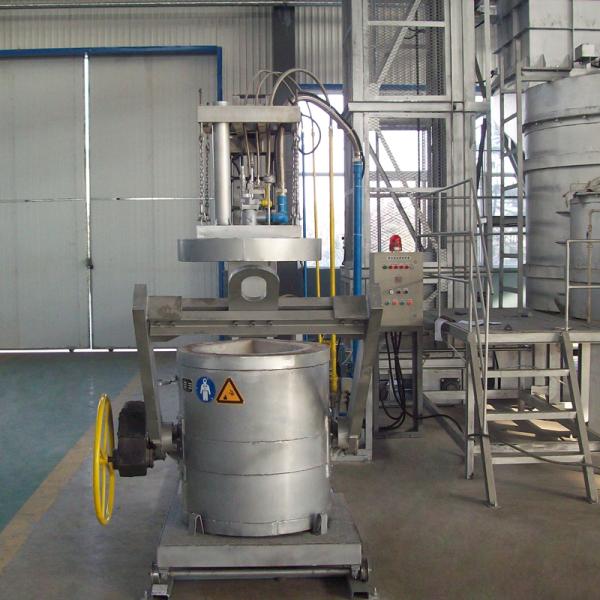

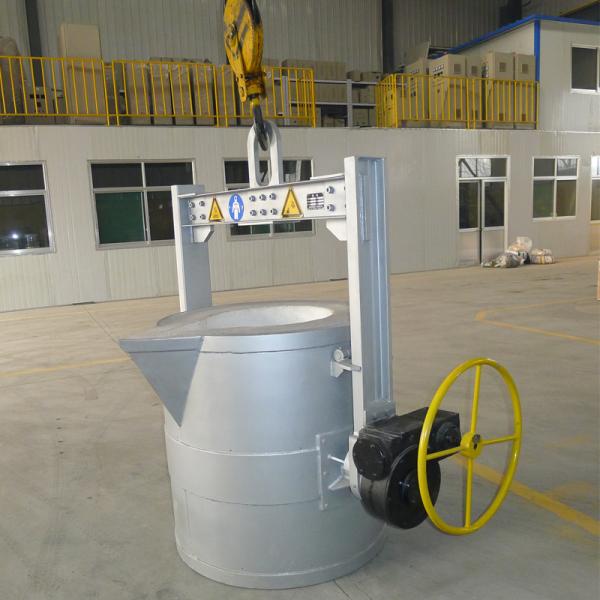

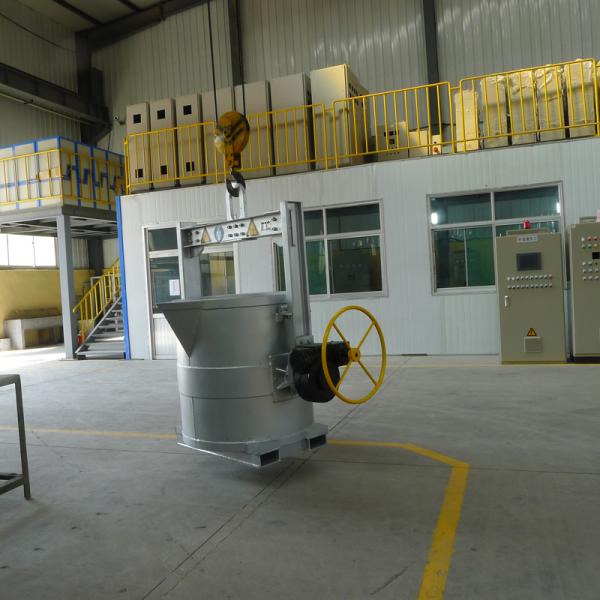

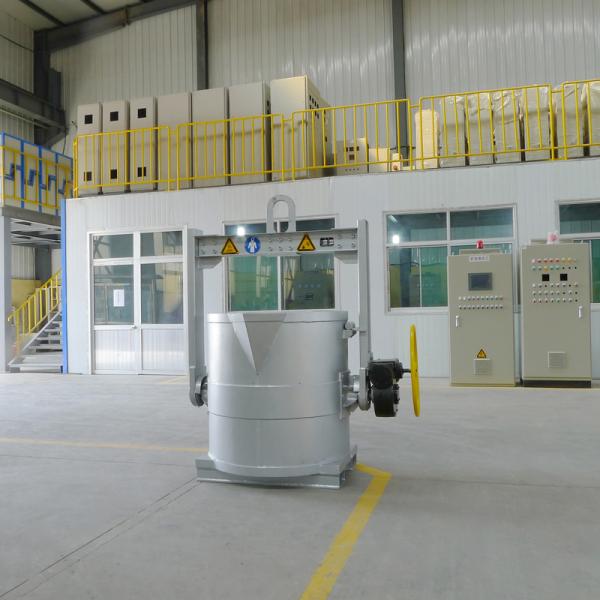

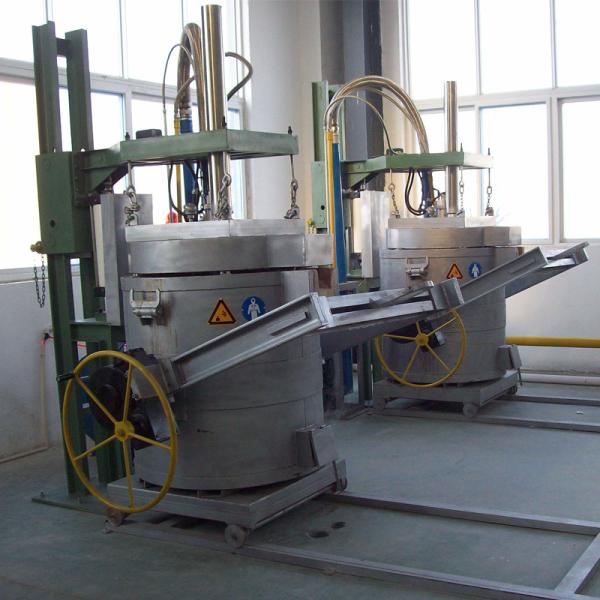

3000kg Steel Molten Aluminum Transfer Ladles For 200KM Distance

3000kg Molten Aluminum Transfer Ladles Molten Aluminum Directly Transfer Ladles for 200KM Distance


Usage:
• The molten aluminum transfer equipment is used for transferring the molten aluminum, also can refining and degassing inside the ladle.
• Molten aluminum ladle capacity: 100kg - 10000kg (AL)


Equipment Features
• Molded by monolithic casting with a refractory casting material specially used for aluminum alloy ladle production, the inner layer of the ladle lining is poorly permeable to the molten aluminum, so it offers high resistance to corrosion by the molten aluminum.
• Made from an insulating castable or nano-fibrous material, the temperature holding layer has excellent performance and low natural drop in temperature.

• Sturdy cladding. The cladding is professionally produced according to the technical conditions of ladles. Equipped with a welded bottom hoop, bilge hoop, upper mouth hoop and collar, it has a longer service life and can ensure safety.


ItemsParametersRemarks
ModleHBQ-223
Heating TypeSmall; Medium; Big
Max. Burning Calorific Value20x104 Kcal/h
Max Heating Temperature1100℃
Working Heating Temperature0-850℃
Heating Rate0-50 ℃/min Adjustable
Time to Reach Temperature0-60 min
Heating Temperature Uniformity≤50 ℃
Lifting PowerAir Cylinder Driver
Lifting Stroke0-400mm
GasGas TypeNatural Gas
Gas Pressure5000 ±5% Pa
Gas Flow≤24 m³/h
PowerVoltage380 V, 3P
Frequency50HZ
Rated Power3 KW
Compressed AirPressure0.5-0.7 MPa
Flow≤50 M3/H
