| Categories | Monocrystalline PV Module |
|---|---|
| Brand Name: | MITSCN |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Delivery Time: | 5-8 working days |
| Packaging Details: | Solar Panel Carton box by pallet or ply wooden box |
| power: | 415W-435W |
| model: | RS21-415_435I |
| type: | 166-132 IBC black mono-facial module |
| Dimensions of Module L*W*H: | 1895x1039x30mm |
| Frame: | Anodized Aluminum Alloy |
| Maximum System Voltage: | 1500VDC |
| Product name: | mono solar panel |
| cell type: | mono solar cell |
| J-Box: | IP68 |
| Maximum Series Fuse Rating: | 20A |
| Company Info. |
| Beijing MITSCN Co., Ltd. |
| View Contact Details |
| Product List |

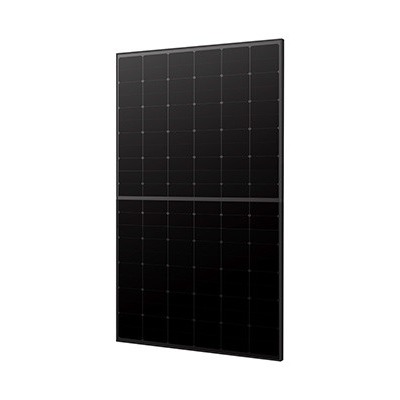

RS21-415_435I (166-132 IBC black mono-facial module)
Complete System and IEC Product Certification IEC 61215(2016),IEC 61730(2016) ISO9001: 2015:Quality Management System ISO14001: 2015:Environment Management System ISO45001:2018:Occupational Health and Safety Management System
· Suitable for ground power plants and distributed projects
· Advanced module technology delivers superior module efficiency
· Excellent power generation performance
· High module quality ensures long-term reliability
· Ultra-hydrophilic self-cleaning coating techniques
| Electrical Characteristics STC | RS21-415I-E2 | RS21-420I-E2 | RS21-425I-E2 | RS21-430I-E2 | RS21-435I-E2 | |||||||||||||||||
| Maximum Power (Pmax) | 415W | 420W | 425W | 430W | 435W | |||||||||||||||||
| Power Tolerance | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W | |||||||||||||||||
| Module Efficiency | 21.08% | 21.33% | 21.59% | 21.84% | 22.09% | |||||||||||||||||
| Maximum Power Current (Imp) | 10.76A | 10.83A | 10.90A | 10.97A | 11.04A | |||||||||||||||||
| Maximum Power Voltage (Vmp) | 38.60V | 38.80V | 39.00V | 39.20V | 39.40V | |||||||||||||||||
| Short Circuit Current (Isc) | 11.56A | 11.66A | 11.76A | 11.86A | 11.96A | |||||||||||||||||
| Open Circuit Voltage (Voc) | 45.80V | 45.90V | 46.00V | 46.10V | 46.20V | |||||||||||||||||
Values at Standard Test Conditions STC(AM1.5, Irradiance 1000W/m², Cell Temperature 25°C)
| Electerical Characteristics NOCT | RS21-415I-E2 | RS21-420I-E2 | RS21-425I-E2 | RS21-430I-E2 | RS21-435I-E2 |
| Maximum Power (Pmax) | 312W | 316W | 320W | 324W | 328W |
| Maximum Power Current (Imp) | 8.67A | 8.73A | 8.80A | 8.86A | 8.92A |
| Maximum Power Voltage (Vmp) | 36.00V | 36.20V | 36.40V | 36.60V | 36.80V |
| Short Circuit Current (Isc) | 9.33A | 9.42A | 9.49A | 9.57A | 9.65A |
| Open Circuit Voltage (Voc) | 43.90V | 44.00V | 44.10V | 44.20V | 44.30V |
NOCT, lrradiance of 800W/m ², AM1.5, Ambient Temperature 20 °C, wind Speed 1m/s.
| Mechanical Characteristics | Characteristics | |||
| Cell Type | Monop-type,166×166(±1)mm,132(6×22)Half-Cut cells | Temperature Coefficient of Voc | -0.246%/°C | |
| Glass | 3.2mm ,High Transmission,Low lron,Tempered Glass | Temperature Coefficient of Isc | +0.046%/°C | |
| Frame | Anodized Aluminum Alloy | Temperature Coefficient of Pmax | -0.29%/°C | |
| Juction Box | IP68 Rated, With Bypass Diodes | Nominal Operating Cell Temperature (NOCT) | 45°C±2°C | |
| Dimension | 1895x1039x30mm | Remark:Electrical data in this catalog do not refer to a single module and they are not part of the offer.l hey only serve for comparison among ditterent module types. | ||
| Output Cable | 4 mm² (EU),300 mm,length can be customized | |||
| Weight | 21kg | |||
| lnstallation Hole Location | See Drawing Above | |||
| Packing Information | Maximum Ratings | |||
| Container | 40' HQ | Operating Temperature | -40°C~+85°C | |
| Pallets per Container | 24 | Maximum System Voltage | 1500VDC | |
| Pieces per Container | 864 | Maximum Series Fuse Rating | 20A | |
|
