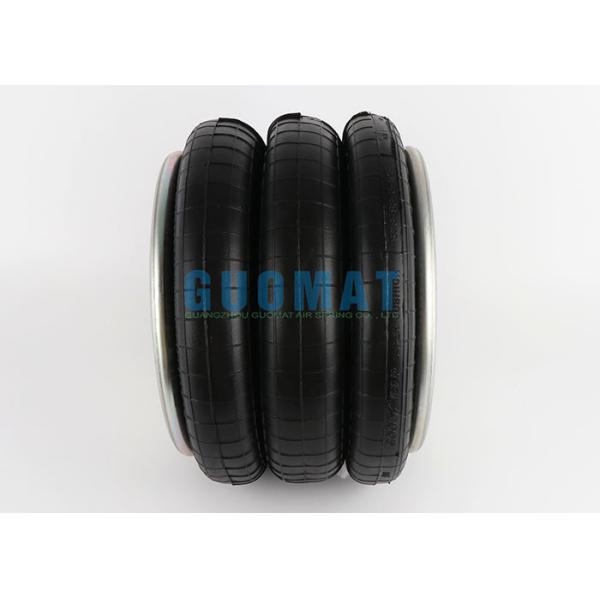

3B12-325 Goodyear Air Spring 578-93-3-103 Steel Triple Convoluted Air Bag For Packaging Machinery

3B12-325 Goodyear Air Spring 578-93-3-103 Steel Triple Convoluted Air Bag For Packaging Machinery

Product Description

Brand: Goodyear Brand

Spring Origin: Mexico

Goodyear Part Number: 3B12-325

Goodyear Part Number: 3B12 325

Goodyear Part Number: 3B 12-325

​Goodyear Part Number: 3B 12 325

​Goodyear Part Number: 3B12325

Goodyear Flexmember Number: 578933103

Goodyear Flexmember Number: 578 93 3 103

Goodyear Flexmember Number: 578-93-3-103

Firestone Part Number: 8048

Firestone Part Number: W013588048

Firestone Part Number: W01-358-8048

Firestone Part Number: W01 358 8048

Firestone Part Number: WO13588048

Firestone Part Number: WO1-358-8048

Firestone Part Number: WO1 358 8048

Contitech Part Number: FT 430-32 CI 1/4 NPT

Contitech Part Number: FT 430 32 CI 1/4 NPT

Contitech Part Number: FT430 32 CI 1/4 NPT

3B12-325 Goodyear Air Spring Technical Data

Top Bead Plate
Top Plate Hole/Stud Qty: 3
Top Cover Plate Diameter: 10.30
Top Cover Plate Threaded hole to Threaded hole Diameter: 6.20
Top Cover Plate Threaded hole to Air Fitting Diameter: 2.87

Bottom Plate/Piston
Bottom Plate Hole Stud Qyt: 2
Bottom Cover Plate Diameter: 10.30
Bottom Cover Plate Threaded hole to Threaded hole Diameter: 6.20

Min.Height: 4.5
Max.Height: 18.6
Bumper: No

Triple Convoluted Goodyear Air Spring

3B12-300 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-301 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-303 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-304 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-305 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-310 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-312 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-315 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-319 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-322 Goodyear Air Spring , Flexmember 578-93-3-103

3B12-323 Goodyear Air Spring , Flexmember 578-93-3-103

3B12-324 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-325 Goodyear Air Spring , Flexmember 578-93-3-103

3B12-326 Goodyear Air Spring , Flexmember 578-93-3-103

3B12-328 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-329 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-335 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-338 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-342 Goodyear Air Spring , Flexmember 578-93-3-100

3B12-347 Goodyear Air Spring , Flexmember 578-93-3-103

3B14-351 Goodyear Air Spring , Flexmember 578-93-3-350

3B14-352 Goodyear Air Spring , Flexmember 578-93-3-350

3B14-354 Goodyear Air Spring , Flexmember 578-93-3-350

3B14-356 Goodyear Air Spring , Flexmember 578-93-3-350

3B14-359 Goodyear Air Spring , Flexmember 578-93-3-350

3B14-360 Goodyear Air Spring , Flexmember 578-93-3-350

3B14-361 Goodyear Air Spring , Flexmember 578-93-3-350

3B14-364 Goodyear Air Spring , Flexmember 578-93-3-350

3B14-365 Goodyear Air Spring , Flexmember 578-93-3-350

3B14-367 Goodyear Air Spring , Flexmember 578-93-3-350

3B14-450 Goodyear Air Spring , Flexmember 556-33-8-335

3B14-451 Goodyear Air Spring , Flexmember 556-33-8-335

3B14-452 Goodyear Air Spring , Flexmember 556-33-8-335

3B14-455 Goodyear Air Spring , Flexmember 556-33-8-335

3B14-457 Goodyear Air Spring , Flexmember 556-33-8-335

3B14-459 Goodyear Air Spring , Flexmember 556-33-8-335

3B14-464 Goodyear Air Spring , Flexmember 556-33-8-335

Advantages of Air Spring Shock Absorber

The Real Pictures

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
