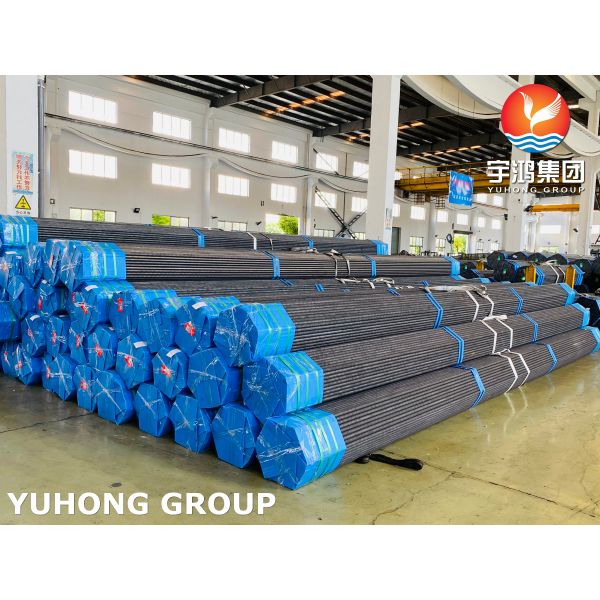

ASTM A192 Seamless Carbon Steel Tubes For High Pressure Service
YUHONG Group offers ASTM A192 seamless carbon steel tubes and sells
more than 70 countries up to now.
This specification covers minimum-wall thickness, seamless carbon
steel boiler and superheater tubes for high pressure
service.Hot-finished tubes need not be heat treated. Cold-finished
tubes shall be heat treated after final cold-finished at a
temperature of 1200° F (650°C) or higher.
Specifications
| Standard | ASTM A192 | ||
| Name of Material | Seamless Tubes | ||
| Manufacture | Hot finished or Cold drawn | ||
| Quantity | Feet,metres,or number of lengths | ||
| Size | O.D.: 1/2 to 7 in. (12.7 to 177.8mm), Minimum wall thickness:2.2 to 25.4mm | ||
| Length | Specific or random | ||
Test Required
Flattening Test / Flaring Test / Hardness Test / Hydrostatic Test
Chemical Composition % of ASTM A192
| Carbon | 0.06-0.18 |
| Manganese | 0.27-0.63 |
| Phosphorus,Max | 0.035 |
| Sulfur,Max | 0.035 |
| Silicon,Min | 0.25 |
Mechanical Property of ASTM A192
| Steel Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) |
| A192 | ≥180 | ≥325 | ≥35 |
Applications Industry
Petrochemicals
Pharmaceutical Equipment
Off-Shore Oil Drilling Companies
Chemical Equipment
Power Generation
Sea Water Equipment
Gas Processing
Heat Exchangers
Specialty Chemicals
Condensers & Boiler
|
