| Brand Name: | WEITONG MARINE |
| Model Number: | WTLJ 203 |
| Certification: | CE/ EC/CCS etc. |
| Place of Origin: | China |
| MOQ: | 5PCS |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Delivery Time: | 7days |
| Packaging Details: | OPP Bag+Carton |
| Material: | Natual Rubber |
| Length: | 8~24m |
| Dia.: | 0.8~2.5m |
| Work Pressure: | 0.07-0.33MPa |
| Standard: | CB/T3837 |
| Certificate: | ABS, CCS, BV etc. |

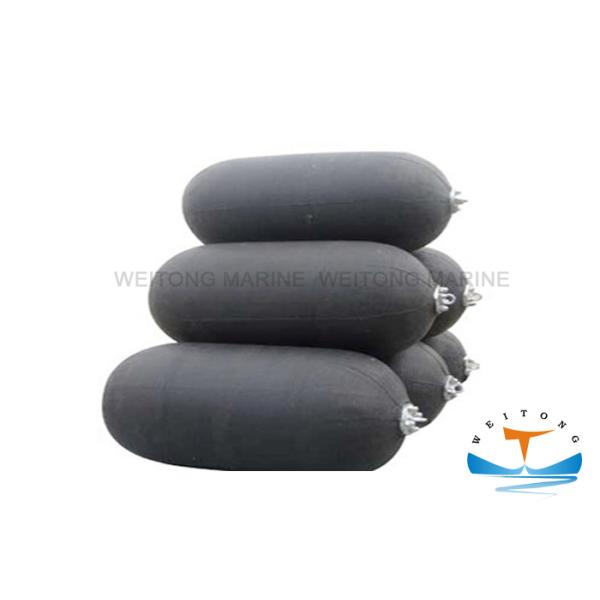

Marine Salvage Lifting Rubber Airbag
Marine Salvage Airbag is the toughest air lifting bag, can be used
as salvage pontoon for the supporting docks, and other floating
structures, and can be used to salvage the shipwreck, rescue the
floating bridge and dock construction. Marine Salvage Airbag is
made of heavy-duty synthetic-tire-cord layers with inner and outer
rubber layers in long cylindrical balloon shape, consists of three
parts: End ironwork,end taper body and cylinder body. is an
innovative technology used in ship launching or upgrading in
shipbuilding.
Features:
1.long lifespan
2.movable and reusable
3.saving investment costs
4.saving labor and time
5.leading manufacturer of marine supplies
6.good air tightness
7.strict inspection
8.fine work
Certificate: ABS,CCS,BV,DNV, etc.
Specification
| Effective Length(m) | D=1M | D=1.2M | D=1.5M | D=1.8M | D=2M |
| 5 | 3.93 | 5.65 | 8.84 | 12.72 | 15.71 |
| 6 | 4.71 | 6.79 | 10.6 | 15.27 | 18.85 |
| 7 | 5.5 | 7.92 | 12.37 | 17.81 | 21.99 |
| 8 | 6.28 | 9.05 | 14.14 | 20.36 | 25.13 |
| 9 | 7.07 | 10.18 | 15.9 | 22.9 | 28.27 |
| 10 | 7.85 | 11.31 | 17.67 | 25.45 | 31.42 |
| 11 | 8.64 | 12.44 | 19.44 | 27.99 | 34.56 |
| 12 | 9.42 | 13.57 | 21.21 | 30.54 | 37.7 |
| 13 | 10.21 | 14.7 | 22.97 | 33.08 | 40.84 |
| 14 | 11 | 15.83 | 24.74 | 35.63 | 43.98 |
| 15 | 11.78 | 16.96 | 26.51 | 38.17 | 47.12 |
| 16 | 12.57 | 18.1 | 28.27 | 40.72 | 50.27 |
| 17 | 13.35 | 19.23 | 30.04 | 43.26 | 53.41 |
| 18 | 14.14 | 20.36 | 31.81 | 45.8 | 56.55 |
