| Categories | Hydraulic Radial Piston Motor |
|---|---|
| Brand Name: | BLINCE |
| Model Number: | Hydraulic radial piston motor |
| Certification: | ISO9001:2008 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs/month |
| Delivery Time: | 15-20days |
| Packaging Details: | Carton or wood case |
| Feature: | large torque, low noise |
| Shaft: | splined key, parallel key |
| Warranty: | One year |
| Material: | Cast Iron |
| Structure: | Radial Piston |

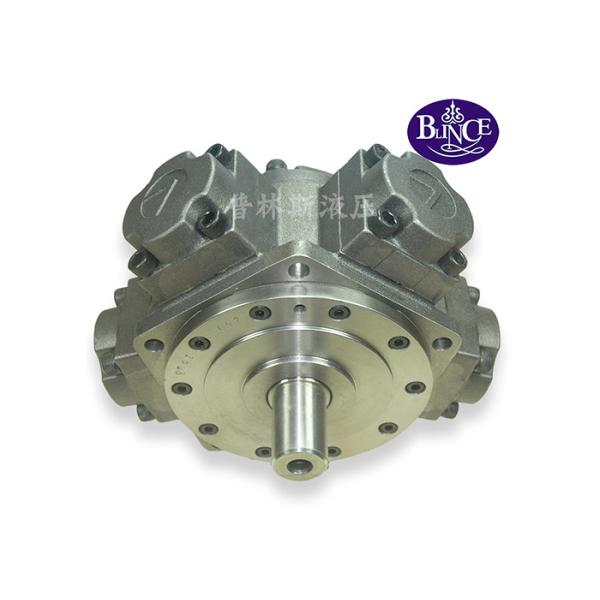

NHM Hydraulic Piston Motor , Low Speed High Torque Radial Piston Motor
Low speed big torque radial piston hydraulic motor for screw push machine
BLINCE brand in 13 years successfully settled in the industrial brand mall, the production of radial piston hydraulic motor
extrusion molding, the surface is bright black, more anti - wear, corrosion resistance, high temperature. The use of Taiwan NAK oil seal is not easy to leak oil.
Characteristic:
* Large torque of star-up, which can smooth run at very low speed.
* Can offer capacities of high pressure and high torque in the wide of applications.
*High efficiency and long life, lower noise.
| Model | Displacement | Pressure | Torque | Speed range | ||
| Rated | Max | Rated | N.m/Mpa | |||
| LD 11-700 | 707 | 25 | 32 | 2612 | 104 | 4-400 |
| LD 11-800 | 784 | 25 | 32 | 2899 | 116 | 4-400 |
| LD 11-900 | 894 | 25 | 32 | 3306 | 132 | 4-400 |
| LD 11-1000 | 981 | 20 | 25 | 2902 | 145 | 3-320 |
| LD 11-1100 | 1104 | 20 | 25 | 3265 | 163 | 3-320 |
| LD 11-1200 | 1234 | 16 | 20 | 2929 | 182 | 3-320 |
| LD 11-1300 | 1301 | 16 | 20 | 3079 | 192 | 3-250 |
|
