| Categories | Heavy Construction Machinery |
|---|---|
| Brand Name: | dongfeng brand |
| Model Number: | DFD4251 |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | USD60000-USD75000.00 |
| Supply Ability: | 500 Units per month |
| Delivery Time: | 30 working days after received the down payment |
| Packaging Details: | in nude |
| Engine: | Cummins L375 30 |
| Displacement: | 8900ml |
| tank volume: | 45m3 |
| tank dimension: | 11640×φ2210 |
| Drive mode | 6×4 | ||
| Engine | Model | Cummins L375 20 | |
| Max. power(Kw/rpm) | 275/2200 | ||
| Max. torque(N.m/rpm) | 1400/1300-1500 | ||
| Cylinder bore ×Stroke(mm) | 114×145 | ||
| Displacement(ml) | 8900 | ||
| Type of fuel | Diesel | ||
| Compression ratio | 16.6:1 | ||
| No. of valves | 4 | ||
| Cab | D310-H1 | height ceiling, double berth | |
| Capacity | 3 persons | ||
| Gearbox | Type | Fast 12JS180T | |
| Max. torque(N.m) | 1800 | ||
| Gear ratio | 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.10 1.64 1.28 1.00 | ||
| Clutch | Φ430mm | pull-type diaphragm spring clutch | |
| Frame H×W× T(mm) | 300×90×(8+5) | ||
| Frame width 940 (front ), Frame width 810 ( rear ) | |||
| No. of spring leaves | 3/10 | ||
| Tyre | Size | 12.00R20 | |
| Air conditioner | A/C | ||
| Overall size (mm) | 12810(L)* 2500(W)*3900 (H) | ||
| Wheel base (mm) | 7200+1310+1310 | ||
| Tread (mm) | 2040 | ||
| Kerb mass(Kg) | 7000 | ||
| Min. turning diameter(m) | 24 | ||
| Min. ground clearance | 360 | ||
| Main configuration parameters | |||
| Axles | BPW12T, Germany, 3 axles | ||
| Towing pin | JOST, 50mm or 90mm | ||
| suspension | BPW brand triple air suspension | ||
| Trailer tyre | 425/65R22.5 radial tire, 6 | ||
| Brake system | dual circuit air brake, Service brake, Parking brake, emergency brake | ||
| ABS | WABCO made, America | ||
| Tank body parameter | |||
| Tank actual volume(m3) | 45 | ||
| Tank actual dimension(mm) | 11640×φ2210 | ||
| Tank material | carbon steel | ||
| Discharge | aluminum alloy DN80 | ||
| Discharge rubber hose | 2 set, 4m length, ball valve accord with drift diameter | ||
| bottom valve | None | ||
| Tank mouth | Two, aluminum alloy, diameter: Φ500 | ||
Any requirement ,feel free to contact with us as following :
Sarah Shen
Sales manager
Personal mobile number: 0086 138 0382 3630 (whatsapp&viber)
--------------------------------------------------------------------------------------
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd
--------------------------------------------------------------------------------------
Add.: No.28, Dongfeng Road, Zhengzhou, Henan, China
Tel.: 0086 371 88883954
Fax: 0086 371 88883974
Skype: Overseas_dongfeng07
Website: www.cn-dfm.com
|
2 TON MINI WHEEL LOADER - ZL-20F/1 m3 bucket/4X4 Four-wheel full hydraulic drive/CE certificate/cummins engine
MINI WHEEL LOADER - ZL-12F/0.7cbm bucket/37kw engine/1200kg 1.2 ton loading capacity/3400kg operation weight
25m Dongfeng Heavy Duty Concrete Pump Truck for Aerial Transport Concrete for Sale

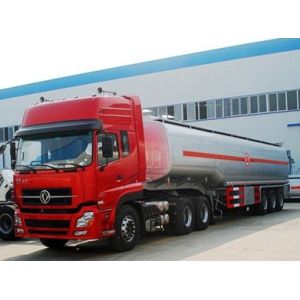

dongfeng tuel tanker semir trailer with tractor , 45m3 fuel tanker truck
