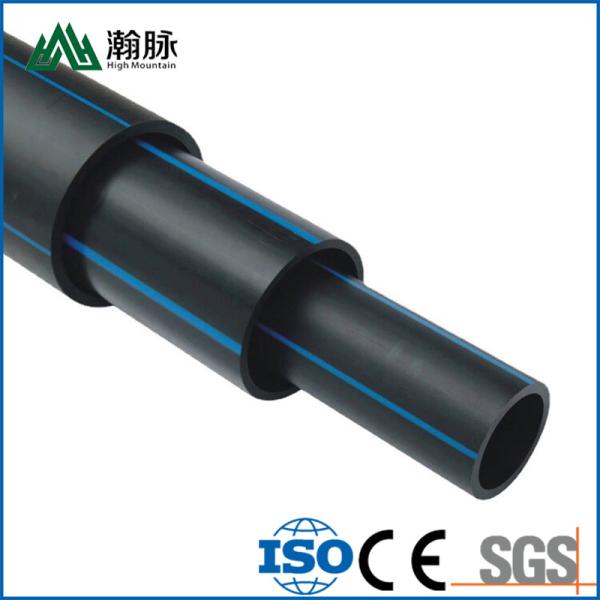

PE Material Water Plastic Agricultural Irrigation Hdpe Water Supply Pipe
----------------------------------------
Basic Info.
HDPE drainage pipe is a replacement product of traditional steel pipes and polyvinyl chloride drainage pipes. It is mainly responsible for drainage of rainwater, sewage, irrigation and drainage of farmland, etc. It is widely used in roads, railway subgrades, subway projects, waste landfills, tunnels, etc. , Green belts, sports grounds and slope protection caused by high water content and other drainage fields, as well as underground irrigation and drainage systems for agriculture and horticulture.
| Outer Diameter DN (mm) | SDR 9 PN20 | SDR 11 PN16 | SDR 13.6 PN12.5 | SDR 17 PN10 | SDR21 PN8 | SDR26 PN6 | Packing Loaded into 40GP/Piece 6m or 12m per Piece |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | 1085 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 754 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Impact resistance
1) The special structure of HDPE pipe makes it have high mechanical
strength and high ring stiffness, and can withstand strong impacts
more strongly than traditional pipes, such as areas with multiple
earthquakes.
2), the low temperature resistance of HDPE pipe, strong ductility,
not easy to be brittle, can resist the impact of extremely cold
weather, such as northern China.
3. Wear resistance
The high polymer composition of HDPE pipe is the main reason for
its high wear resistance. The wear resistance is even higher than
that of most metals, and the self-lubrication is good. It is an
ideal pipe.
Details




Application
The materials used in HDPE pipes are mainly polyvinyl chloride (PVC), polyethylene (PE) and polypropylene (PP). Compared with other plastic pipes (such as PVC), high-density polyethylene (HDPE) pipes have the characteristics of low density, good toughness, corrosion resistance, good insulation performance, easy construction and installation, and are widely used in municipal and building water supply and drainage, gas , heating and heating, wire and cable threading, agricultural water-saving irrigation and other fields.
Certificate


Company Profile
High Mountain Pipe Industry is a high-tech enterprise integrating
production and sales of sewage treatment equipment and municipal
water supply and drainage pipelines. With a long-term vision and
taking advantage of the background of Internet big data, we rely on
our own production technology strength to continuously explore the
transformation and upgrading strategies of traditional production
enterprises, and become a new domestic "Internet + pipeline
building material" production enterprise! The company integrates
product development, production and sales.
The company takes "sunshine trading" as its corporate purpose;
relying on a large number of production equipment, scientific
production formula, staff team, and strong production force, it is
committed to improving the quality of China's pipeline building
materials, making prices more affordable, and making transactions
more transparent.


FAQ
Q: Is the price on this page correct?
A: The listed prices are for reference only, please contact us
directly for the latest prices.
Q: Is it possible to use the label or packaging I specified?
A: Yes. If necessary, we would like to use labels or packaging
according to your requirements.
Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.
|
