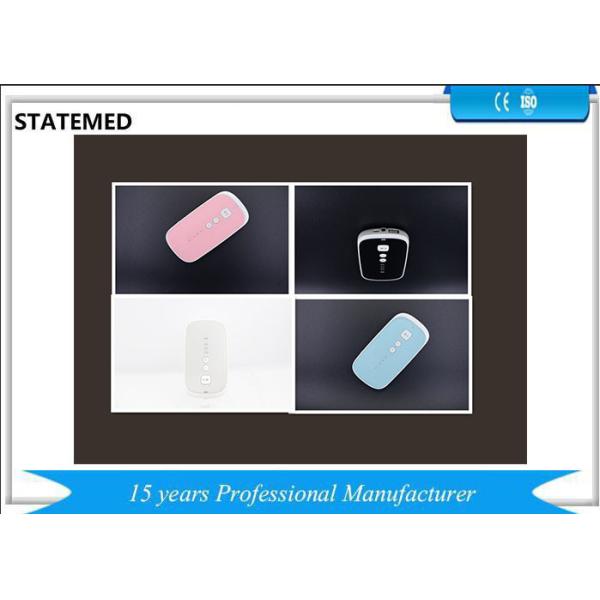

Pink Intermediate Frequency Mini Pulse Massager , Multifunction Electric Pulse Back Massager

Categories	Intermediate Frequency Massager
Brand Name:	STATEMED
Model Number:	STT17-IFM64F
Certification:	CE, ISO, FCC, ROSH
Place of Origin:	CHINA
MOQ:	1 SET
Price:	competitive
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	4000 sets per month
Delivery Time:	10 working days
Packaging Details:	carton, wooden case
Certificate:	CE, ISO, FCC, ROSH
Weight:	150g
The operating frequency:	1 kHz ~ 6 kHz, tolerance ± 10%
The modulation frequency range:	within the range of 0-150Hz
Battery type:	Lithium-ion batteries
Batteries capacity:	3.6V / 3500mAh (TYP)

Contact Now

Add to Cart

Company Info.

State (Beijing) Medical Technology Co., Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Four Colors Black White Blue Pink Intermediate Frequency Massager

Main technical parameters

Battery type	Lithium-ion batteries
Use of environment	temperature 10 ℃ ~ 30 ℃, relative humidity ≤30% ~ 70%
Dimensions	136 × 70 × 17cm (length × width × height)
Weight of the machine	150 g
Structure	mainly consists of the host, the electrode sheet, the output cable and the connection cable
Input power	≤5W
Batteries capacity	3.6V / 3500mAh (TYP)
The operating frequency	1 kHz ~ 6 kHz, tolerance ± 10%
The modulation frequency range	within the range of 0-150Hz
Amplitude modulation	offers 0%, 33%, 60% and 100% of the four kinds of amplitude modulation, tolerance of ± 5%
The fundamental frequency and waveform	square wave, frequency of 1 kHz ~ 6 kHz
Frequency and waveform modulation wave	a squarewave, sharp wave, triangle wave, exponential wave, saw tooth, sine wave, continuous wave, trapezoidal wave, wave the fan, fan ladder wave and combinations thereof
The output electric current	in 500Ω load resistor, the output current does not exceed the following limits: frequency ≤1500Hz, to 80mA (rms), frequency> 1500Hz to 100mA(rms)
The output current stability	load resistance of 500Ω, the output current change rate should not exceed 10%
The output current regulation mode	with keys increment, decrement (50 files, each file 1mA)
Continuous working time	every 1000mAh, many massage time 40min
Charging function	with internal rechargeable battery,and a charging port, charging voltage 5V, tolerance of ± 5%

Fault handling

Fault Condition	Solutions
Cannot turn on	1,confirm the power button； 2,check whether the batteries have power；
Pause suddenly during massage	1,check whether the output cable connect correctly with electrodes； 2,check whether the batteries have power；
Stimulation weakens or tingling feeling happens	1,check if there is gap between electrodes and the skin; 2,check if the surface of the electrodes is clean; 3,check if there is oil on the skin surface；
Skin turns red, itching or tingling at the massaging area	Stop massaging if there is obvious tingling feeling or burning. Ask doctors for help if severe allergic happens.

Please contact us if the machine fault can not be solved.
Please do not separate or maintain the machine personally.
The machine does not restrict ‘use-by’ date. The guarantee time shall be one year from the purchase time (except the man made fault).
